14
ENGLISH
Basic installation
Landscape scene
Portrait scene
<Fr
ont>
<Fr
ont>
<Fr
ont>
<Rear>
<Rear>
<Rear>

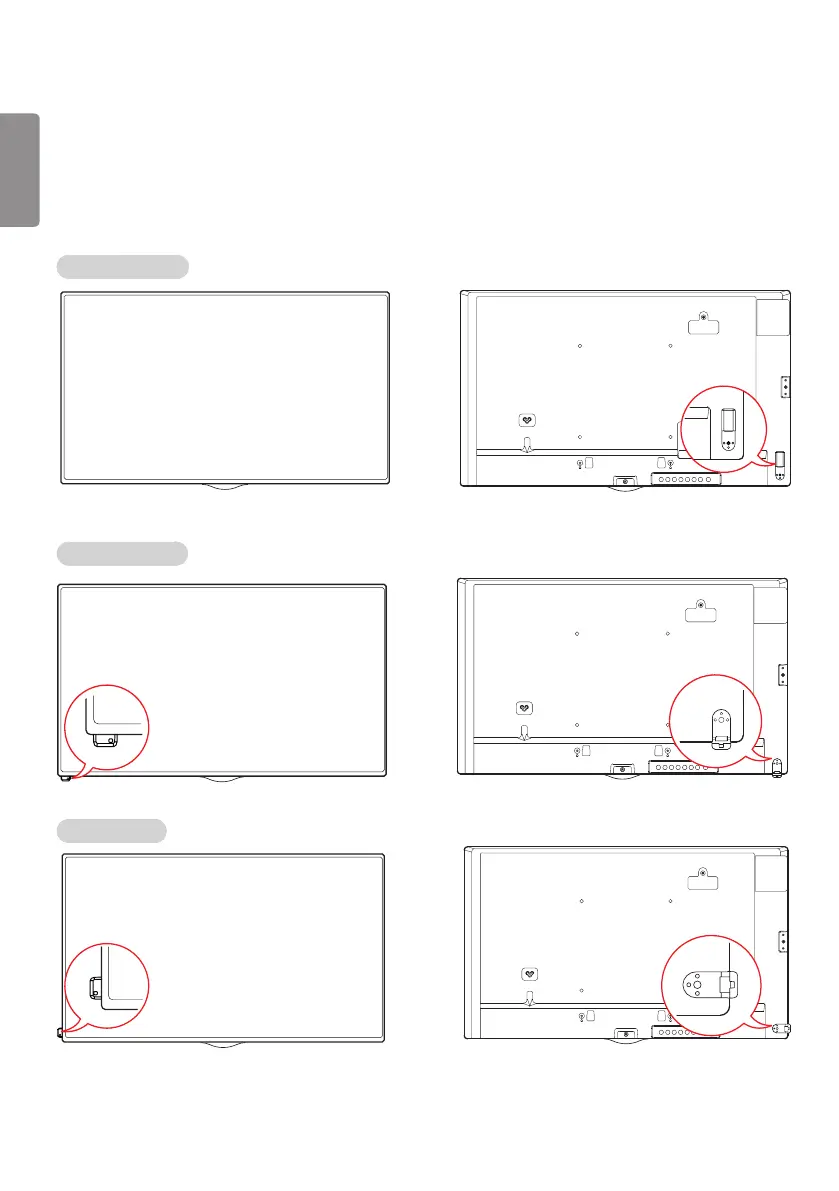

Connecting the IR Sensor
When you connect the cable to the product, the fea
ture for rec
eiving remote contr
ol signals is activated. Rotate
the IR sensor according to the scr
een orientation (Landscape/Portrait).
-
The image may be diff
erent accor
ding to the model.
13
15
Table of Contents
Table of Contents
2
Important Precautions
3
Electrical Power Related Precautions
3
Precautions in Installing the Product
4
Precautions in Moving the Product
4
Precautions in Using/Cleaning the Product
5
On Disposal (Only, Hg Lamp Used LCD Monitor)
5
Licenses
6
Assembly and Preparation
7
Optional Accessories
8
Parts and Buttons
10
Assembling the Memory Cover
10
Connecting the Stand
11
Connecting the Speakers
12
Connecting the IR Sensor
14
Portrait Layout
15
Attaching and Removing the LG Logo Bracket
16
Installing on a Wall
17
Remote Control
19
Making Connections
21
Connecting to a PC
21
External Device Connection
21
Using the Input List
22
Troubleshooting
23
Product Specifications
26
User Guide Lg Digital Signage
35
Main Menu Settings
36
Picture Settings
36
User Settings
36
Sound Settings
40
Network Settings
42
General Settings
45
Connecting USB/SD Storage Devices
48
Entertainment
48
Using Multimedia Features
48
Photo & Video
51
Supported Photo & Video Files
51
Viewing Photos and Videos
53
Export
54
Scheduled Playing
54
Delete
55
Music
55
Playing Music
55
Supported Music Files
55
Information
56
Supersign Contents
56
Local Contents Scheduler
57
Setting a Scheduled Playing
57
Configuring Widi (Wireless Display)
58
Screen Share
58
Group Manager
59
Leveler Tool
61
Control Manager
62
How to Use
63
Follow the Steps below if You Encounter Issues
64
Multi-Screen
67
PICTURE ID Settings
68
Ir Codes
69
Connecting the Cable
71
To Control Multiple Products
71
Communication Parameter
72
Command Reference List
73
[Local Key Operation]
74
Transmission/Reception Protocol
77
Current Temperature] D N
83
Product Serial Number] F y
84
Software Version] F Z
84
Time Elapsed] D L
84
White Balance Blue Gain] J O
84
White Balance Green Gain] J N
84
White Balance Green Offset] S y
84
White Balance Red Gain] J M
84
White Balance Red Offset] S X
84
Check Tile Mode] D Z
85
Screen Off] K D
85
Tile ID] D I
85
Tile Mode] D D
85
White Balance Blue Offset] S Z
85
DPM Select] F J
86
Fail over Select] M I
86
Natural Mode] D J
86
Power on Delay] F H
86
Remote Control]/[Local Key Lock] K M
86
DATA (Hexadecimal)
87
Fail over Input Select] M J
87
IR Operation]
87
Local Key Operation]
87
Daylight Saving Time] S
88
ISM Method] J
89
Network Settings] S
89
PM Mode] S
89
Auto-Adjustment] J U
90
Power on Status]
90
Wake on LAN] F W
90
Contents Sync]
91
Intelligent Auto]
91
OSD Portrait Mode]
91
Pivot Mode]
91
Reset to Initial Settings]
91
Time Sync] S N
91
Content Rotation] S N
92
DPM Wake up Control] S N, 0B 00 to
92
LAN Daisy Chain] S N
92
Scan Inversion] S N
92
Studio Mode] S N
92
Aspect Ratio] ([Rotation]) S N
93
Easy Brightness Control Mode] S M
93
Easy Brightness Control Schedule] S S
93
Aspect Ratio] ([Multiscreen]) X D
94
Screen Mute] ([Multiscreen]) X E
94
Screen off Always] S N, 0D
94
Screen Video Freeze] K X
94
Holiday Schedule Mode] S N, 1A
95
Holiday Schedule] S N, 1B
95
Justscan Toggle] S N
95
Wireless Wake on LAN] S N
95
BLU Maintenance] M
96
Dual Screen Off] S N
96
Fan Control] D O
96
Fan Failure Check] D W
96
Luminance Value Read] M U
96
Hybrid Mode] S N
97
OSD Display] K L
97
Proximity Sensitivity] S N
97
Return Interval] S N
97
Semi-Transparent Brightness] S N
97
T 93 [Power Indicator Settings] F O
97
Analog Signage BLU Setting S N, C2
98
HDMI IT Contents] S N
98
Model Name Check] F V
98
Upnp Mode] S N, 9C
98
Analog Signage BLU On/Off
99
BLU Manual On/Off S N, C4
99
S N, C3
99
Silent Fan Mode S N, C7
99
Installation Manual Lg Digital Signage
102
Accessing Installation Menu
104
Installation Menu
105
LAN Daisy Chain
105
Power on Status
105
Signage Setup
105
Wake on LAN
105
Power off Management
106
Rotation
108
Baudrate (9600/115200)
109
Beacon
109
Check Screen
110
Digital Audio Input
110
Power on Delay (0 ~ 250)
110
Speaker
110
USB Auto Playback
110
Interface Selection
111
Multi Display Mode
111
OPS Power Control
111
Power Indicator
111
Sync Mode
112
HDMI IT Contents
113
Intelligent Auto
113
Studio Mode
113
White Balance
113
Application
114
Web Browser
114
Status Message
115
Easy Brightness Control
116
Holiday Schedule
116
Local Dimming
116
SIMPLINK Setup
116
Analog Signage BLU Setting
117
Crestron
117
Enterprise Settings
117
No Signal Image
117
Factory Reset
118
Quiet Mode (Fan OFF)
118
Signage 365 Care
118
Guide to Using Content Rotation
119
Logo Image Download
121
Password Change
121
Receive from USB
121
Send to USB
121
USB Cloning
121
Fail over
122
Manual
122
ISM Method
123
Mode
123
End Time
124
Repeat
124
Repeat Day
124
Start Time
124
Wait
124
Action Cycle
125
Bar Color
125
Bar Image
125
Direction
125
Bar Image Download
126
How to Reset or Delete Downloaded Bar
126
User Image Download
126
User Video Download
126
Control Server IP
127
Control Server IP Type
127
Control Server Port
127
Port Number
127
Secured Connection
127
Server
127
Server IP
127
Server IP Type
127
Server Status
127
Set Automatically
127
IR Operation
128
Local Key Operation
128
Lock Mode
128
Osd
128
Reset to Initial Settings
128
Usb
128
Wi-Fi
128
