4. Device Concept

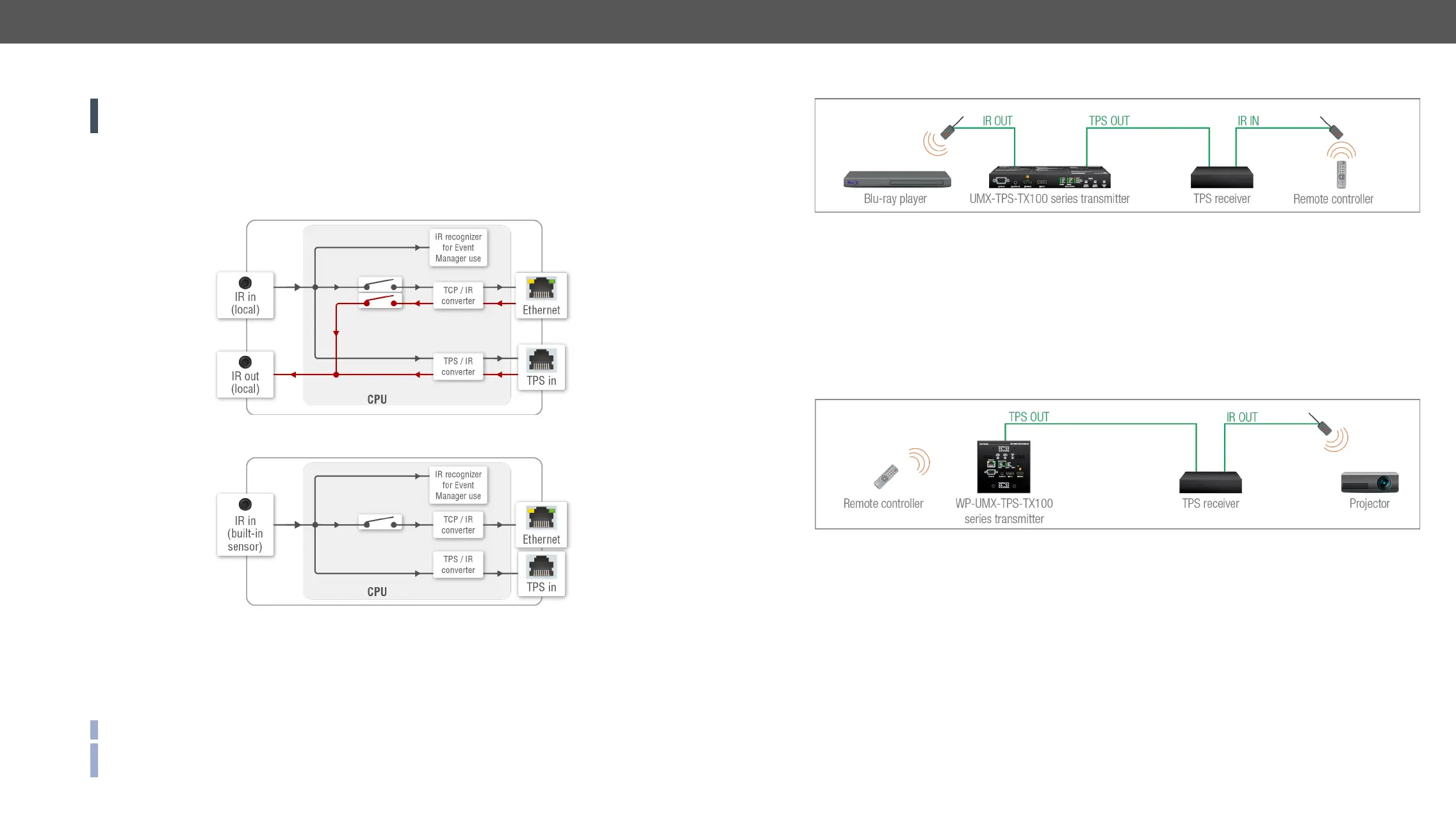

IR Signal Transmission - Example 1
The Concept
An IR detector is attached to the Infrared input port of the TPS receiver and IR signals are sent by the Remote
controller. The TPS Receiver is connected to an UMX-TPS-TX100 series transmitter built with IR output port
via TPS line.
Settings:
Set the TPS IR link of the Transmitter to Transparent mode. IR signals are received over the local IR input port
of the Receiver by the Remote controller. The signals transmitted further over the TPS line to the Transmitter
which can control the Blu-ray player via an IR emitter.
IR Signal Transmission - Example 2
The Concept
The built-in IR detectorRemote controller. The signal
is transmitted via the TPS line to the TPS receiver. In this way the Remote controller can control the Projector
via the Wallplate transmitter.
IR Interface
ATTENTION! For the complete usage attach an IR emitter unit to the IR OUT and an IR detector unit to the
IR IN connectors.
Technical Background
The Infrared signal transmission is similar to the serial data communication. The transmitter contains
pronto HEX format in both cases.
Block diagram of the IR interface - UMX-TPS-TX100 series transmitters
Block diagram of the IR interface - WP/FP-UMX-TPS-TX100 series transmitters
The most trivial usage of the IR interface is the transparent mode: signal received or sent on local IR ports
are transmitted directly on the TPS IR link port and vice versa. Beside of this there is an IR recognizer in the
device where you can assign actions in Event Manager for. The third option is the command injection mode
INFO: Infra Tab section.
INFO:
section.
