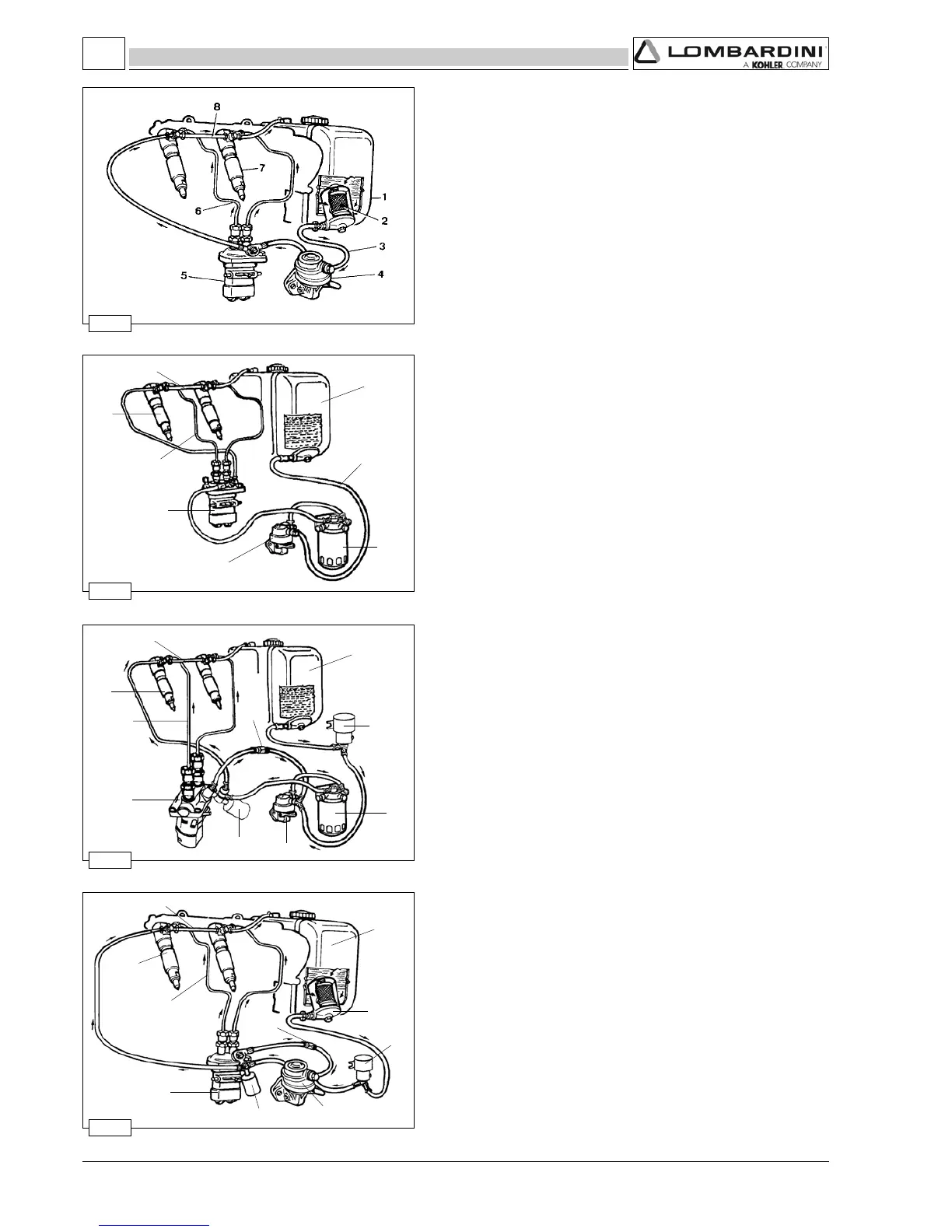

FUEL FEEDING / INJECTION CIRCUIT
Fuel feeding / injection circuit with fuel filter inside the fuel tank
Components:
1 Fuel tank
2 Fuel filter
3 Fuel feeding tube
4 Fuel lift pump
5 lnjection pump
6 High-pressure pipe
7 Injector
8 Injector exhaust pipe
Fuel feeding / injection circuit with external fuel filter
Components:
1 Fuel tank
2 Fuel feeding tube
3 Fuel filter
4 Fuel lift pump
5 lnjection pump
6 High-pressure pipe
7 Injector
8 Injector exhaust pipe
Fuel feeding / injection circuit with external fuel filter and
double solenoid valve
Components:
1 Fuel tank
2 Solenoid valve
3 Fuel filter
4 Fuel lift pump
5 Solenoid valve
6 lnjection pump
7 High-pressure pipe
8 Injector
9 Injector exhaust pipe
10 Non-return valve
Fuel feeding / injection circuit with fuel filter inside the fuel tank
and double solenoid valve
Components:
1 Fuel tank
2 Fuel filter
3 Solenoid valve
4 Fuel lift pump
5 Solenoid valve
6 lnjection pump
7 High-pressure pipe
8 Injector
9 Injector exhaust pipe
10 Non-return valve
