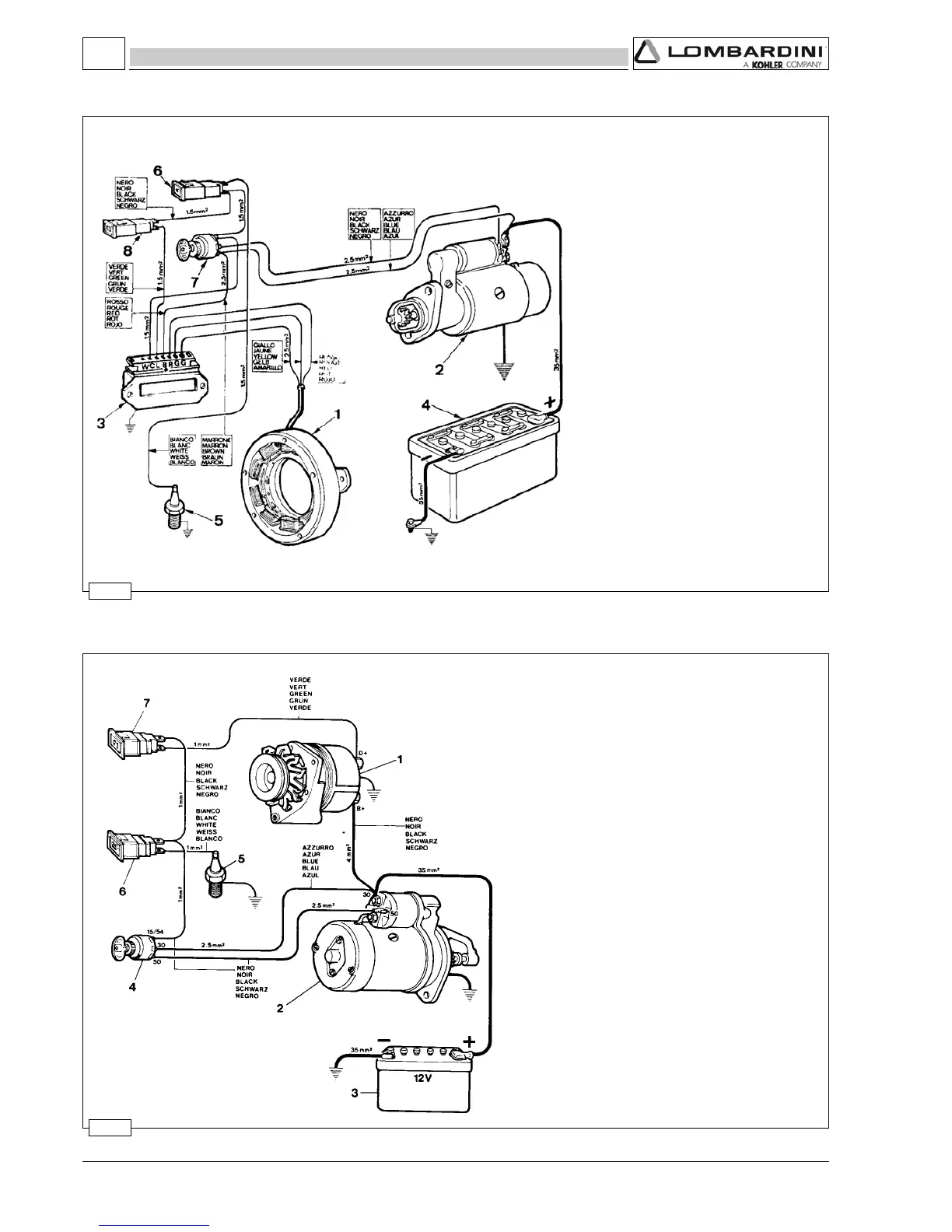

Electric starting layout with internal alternator
ELECTRIC SYSTEM
Electrical starting layout with external alternator
Components:
1 Al te rn at or
2 Starting motor
3 Voltage regulator
4 Battery
5 Pressure switch
6 Oil pressure warning light
7 Key switch
8 Battery charging light
Note: Battery, which is not supplied by
Lombardini, should feature 12 V
voltage and capacity not below 70
Ah.
Components:
1 A l t er n a t o r
2 Starting motor
3 Battery
4 Key switch
5 Pressure switch
6 Oil pressure warning light
7 Battery charging light
Note: Battery, which is not supplied by
Lombardini, should feature 12 V
voltage and capacity not below 70
Ah.
