9LD Workshop Manual _ cod. 1.5302.286 - 3° ed_rev. 02
149
150
151
7

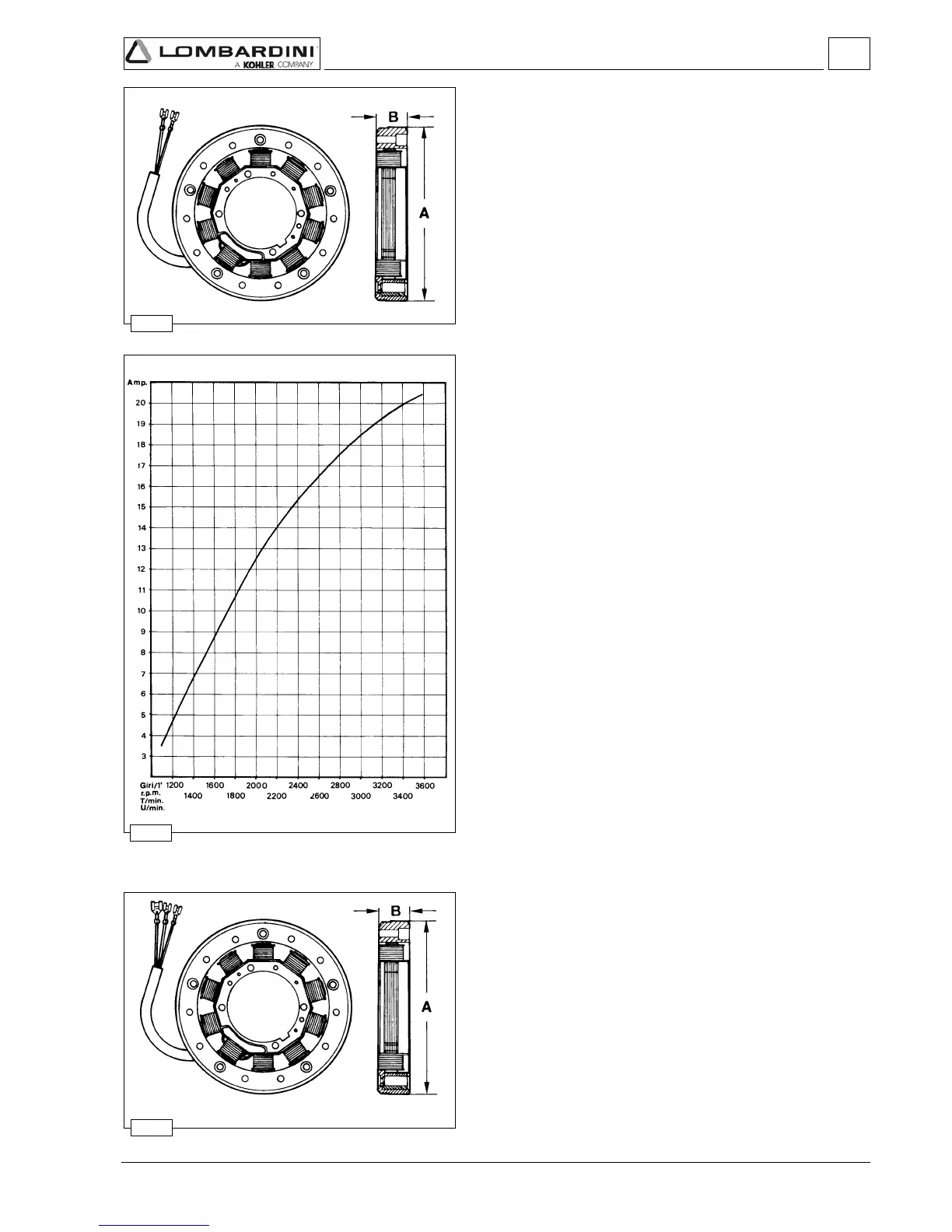

ALTERNATOR
Alternator - 12 V, 18A
Features a fixed armature winding mounted on the air shroud bracket.
The rotating permanent magnet inductor is located in the fan spindle.
Only the two yellow cables are at output.
Dimensions (mm):
A = 158.80÷159.20
B = 27.50÷27.90
Note: Clearance between armature wìnding and inductor (air gap) must
b 0.48÷0.60 mm.
Alternator battery charger curve (12 V, 18 A)
This curve is obtained at +25°C with 12.5 V battery voltage.
Alternator - 24 V, 6 A
Features a fixed armature winding mounted on the air shroud bracket.
The rotating permanent magnet inductor is located in the fan spindle.
There are the two yellow cables and one red cable at output.
Dimensions (mm):
A = 158.80÷159.20
B = 27.50÷27.90
Note: Clearance between armature winding and inductor (air gap) should
be 0.48÷0.60 mm.
Electric System
