- 73 -
9LD Workshop Manual _ cod. 1.5302.286 - 3° ed_rev. 02
7
167
A
B
C
Electric System

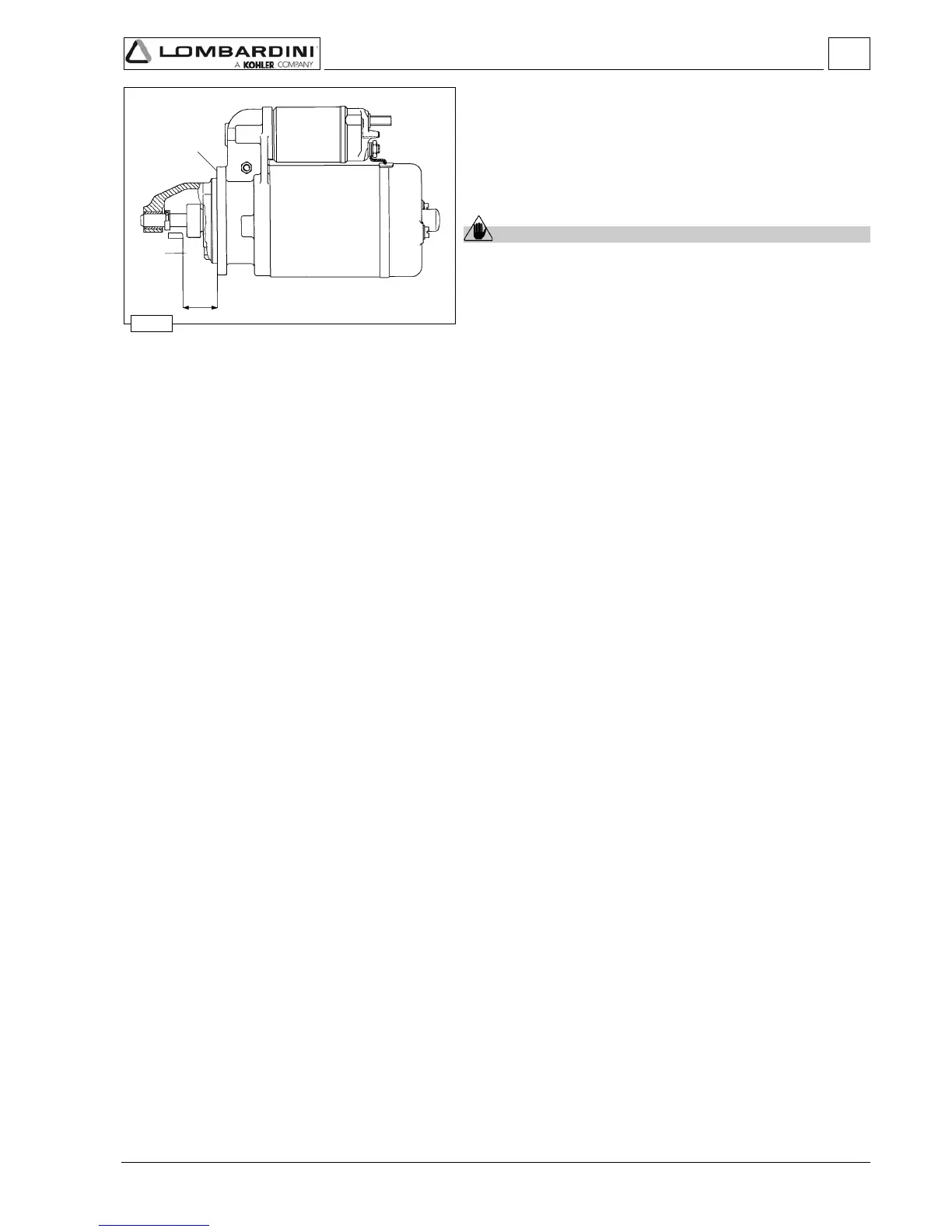

Starting motor type Bosch DW (R) 12 V, 1.7 kW
RH direction of rotation.
A = 29.5÷31.5 mm
B = Ring gear plane
C = Flange plane
Caution – Warning
Flywheel should not project from ring gear plane B.
Characteristic curves of the 24 V 1.6 kW starting motor
The curves have been measured at a 20°C temperature with an 88 Ah battery.
V = Voltage to the motor terminals in Volt
P = Power in kW
C = Torque in N/m
N = Motor speed in rpm
J (A) = Absorbed current in Amperes.
