- 64 -
9LD Workshop Manual _ cod. 1.5302.286 - 3° ed_rev. 02
142
6
143
Fuel system
Size S Nozzle, only for standard engines
Features:
Hole number and diameter ............... 4x0.28 mm.
Jet angles ........................................... 160°.
Needle valve elevation ......................... 0.20 ÷ 0.22 mm
Clean nozzle tip with a brass brush.
Check that holes are not obstructed using a mandrel with steel
wìre with 0.28 mm diam.
When refitting tighten ring nut at 60 Nm.

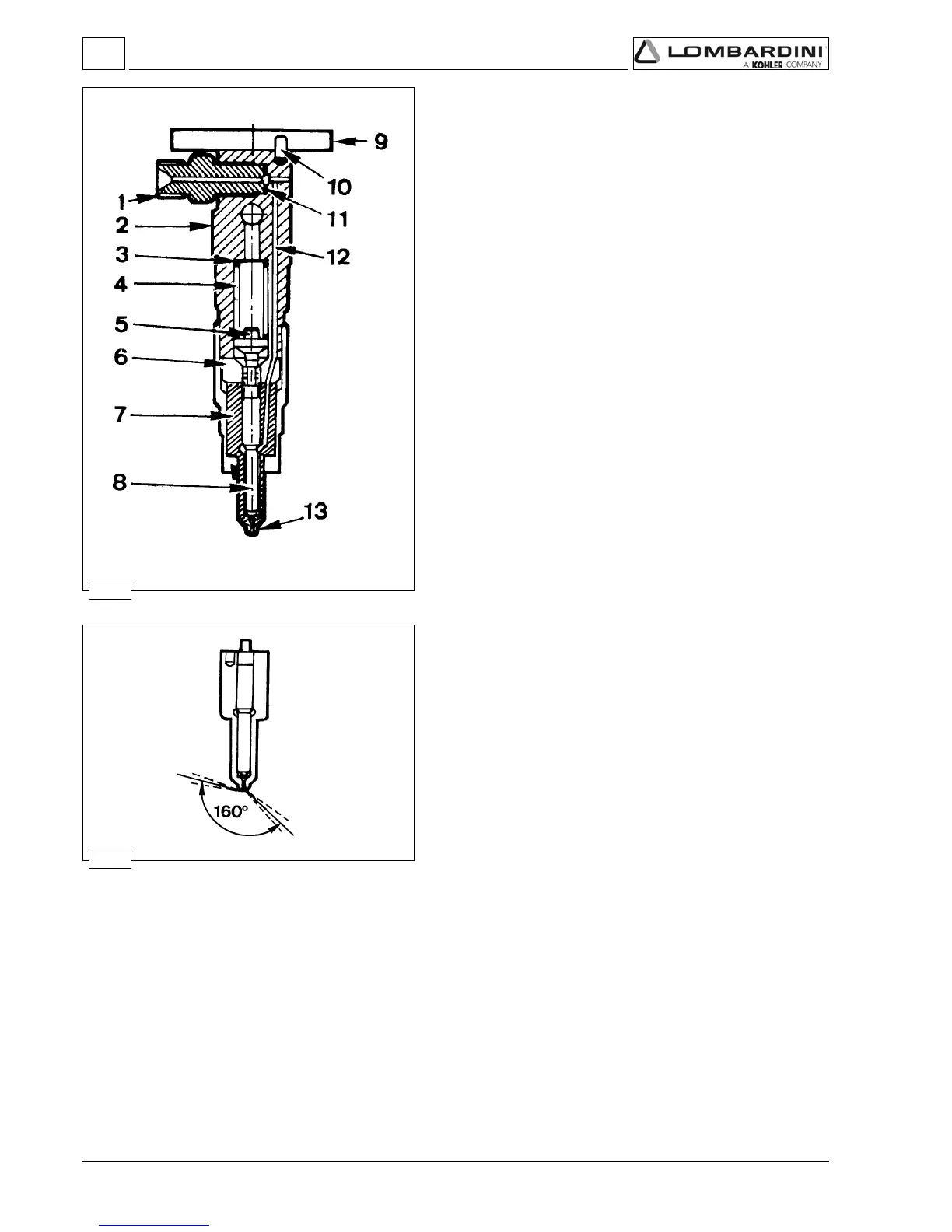

INJECTOR
Size S Injector, only for standard engines
Components:
1 Intake fitting
2 Nozzle holder
3 Shim
4 Spring
5 Pressure rod
6 Intermediate flange
7 Nozzle
8 Needle valve
9 Fixing flange
10 Tap er pin
11 Gasket
12 System duct
13 Sump
