- 75 -
9LD Workshop Manual _ cod. 1.5302.286 - 3° ed_rev. 02
7
170
1
2

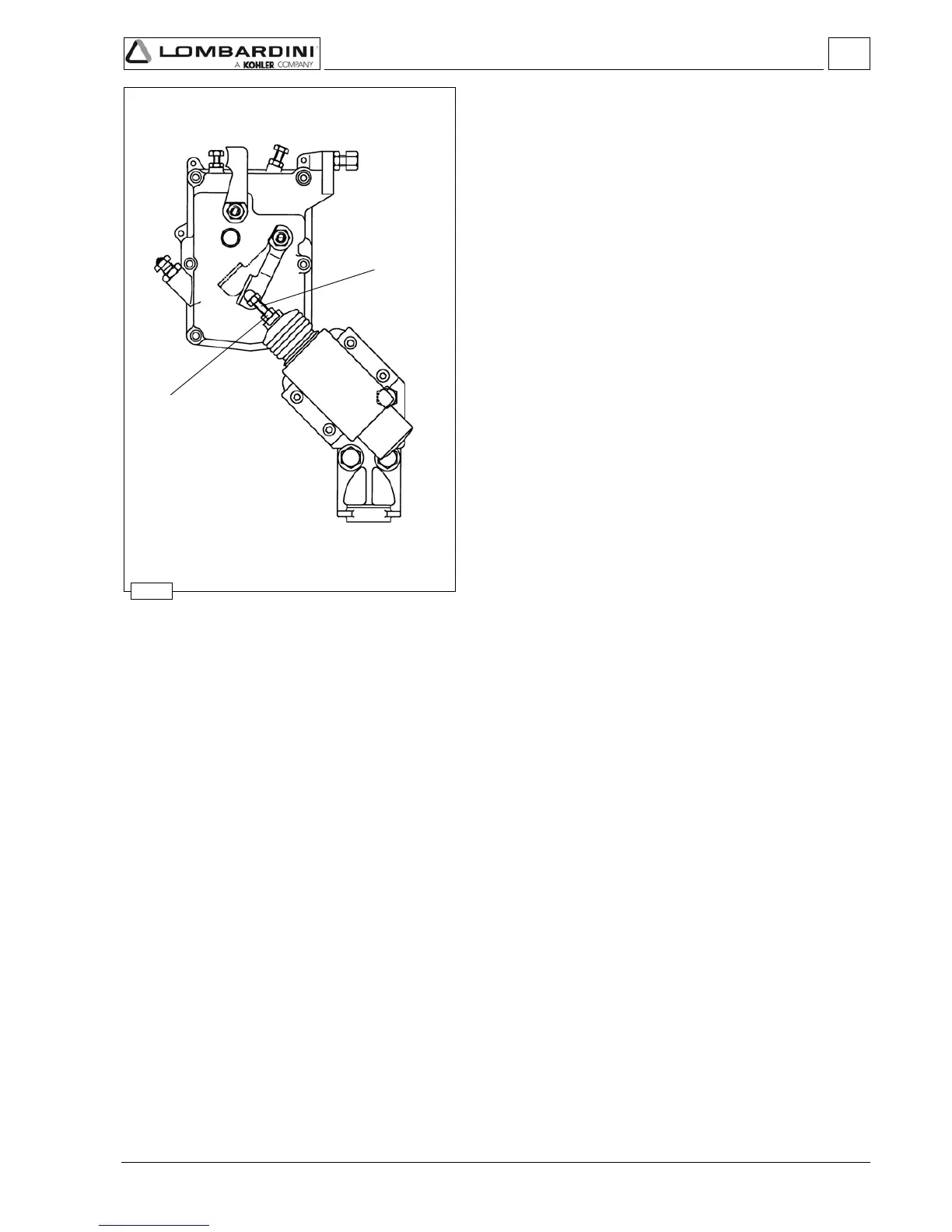

Direct stop electromagnet
Features:
Operating tension ............................................ 12V.
Power coil absorption ...................................... 41 A.
Hold coil absorption .......................................... 0.5 A.
Setting:
-Screw drive rod 1 to the end of the thread on the electromagnet
piston.
-Excite the electromagnet and leave the stop lever in normal
operation position.
-Bring drive rod 1 in contact with the stop lever and tighten lock nut
2.
Electric System
