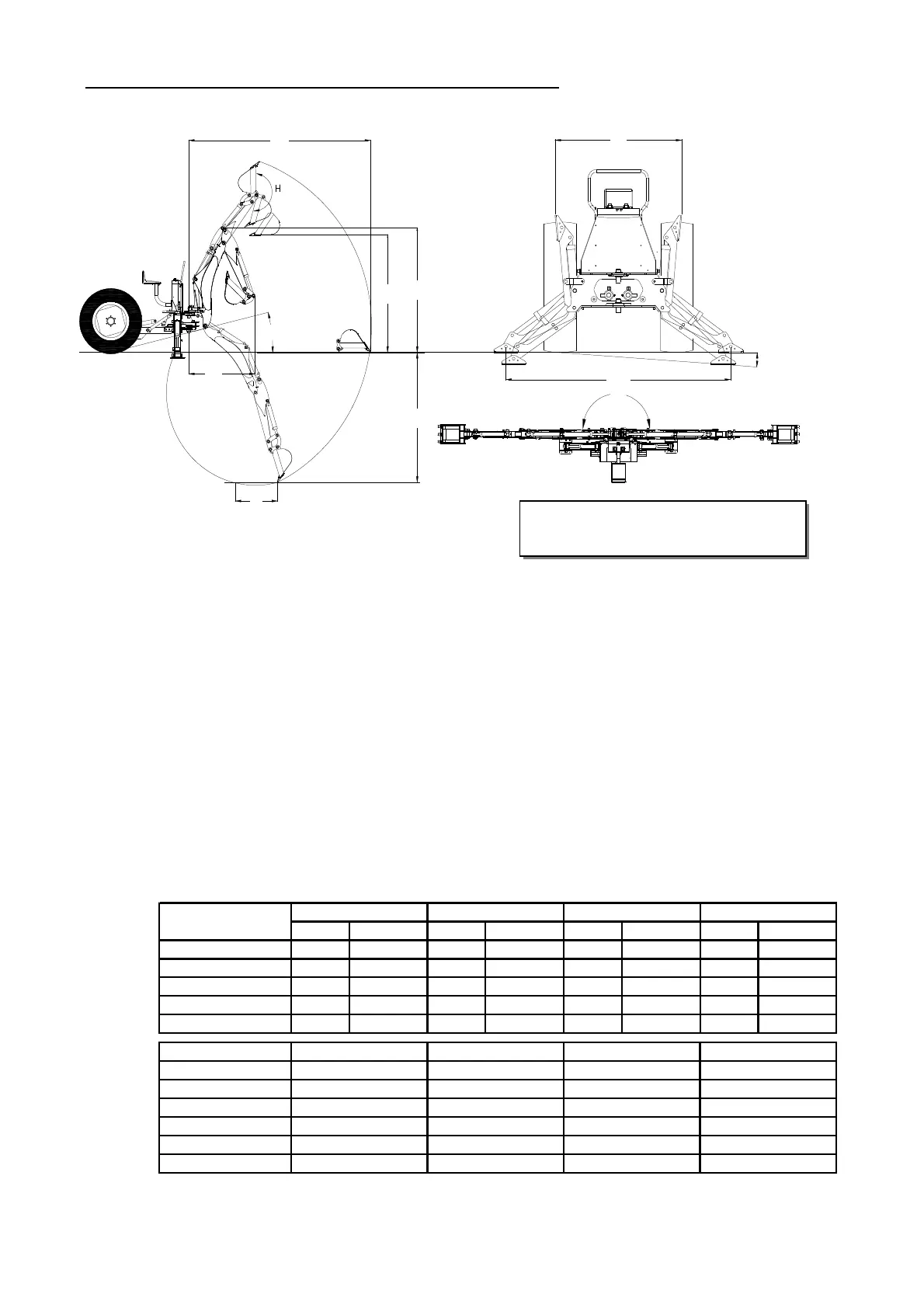

BACKHOE SPECIFICATIONS
Backhoe Model : LB1100
Tractor Model : S3010, G3033/G3033H, G3038/G3038H, XG3000series, XG3100series, XG3025
A. Digging Deth (two foot flat bottom) 1,940 mm 76.3 "
B. Reach from center line of Swing Pivot 2,875 mm 113.1 "
C. Loading Height (bucket at 60°) 1,615 mm 63.6 "
D. Maximum Leveling Angle 10 ° 10 °
E. Swing Arc 180 ° 180 °
F. Transport Height (maximum) 1,960 mm 77.2 "
G. Transport Overhang 1,105 mm 43.5 "
H. Bucket Rotation 180 ° 180 °
I. Stabilizer Spread (down position) 1,745 mm 68.7 "
J. Stabilizer Spread (up position) 1,180 mm 46.4 "
K. Angle of Departure 21 ° 21 °
Shipping Weight - Backhoe(without bucket) 470 ㎏ 1,036 lbs
Bucket Digging Force 1,278 ㎏ 2,817 lbs
Dipperstick Digging Force 793 ㎏ 1,748 lbs
Operating Pressure 170 bar 2,466 psi
Specifications may vary depending on tractor model, tire size and bucket used.
Specifications and design are
subject to change without prior
mm inch mm inch mm inch mm inch
Boom 70 2.756 586 23.071 384 15.118 40 1.575
Bucket 60 2.362 535 21.063 299 11.772 35 1.378
Dipperstick 60 2.362 524 20.630 303 11.929 35 1.378
Swing 60 2.362 398 15.669 223 8.780 35 1.378
Stabilizer 60 2.362 446 17.559 262 10.315 35 1.378
Buckets Bucket
9" Bucket
12" Bucket
16" Bucket
18" Bucket
24" Bucket
36" Bucket
6 2.78 cu. ft. 4.00 cu. ft. 114 lbs.
5 2.11 cu. ft. 2.82 cu. ft. 94 lbs.
46 lbs.
Rod DIA
Cylinder
Shipping Weight
Cylinders
Bore DIA Retracted Length Stroke
2.02 cu. ft.
1.38 cu. ft.
Heaped Capacity
3
3
Teeth Q'TY Struck Capacity
3 0.73 cu. ft. 0.87 cu. ft.
70 lbs.
1.24 cu. ft. 56 lbs.
1.76 cu. ft. 64 lbs.
4
1.01 cu. ft.
1.56 cu. ft.
C
G
F
B J
A
E
2'
K
I
D
- 9 -
