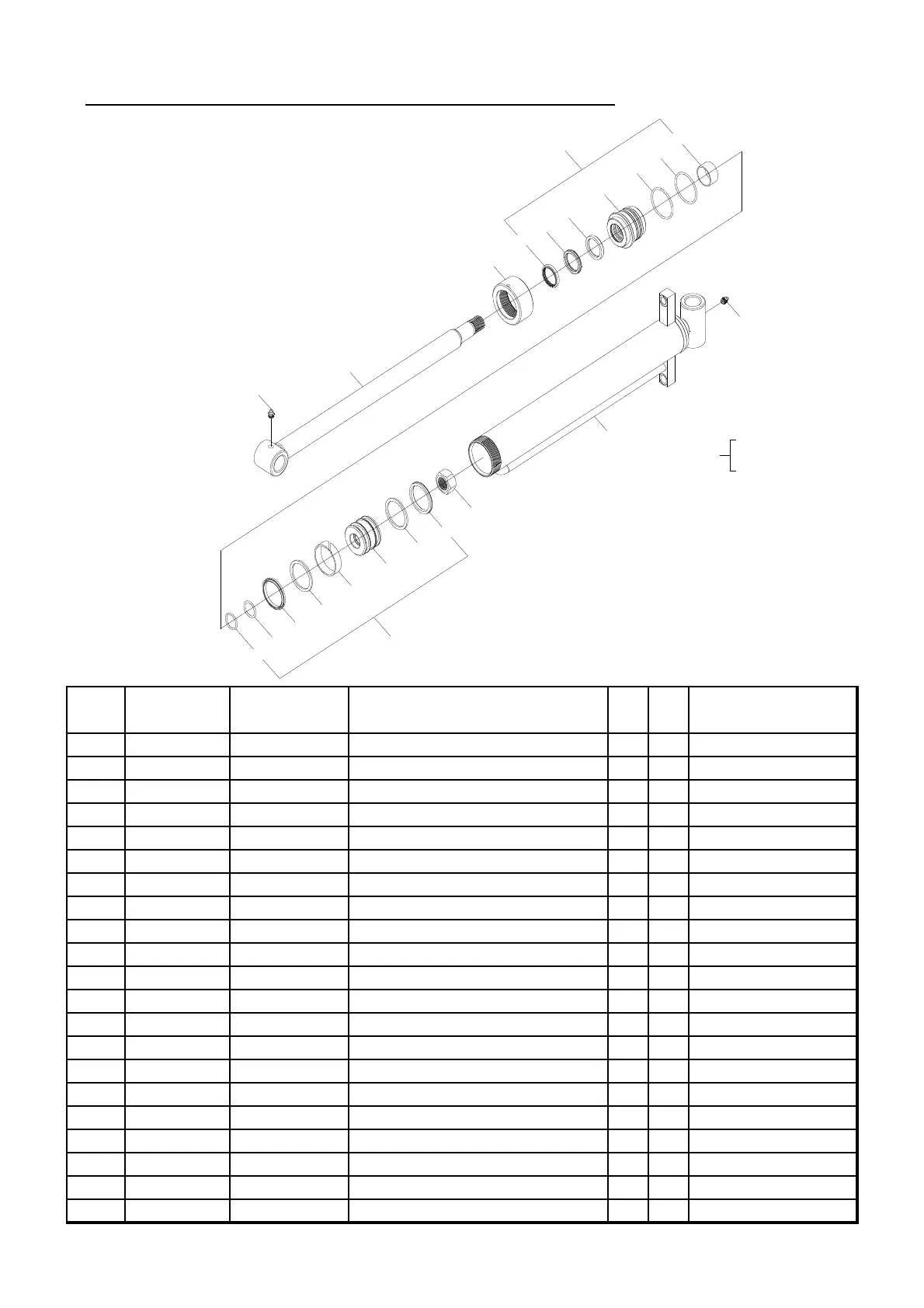

BUCKET CYLINDER ASSEMBLY
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40230928 226702 BUCKET CYLINDER ASSEMBLY 1
2 40230929 226702-R ROD ASS'Y 1
3 40228867 OC60-7037 CAP OUTER, ∅60-70-37L 1
4 40228827 IC60-3555 COVER INNER, ∅60×35×55L 1
5 40228766 DSSD-R035 DUST,SDR, 35×43×5/6.5 1
6 40228884 UPSK-Y035 PACKING U, SKY, SKY 35-45-6 1
7 40228880 UPIS-I035 PACKING U, ISI, 35-45-6 1
8 40228872 OR1B-G055 O-RING, 1BG55 2
9 40228768 DU03-5020 BUSHING DU, 35×39×20 1
10 40228876 PI60-2746 PISTON, ∅60-27-46L 1
11 40228870 OR1B-G027 O-RING, 1BG27 2
12 40228882 UPOS-I060 PACKING U, OSI, 60-50-6 2
13 40228878 TRBR-0060 RING-BACKUP, 60-50-3 2
14 40228886 WEWR-0060 WEARING, WR, 60-55-15 1
15 40228864 NTP0-U100-C NUT, 1-14UN 1
16 40230930 226702-T TUBE ASS'Y 1
17 40231134 GNIT-018I NIPPLE,GREASE, 1/8" 2
18 40228823 IA60-3555 SEAL KIT HEAD, NO.3~8 1
19 40228874 PA60-2746 PISTON ASS'Y, NO.9~13 1
18
19
17
~
2
1
2
17
3
16
15
12
13
10
14
13
12
11
11
5
6
7
4
8
8
9
17
