LS tractor LB1100 Series User Manual

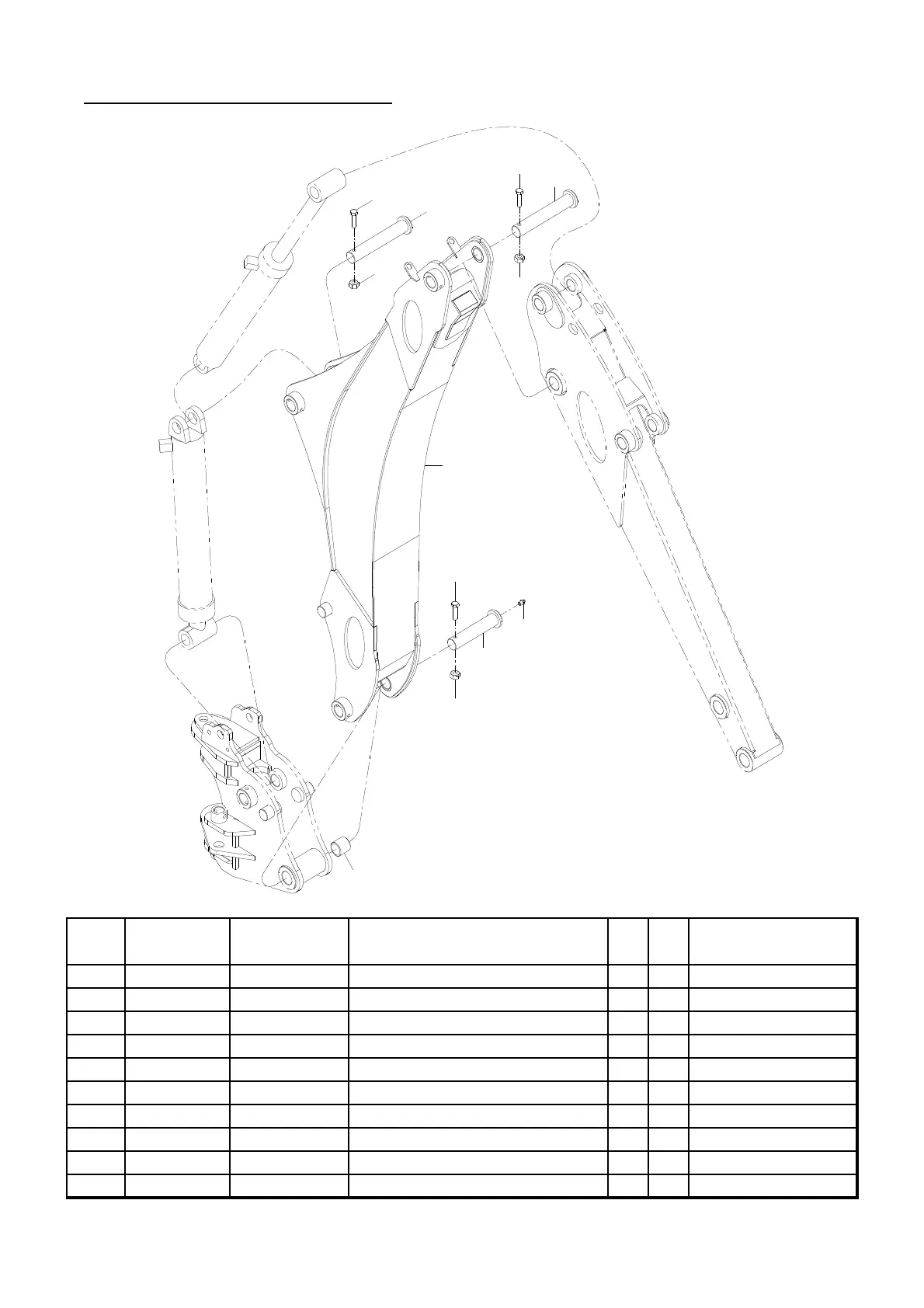

BOOM ASSEMBLY
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40231114 BT673-21100 BOOM ASS'Y 1
2 40231095 BT664-71700 PIN, ∅30-176.5L 1
3 40231096
BT664-71900-01 PIN, ∅40-185.5L 1
4 40231093
BT664-71500-01 PIN, ∅40-185.5L 1
5 40230880
10121-M0803-60
HEX.BOLT, M8-1.25P 60L 1
6 40230881
10121-M0803-70
HEX.BOLT, M8-1.25P 70L 2
7 40230896 1021N-M0803 NUT-SELFLOCK, M8-1.25P 3
8 40228707 802G0-T1900 NIPPLE,GREASE, 1/8" 1
9 40230979 83040-4440D BUSHING, 404440 2
9
2
7
6
1
5
7
7
4
8
6
3
- 40 -
