BACKHOE MOUNTING
CAUTION:
Backhoe should be mounted on the proper subframe assembly.
CAUTION:
Never store backhoe without bucket attached to the backhoe.
STEP 1.
Attach the loader midmount and mounting bracket to the tractor by fit the bolts and nuts.
STEP 2.
STEP 3.
STEP 4.
Set the parking brake of the tractor, Make sure the PTO switch is in the off position
Back tractor slowly toward the backhoe parallel to subframe assembly, until the couplers on the
backhoe hoses are able to connect with the hose kit hydraulic couplers or tractor auxiliary
couplers located rear of the tractor. Then, put the couplers to connected.
Store the subframe and subframe crosser horizontally with the loader midmount and mounting
bracket by the backhoe control lever. Also, matching these on same level

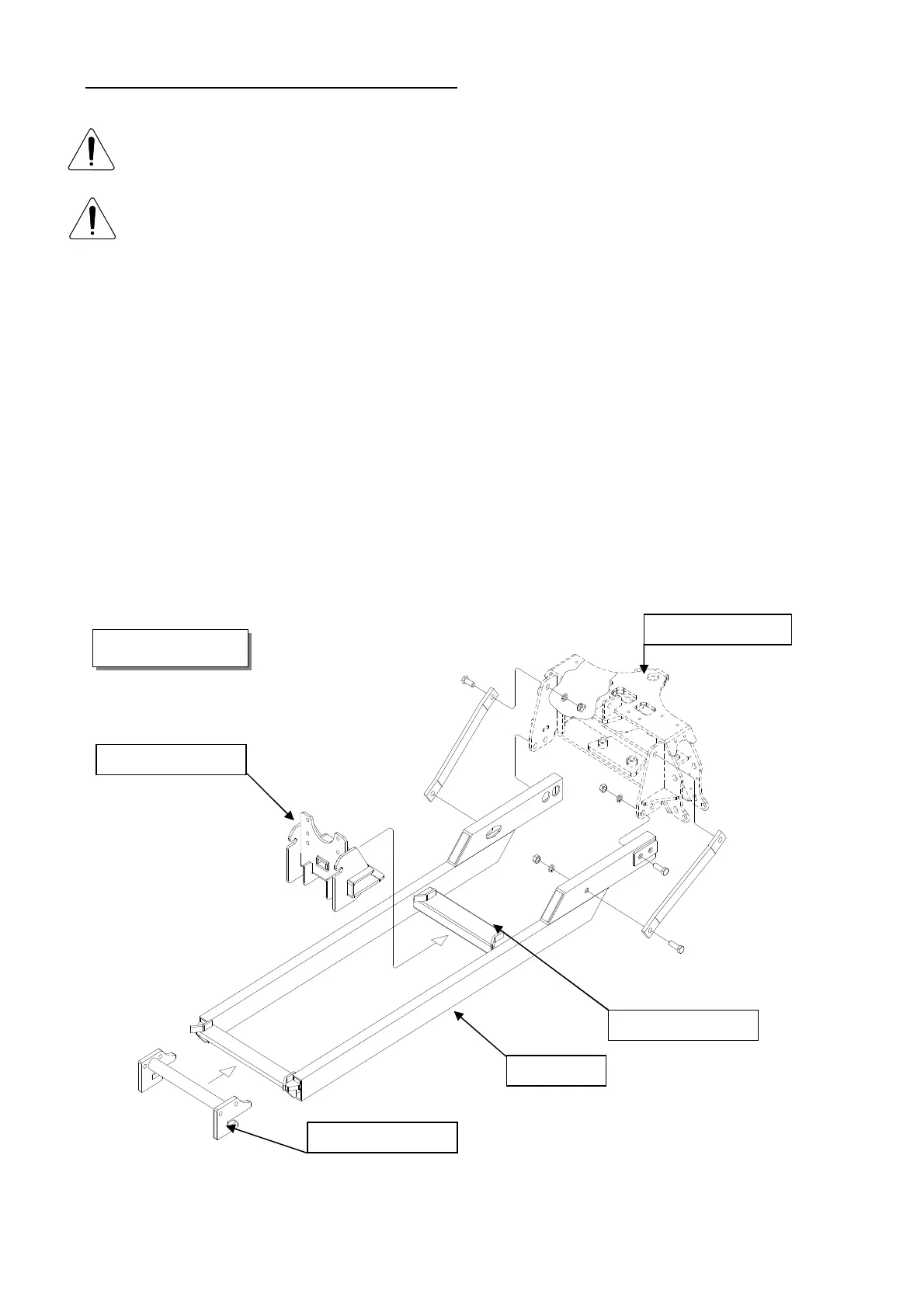

Cross Bar
Bracket Mid.
Subframe
Subframe
MODEL: S3010
Backhoe Frame
- 17 -
