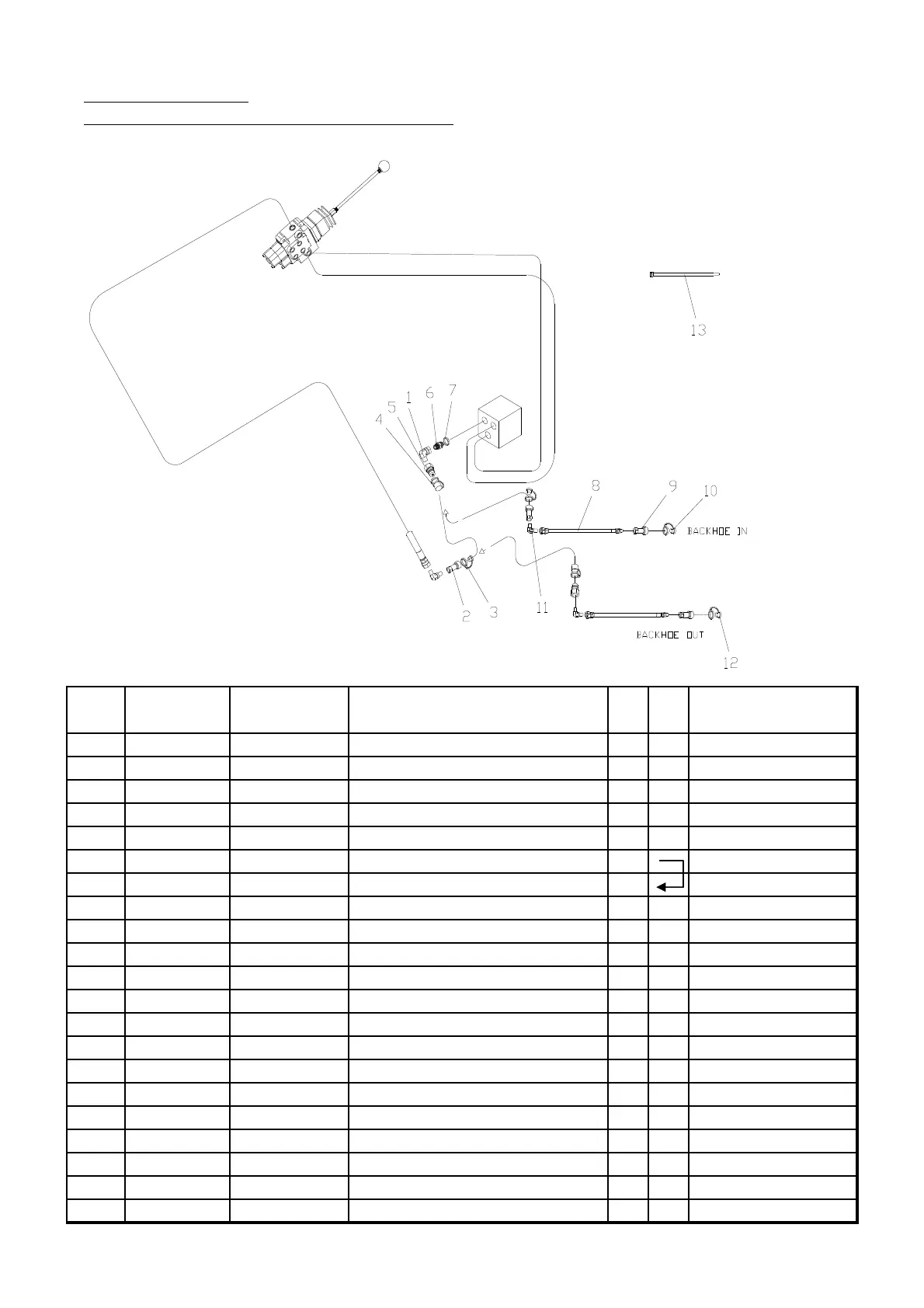

HOSE KIT
-G3033/G3033H, G3038/G3038H
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40230959 802L2-T46F9-4S
NIPPLE, PT3/8×3/4-16NUF, SWIVEL 90°
1
2 40228721 80420-T3360 QUICK COUPLER, PT3/8" FEMALE 2
3 40230676 8043W-03300 DUST-CAPS, 3/8" WHITE MALE 2
4 40228729 8044W-03300 DUST-CAP, 3/8" WHITE FEMALE 2
5 40228720 80410-T3360 QUICK COUPLER, PT3/8" MALE 2
6 40230961
802N0-T46P6-32
NIPPLE, PF1/2, O-RING×PT3/8 1 wrong spec.
40228718
802N2-P63F9-42
NIPPLE, PF1/2, O-RING×3/4-16UNF, HOSE
1
7 40228757 81301-BP018 O-RING, 1BP18 1
8 40230975 80620-02012
BACKHOE HOSE ASS'Y, 4(3/4-16UNF)-1(PT1/2) 1700L(3/8)
2
9 40230968 80420-T1130 QUICK COUPLER, PT1/2 FEMALE 2
10 40230970 8043W-01100 DUST-PLUG, 1/2" WHITE MALE 1
11 40228715
802L2-T46F9-40 NIPPLE, PT3/8×3/4-16UNF, HOSE 90˚ 3
12 40230969 8043K-01100 DUST-PLUG, 1/2" BLACK MALE 1
13 40228698 50120-M540K CABLE TIE, 540mm BLACK 5
40228758 99400-00001 TEFRON TAPE 1
BLOCK
T
P2
R
- 28 -
