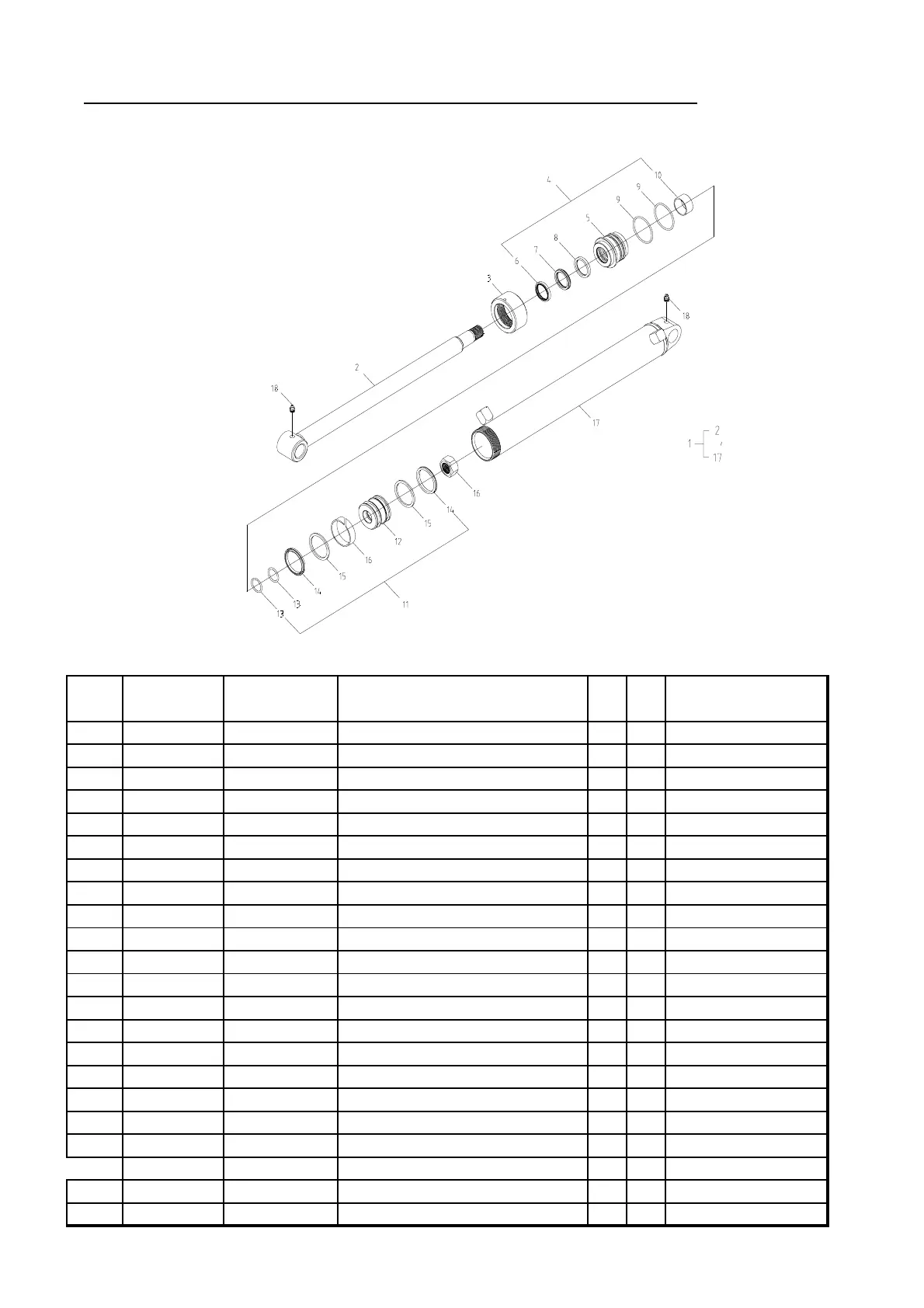

DIPPERSTICK CYLINDER ASSEMBLY
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40340572 22L101 DIPPERSTICK CYLINDER ASSEMBLY 1
2 40340573 22L101-R ROD ASS'Y 1
3 40340574 3AE-0006 CAP OUTER ∅60x∅75x37L 1
4 40340575 22L101-RC COVER INNER ASS'Y 1
5 40340576 3CN-065-002 COVER INNER ∅65x∅35x55L 1
6 40340577 9DT-SDR-035 Dust Seal SDR 35x43x5/6.5 1
7 40340578 9ST-SKY-035 U-Packing SKY 35x45x6 1
8 40340579 9ST-ISI-035 U-Packing ISI 35x45x6 1
9 40340580 9RB-G0600T O-Ring 1BG60 2
10 40340581 9BU-03530 DU-Bush 35x30 1
11 40340582 22L101-P PISTON ASS'Y 1
12 40340583 3PU-065-001 PISTON ∅65x∅27x46L 1
13 40340584 9ST-OSI-065 U-Packing OSI 65x55x6 2
14 40340585 9US-05506503 Back up-Ring 55x65x3 2
15 40340586 9RB-G0270T O-Ring 1BG27 2
16 40340587 9WH-06006515 Wear-Ring ∅60x∅65x15L 1
17 40340588 9NT-000002 NUT, 1-14UN 1
18 40340589 22L101-T TUBE ASS'Y 1
19 40231134 GNIT-018I NIPPLE,GREASE, 1/8" 2
- 53 -
