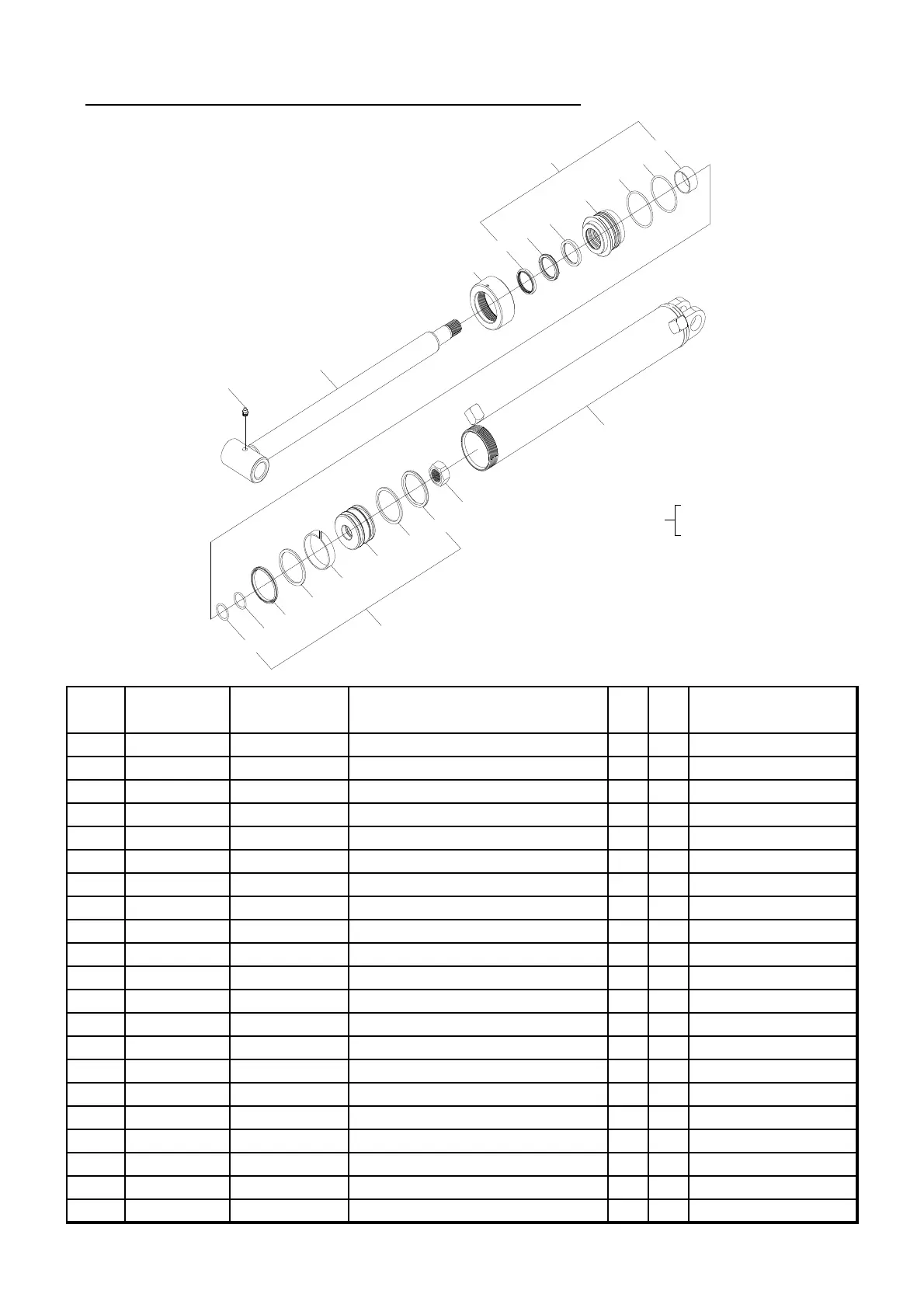

BOOM CYLINDER ASSEMBLY
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40230931 226703 BOOM CYLINDER ASSEMBLY 1
2 40230932 226703-R ROD ASS'Y 1
3 40230859 OC70-8037 CAP, OUTER, ∅70-80-37L 1
4 40230766 IC70-4055 COVER, INNER, ∅70-40-55L 1
5 40230710 DSSD-R040 DUST, SDR, 40-48-5/6.5 1
6 40230872 UPSK-Y040 PACKING, U, SKY, 40-50-6 1
7 40230869 UPIS-I040 PACKING, U, ISI, G55 1
8 40230861 OR1B-G065 O-RING, 1BG65, 1BG65 2
9 40230711 DU04-0020 BUSHING, DU, 40-44-20 1
10 40230865 PI70-2746 PISTION, ∅70-27-46L 1
11 40228870 OR1B-G027 O-RING, 1BG27 2
12 40230871 UPOS-I070 PACKING, U, OSI, 70-60-6 2
13 40230868 TRBR-0070 BACKUP RING, 70-60-3 2
14 40231139 WERY-T070 WEARING, RYT, 70-65-15 1
15 40228864 NTP0-U100-C NUT, 1-14UN 1
16 40230933 226703-T TUBE ASS'Y 1
17 40231134 GNIT-018I NIPPLE,GREASE, 1/8" 1
18 40230764 IA70-4055 SEAL KIT HEAD, NO.3~8 1
19 40230863 PA70-2746 SEAL KIT PISTON, NO.9~13 1
16
12
11
11
14
13
13
10
15
12
4
9
8
8
3
7
6
5
2
17
18
19
1
2
~
17
