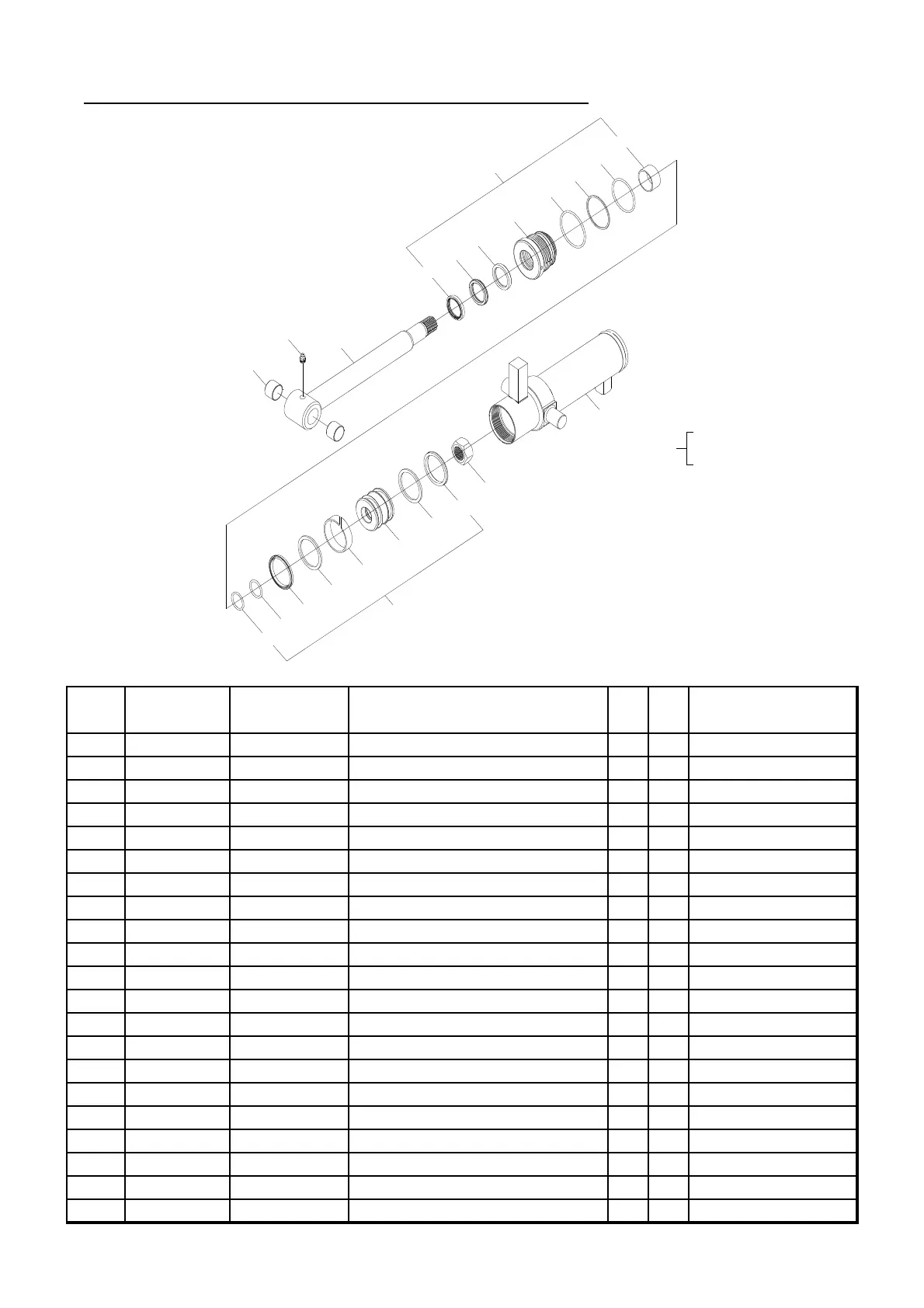

SWING CYLINDER ASSEMBLY
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40230918 225806 SWING CYLINDER ASSEMBLY 1
2 40230919 225806-R ROD ASS'Y 1
3 40231033 BC60-3555 HEAD, ∅60-35-55L 1
4 40228766 DSSD-R035 DUST,SDR, 35×43×5/6.5 1
5 40228884 UPSK-Y035 PACKING U, SKY, SKY 35-45-6 1
6 40228880 UPIS-I035 PACKING U, ISI, 35-45-6 1
7 40231137 TRBR-G055 BACKUP RING, G55 1
8 40231135 OR00-G060 O-RING, G60, G60 1
9 40228872 OR1B-G055 O-RING, 1BG55 1
10 40228768 DU03-5020 BUSHING DU, 35×39×20 1
11 40228876 PI60-2746 PISTON, ∅60-27-46L 1
12 40228870 OR1B-G027 O-RING, 1BG27 2
13 40228882 UPOS-I060 PACKING U, OSI, 60-50-6 2
14 40228878 TRBR-0060 RING-BACKUP, 60-50-3 2
15 40228886 WEWR-0060 WEARING, WR, 60-55-15 1
16 40228864 NTP0-U100-C NUT, 1-14UN 1
17 40230920 225806-T TUBE ASS'Y 1
18 40231134 GNIT-018I NIPPLE,GREASE, 1/8" 1
19 40231117 DU02-5020 BUSHING DU, 25-28-20 2
20 40230980 BA60-3555 SEAL KIT HEAD, NO.3~10 1
21 40231136 PA60-2746-S SEAL KIT PISTON, NO.11~15 1
20
21
1
2
~
19
2
18
5
4
6
3
7
8
9
10
12
12
13
14
15
11
14
16
13
17
19
