LS tractor LB1100 Series User Manual

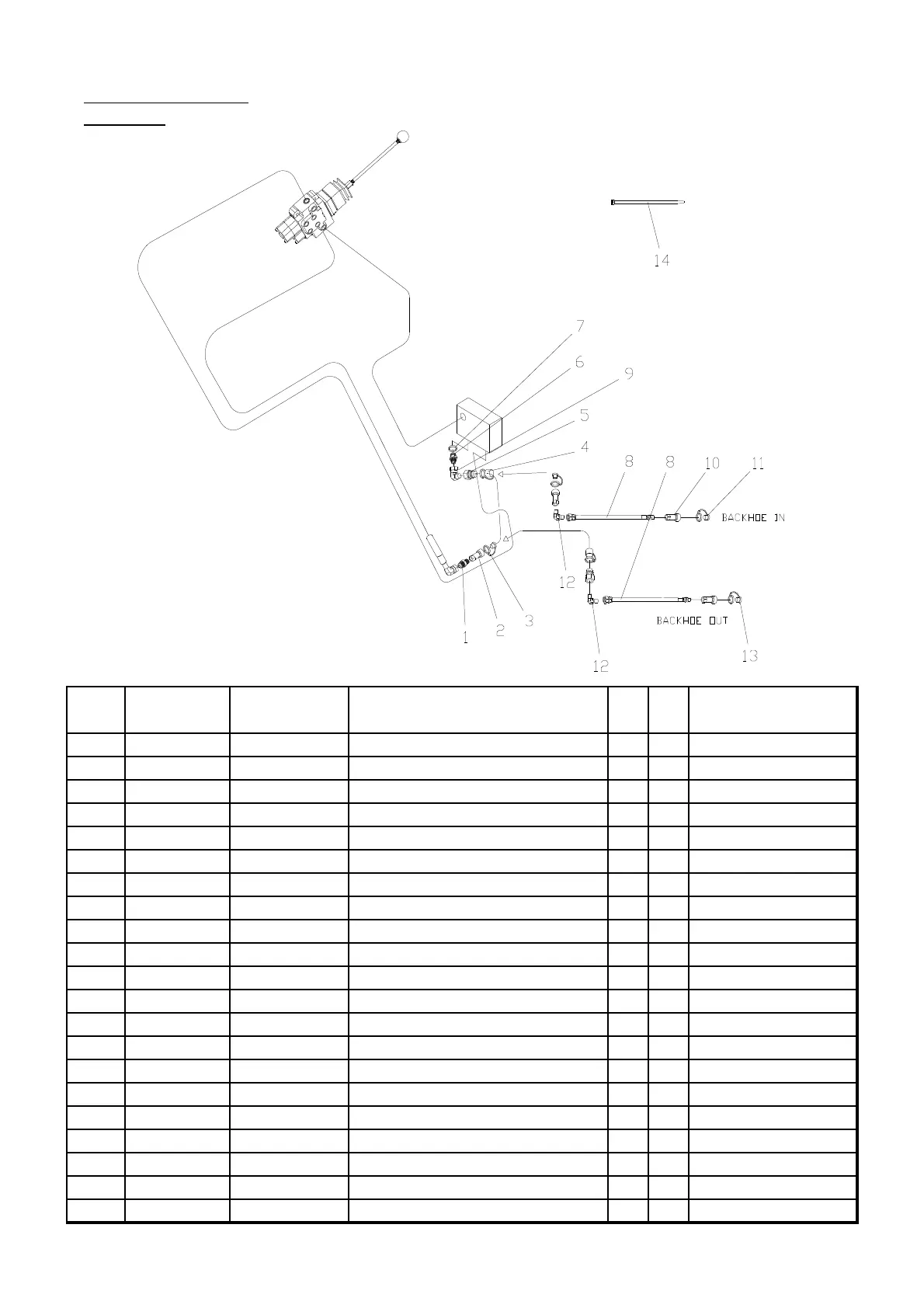

HOSE KIT
-S3010
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
1 40230965 802N2-T46F9-40 NIPPLE, PT3/8×3/4-16UNF, HOSE 1
2 40228721 80420-T3360 QUICK COUPLER, PT3/8" FEMALE 2
3 40230676 8043W-03300 DUST-CAPS, 3/8" WHITE MALE 2
4 40228729 8044W-03300 DUST-CAP, 3/8" WHITE FEMALE 2
5 40228720 80410-T3360 QUICK COUPLER, PT3/8" MALE 2
6 40230964
802N2-P46F9-4M
NIPPLE, PF3/8,COPPER×3/4-16UNF (69L)
1
7 40228652 103C0-C0330 WASHER-COPPER, 3/8" 1
8 40230976 80620-02013
HOSE ASS'Y, 4(3/4-16UNF)-1(PT1/2) 700L(3/8)
2
9 40230959
802L2-T46F9-4S
NIPPLE, PT3/8×3/4-16NUF, SWIVEL 90°
1
10 40230968 80420-T1130 QUICK COUPLER, PT1/2 FEMALE 2
11 40230970 8043W-01100 DUST-PLUG, 1/2" WHITE MALE 1
12 40228715
802L2-T46F9-40 NIPPLE, PT3/8×3/4-16UNF, HOSE 90˚ 1
13 40230969 8043K-01100 DUST-PLUG, 1/2" BLACK MALE 1
14 40228698 50120-M540K CABLE TIE, 540mm BLACK 5
15 40228758 99400-00001 TEFRON TAPE 1
