LS tractor LB1100 Series User Manual

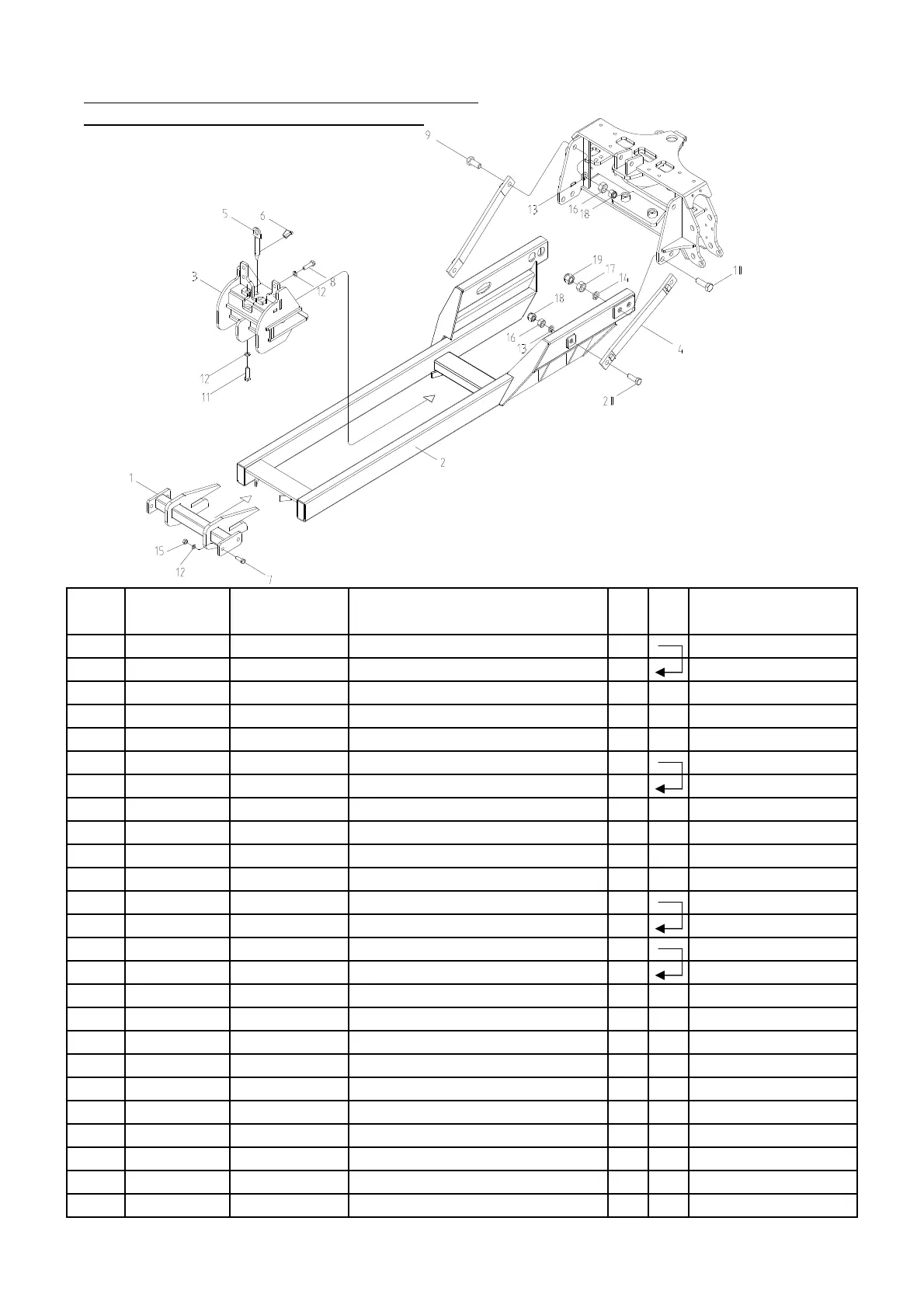

SUBFRAME ASSEMBLY
-XG3000series, XG3100series
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
0 40324621 FTS87-00000 FRAME ASS'Y-SUB 1
40342995
FTS87-00000-03 FRAME ASS'Y-SUB 1 2016.03.15~
1 40324622 FTS87-11100 BAR-CROSS W.A. 1
2 40286940 FTS78-11200 RAIL W.A. 1
3 40256022 FTS71-10400 BRACKET_MID W.A. 1
4 40286935
LDS04-2131A-03
BRACE 2
40342997 FTS88-41000 BRACE 2 2016.03.15~
5 40230905 14132-20120 PIN 2
6 40228656 14021-10000 RING-PIN, ∅10 2
7 40228623
10191-M1406-60
HEX.BOLT-HT, M14-2.0P 60L 4
8 40230601
10191-M1406-40
HEX.BOLT-HT, M14-2.0P 40L 4
9 40230894
10191-M2007-70
HEX.BOLT-HT, M20-2.5P 70L 4
40343000
10191-M2007-80
HEX.BOLT-HT, M20-2.5P 80L 2 2016.03.15~
10 40230895
10191-M2207-70
HEX.BOLT-HT, M22-2.5P 70L 4
40343501
10191-M2207-80
HEX.BOLT-HT, M22-2.5P 80L 4 2016.03.15~
11 40230893
10191-M1406-55
HEX.BOLT-HT, M14-2.0P 55L 2
12 40228643 10316-M1400 WASHER-SPRING, M14 10
13 40228645 10316-M2000 WASHER-SPRING, M20 4
14 40230899 10316-M2200 WASHER-SPRING, M22 4
15 40228637 10261-M1406 HEX.NUT-HT, M14-2.0P 4
16 40228639 10261-M2007 HEX.NUT-HT, M20-2.5P 4
17 40230898 10261-M2207 HEX.NUT-HT, M22-2.5P 4
18 40343502 1021N-M2007 NUT-SELFLOCK,M20-2.5P 4 2016.03.15~
19 40343503 1021N-M2207 NUT-SELFLOCK,M22-2.5P 4 2016.03.15~
20 40343504
10191-M2007-90
HEX.BOLT-HT, M20-2.5P 90L 2 2016.03.15~
- 36 -
