LS tractor MT225E User Manual

5 -26
(10) Adjustment of Clutch pedal
play (Mechanical type)
 Check the distance of the clutch pedal play.
 Normal distance: 20~30mm (0.8~1.2 in.)
If the distance of the pedal play is over the
normal distance, adjust it as below.
1. Loosen the locking nut(s) and turn the adjuster
to the left/right-hand direction.
2. If the adjuster is tightened, the pedal play will be
decreased, and if loosened, it will be increased.
3. After adjusting the pedal play, tighten the locking
nut(s).
4. Check if the clutch is disengaged completely.

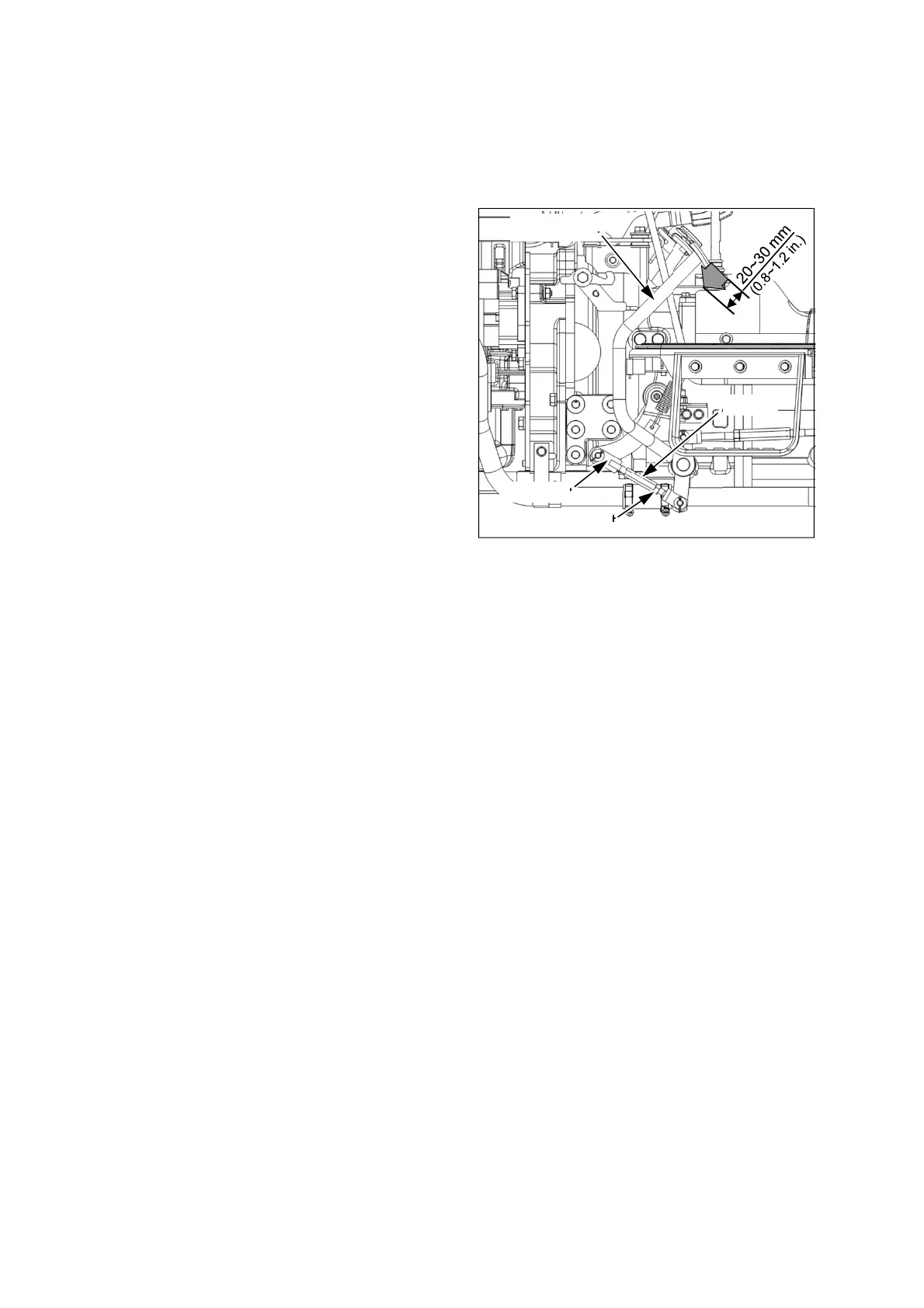

Clutch pedal
Adjuster
Locking nut
Clutch rod
