3 -26
when pushing
when pulling

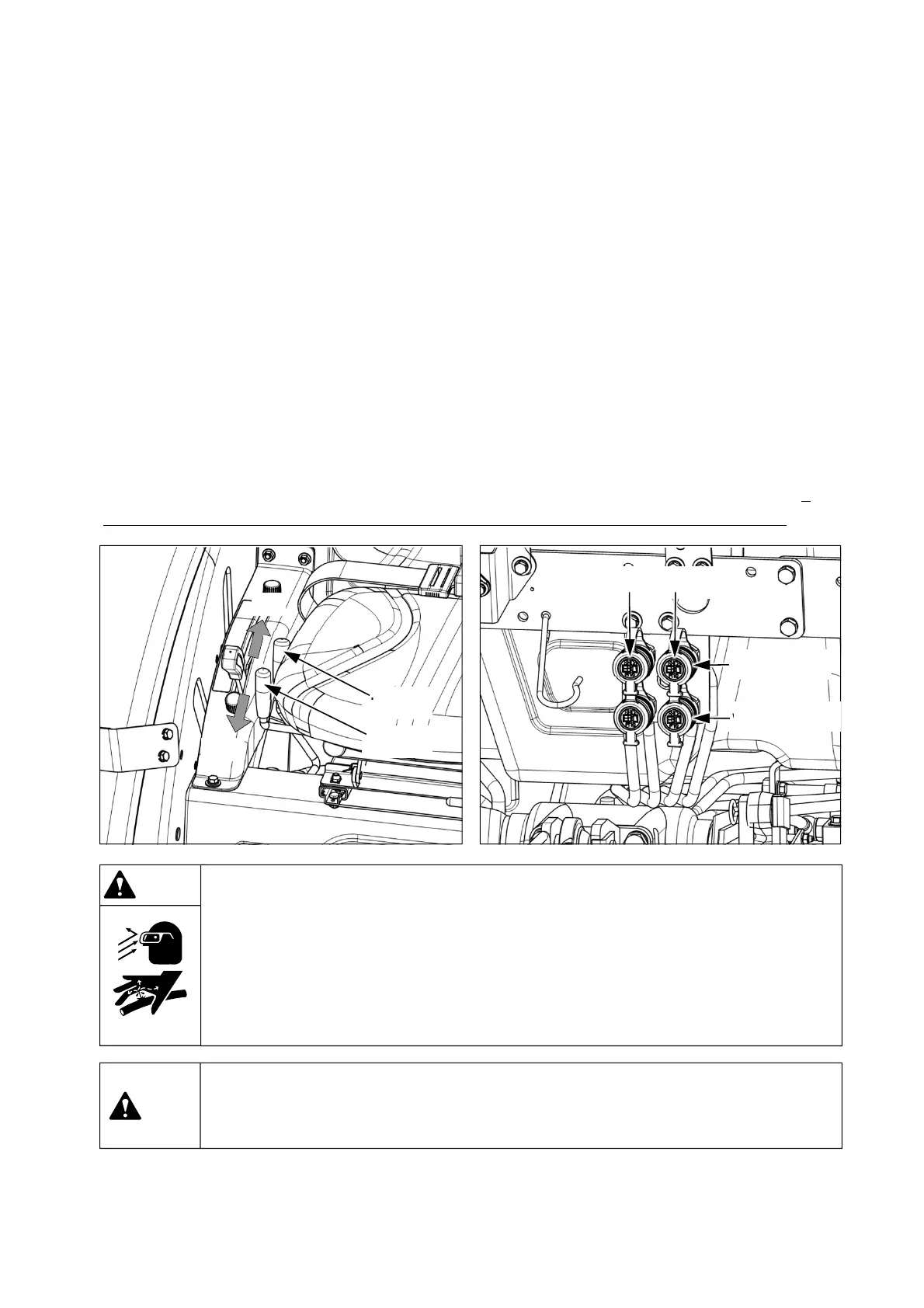

(4) Remote control lever and Quick coupler (optional)
The remote control levers are used to operate the hydraulic cylinder(s) and/or motor(s) of the
implement attached to the tractor.
If you pull the remote control lever(s) backward, and the hydraulic pressure works to the upper
couplers of the related lever(s), and the lower coupler(s) is connected to the oil tank.
Each lever of the parallel circuit remote control valve can be operated respectively, and when
operating the levers at the same time, a quick coupler under less pressure begins to work first.
After connecting and preliminary operating the hydraulic equipment, check again the transmission
oil level of the tractor.
Depending on the remote control valve type, a set of spring-return type lever(s), detent type lever(s)
or combinations may be installed on your tractor. (optional)
- Spring-return type: When releasing the lever(s) after operating fully, the lever(s) will return to the
neutral position automatically.
- Detent type: When releasing the lever(s) after operating fully, the lever(s) is fixed on the working
position. In this case, you must move the lever to the neutral position manually after operating. If
leaving this lever on, it may cause an over-heat and serious damage of the hydraulic system.
Lever 1
Pull
Push
Lever 2
Lever 2Lever 1
Warning
▶Before removing hydraulic pipes or hoses and other parts, make sure to check that
hydraulic pressure is relieved completely. The leaks of pressurized oil can cause a
fatal physical injury.
▶Use proper personal protection equipment, before servicing the hydraulic system.
▶Before connecting or disconnecting the hydraulic quick couplers, lower the
implements to the ground, and check that the hydraulic pressure is relieved.
Caution
▶ When connecting a high volumetric capacity cylinder to the remote control system,
lower the implement to the ground, and check if the transmission oil level is marked
between “Min” and “Max” scale on the oil gauge. If necessary, add new oil.
