(5) Joystick lever (if fitted)
Remote control joystick lever helps to operate
the front-end loader comfortably.

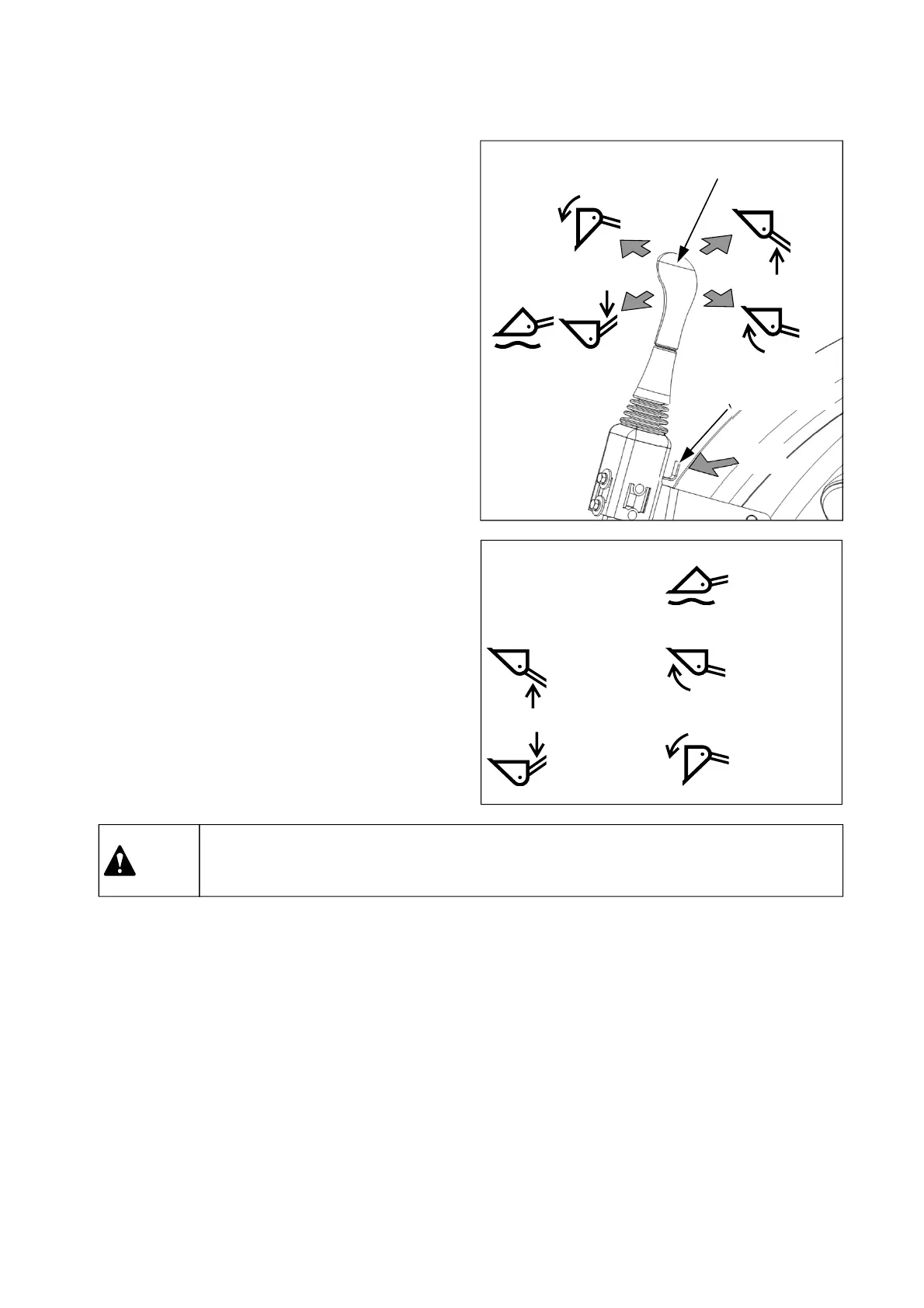

The joystick lever can be operated basically in
four directions as shown in the right figure.
If you move the joystick lever diagonally, loader
and bucket cylinders will be operated at the
same time. In this case, the light loaded cylinder
may be moved first.
If you want to float the bucket along the ground,
lower the front-end loader and push forward the
joystick lever to the float position. After finishing
work, pull the lever and place it in neutral
position.
Locking lever shown in the right figure is used to
lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
For further information, see chapter 4-5-(7)
“Using Front-end loader” in this manual.
Locking lever
(safety device)
Joystick lever
Lock
Boom up
Boom down
Bucket up
Bucket dump
Bucket float
<Meaning of symbols>
▶To prevent an accident, lock the joystick lever with the locking lever when not in use.
