5 -39
(4) Replacing Air cleaner element
(Dry type)
Remove the cover and pull the primary element
straight out, ensuring the safety filter element(if
fitted) remains in place.
Clean the inside of the air cleaner housing using
a clean damp cloth, being careful not to damage
the safety element(if fitted).
Check if there is damage inside the filter element
by using a light. If finding a tiny crack or small
hole in the filter element or the gasket is
damaged, change it with a new one.
Insert the filter element deeply into the filter housing.
Remove the dust of the evacuator valve and clean the inside of the cover.
Assemble the cover with the evacuator valve facing downwards.
▶
Do not start the engine or close the hood if the filter element is not assembled..
Notice
A
C
B
Fuel tank
(Feed)
Fuel tank
(Return)
Injection pump
Bolt

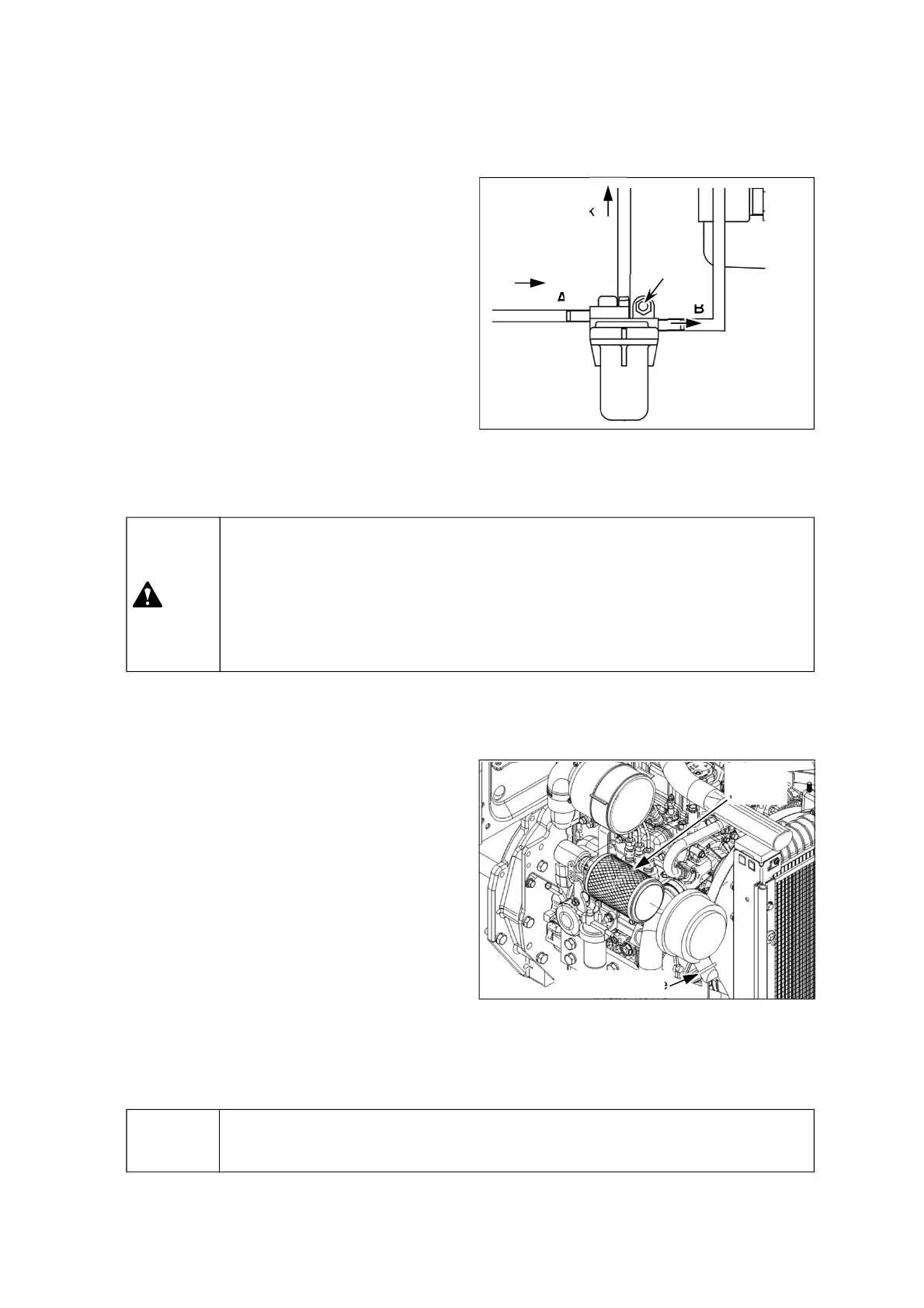

(3) Replacing Fuel filter element
1. Stop engine and apply parking brake. Set a
clean container under the fuel filter. Prepare
some plugs to block the fuel hoses.
2. Disconnect hose-A first, and plug the hose.
3. Disconnect hose-B and C with the same method.
4. Remove the bolt from the filter.
5. Replace the fuel filter with a new one.
6. Connect the hose B, C and A step by step and
tighten the bolt.
7. Disconnect hose “C” for a seconds to bleed the
air, and connect it again.
8. Check any leakage around the fuel filter.
Primary
element
Evacuator valve
▶ Do not allow dirt to enter the fuel system. Thoroughly clean the area around a fuel
system component that will be disconnected. Fit a suitable cover disconnected fuel
system component. Do not fill the new filter with fuel. Invisible fine contaminants
can enter the injection pump and it may cause damage to the fuel injection system.
▶Do not throw the exhausted waste fuel to any place. The waste fuel must be
disposed according to the environment laws.
Caution
