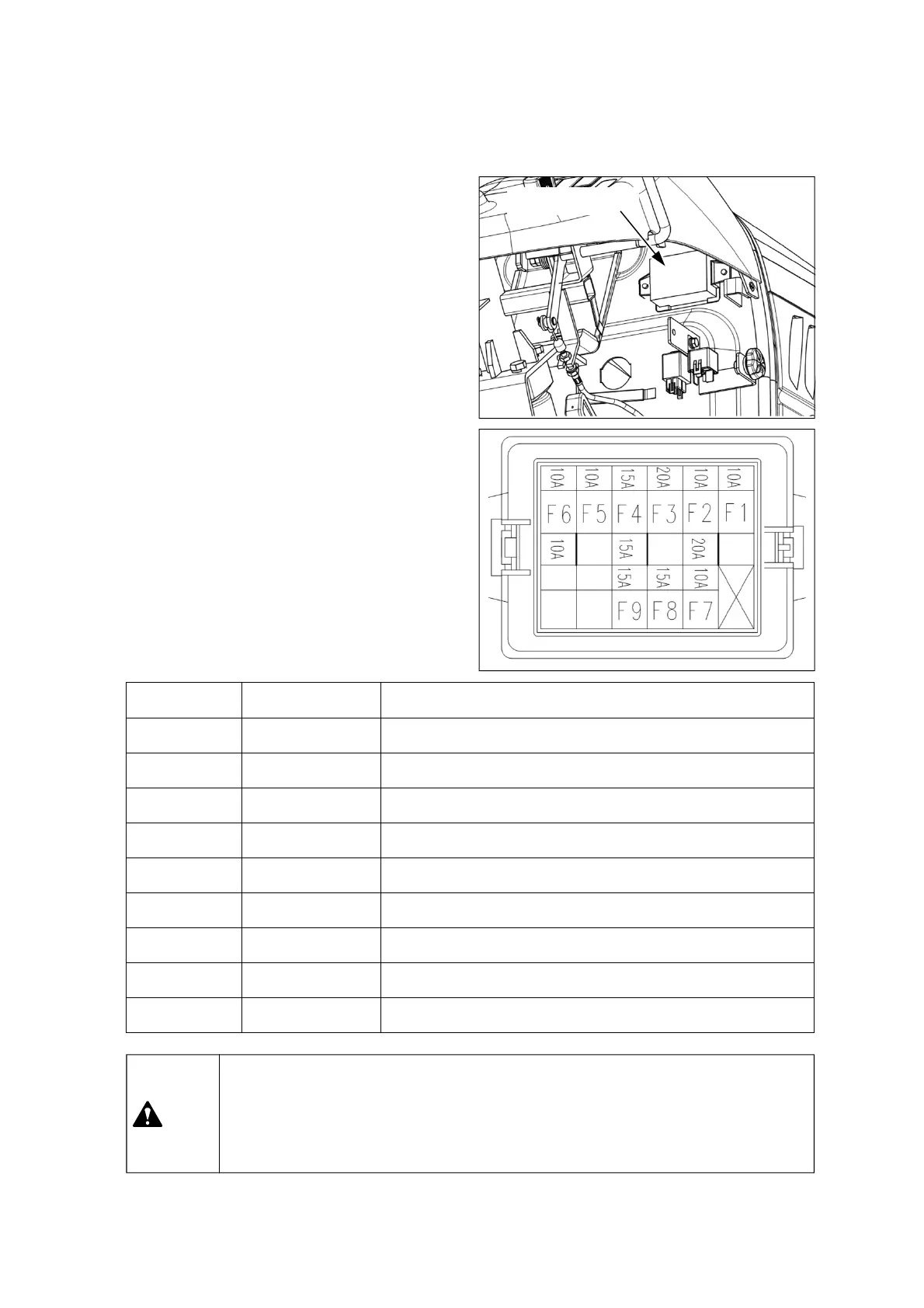

Fuse check and replacement
Chassis fuse box is installed inside front console
in the right figure. Loosen the knobs and remove
the rear cover for maintenance.
How to replace the fuse.
1. Remove the fuse box cover.
2. Check each fuse and remove the damaged one.
3. Replace it with a new one such as a damaged
one.
The capacity and function of each fuse is
described on the fuse box cover.
(2) Fuse & Main fuse
Chassis fuse box
Fuse Capacity Circuit
F1 10A Engine stop, Alternator, HST relay (if fitted)
F2 10A Instrument panel, horn, glow relay
F3 20A Headlights, brake lights, side lights
F4 15A Work lights
F5 10A PTO
F6 10A Controller (if fitted)
F7 10A Spare
F8 15A Turn signal lights
F9 15A Hazard warning lights
spare
spare
spare
▶
If the same function fuse is damaged repeatedly, contact your authorized local
dealer for check instead of using a substitute such as wire or aluminum foil.
▶
If using the substitute instead of the rated capacity fuse, it may cause a fire which
results in damage of the tractor or personal injury.
