LS tractor MT352 User Manual
4
of 1
of 1 rating
264 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
5
-4
7

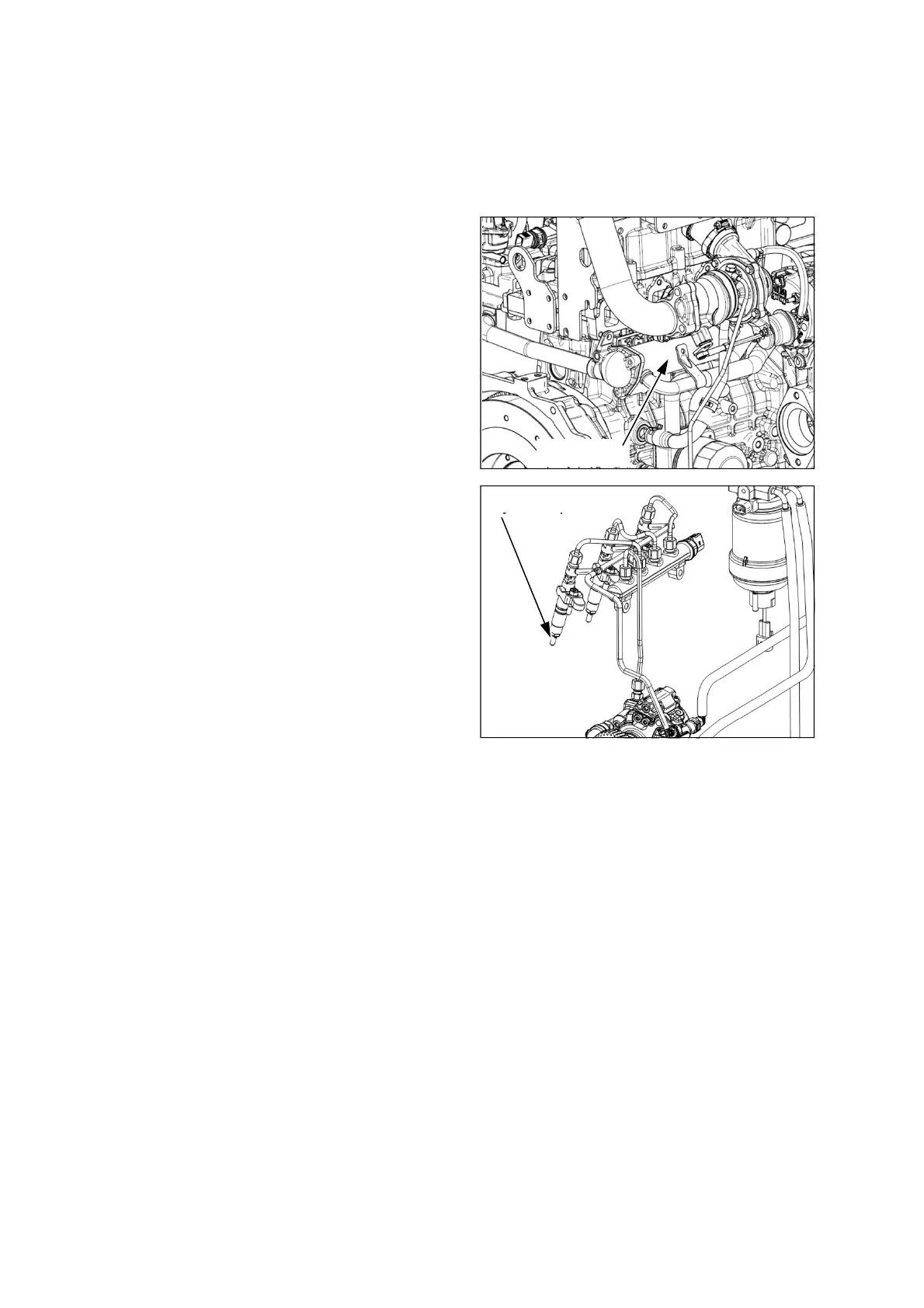

(2) Cleaning
Emission related
parts
The following
items
are major engine
emission
related
parts. These items
are checked
and
cleaned
periodically. But
it is performed by
special eng
ine
service experts.
C
ontact
your
authorized local
dealer for check.
-.
EGR Cooler
-. Injector Tips
Injector Tips
EGR Cooler
226
228
Table of Contents
Table of Contents
9
General Notices for Safety
15
Note to the Owner - General Information
15
Before Using the Tractor
17
Manual Scope and Required Training Level
19
Metric and Imperial Units Abbreviations
21
Product Identification Number (PIN)
23
Operator's Manual Storage
25
Tractor Orientation
26
Safety Precautions (Read this for Safety before Using)
27
Notices before Using the Tractor
27
Notices When Starting Engine
31
Notices While Operating/Using the Tractor
32
Notices When Connecting Implement
34
Notices When Towing the Tractor
35
Notices When Transporting the Tractor
35
Notices When Servicing the Tractor after Work
36
Notices When Handling Diesel Fuel
37
Notices When Leaving the Tractor
38
Notices Relating to Toxic Substances
38
Tractor Stability
39
Ecology and the Environment
42
Symbols
44
Safety Decals
45
Instructional Decals
54
Long-Term Storage
59
Preparation for Storage
59
Check & Maintenance During Storage
60
Preparation for Reuse
61
Instruction for Safe Operation
63
The Name of each Part
63
Boarding and Exiting the Tractor
65
Boarding the Tractor
65
Driver's Seat (HST Type)
66
Seat Adjustment
67
Seat Belt
69
Tilting Steering Wheel
70
Ventilation (Cabin Only)
70
Exiting the Tractor
71
Safety Device
72
Hood (Bonnet)
72
Fender
72
PTO Safety Cover and Protection Cap
72
Roll-Over Protective Structure (ROPS)
73
Instruments and Controls
77
Instrument Panel and Front Controls
77
Instrument Panel
79
Key Switch
86
Turn Signal Light Switch
87
Light Switch
88
Hazard Warning Light Switch
89
Horn Switch
90
Grille Work Light Switch
90
DPF Switch
91
PTO Switch
96
PTO Mode Switch
96
Shuttle Lever (Mechanical)
97
Throttle Lever
98
Throttle Pedal (Mechanical)
99
Clutch Pedal (Mechanical)
99
Brake Pedals
100
Cruise Control Switch (HST Type)
101
HST Forward/Reverse Pedal (HST Type)
101
Creeper Gear Lever (Mechanical, if Fitted)
102
HST Linked Pedal Switch (HST Type, Optional)
103
ESC Main Switch (Roll-Bar, HST Models Only)
104
ESC Speed Up/Down Switch (Roll-Bar, HST Models Only)
104
Right-Hand Controls and Cabin Pillar (Cabin Type)
105
Main Gear Shift Lever (Mechanical)
105
Clutch Button (MPC Models Only)
106
Range Gear Shift Lever (HST Type)
107
Parking Brake Lever
108
Differential Lock Pedal
108
Work Light Switch
109
Window Wiper&Washer Switch (Front, Rear)
109
Electrical Power Outlet Socket (Cabin Only)
110
Indoor Light (Cabin Only)
110
Audio Player (Cabin Only) (if Fitted)
110
ESC Main Switch
111
ESC Speed Up/Down Switch
111
Beacon Lamp Switch
112
Left-Hand Controls (Cabin Type)
113
Range Gear Shift Lever (Mechanical)
114
PTO Gear Lever (if Fitted)
114
Four Wheel Drive Lever (4WD)
115
Middle PTO Lever (if Fitted)
115
Ground Speed PTO(GSP) Lever (if Fitted)
116
Clutch Engaging Speed Adjustment Knob (MPC Models Only)
116
Left / Right-Hand Controls (Roll-Bar Type)
117
Main Gear Shift Lever (Mechanical)
117
Clutch Button (MPC Models Only)
118
Range Gear Shift Lever (HST Type)
119
Parking Brake Lever
120
Differential Lock Pedal
120
ESC Main Switch (MEC, MPC Models Only)
121
ESC Speed Up/Down Switch (MEC, MPC Models Only)
121
Work Light Switch
122
Range Gear Shift Lever (Mechanical)
122
PTO Gear Lever (if Fitted)
123
Four Wheel Drive Lever (4WD)
123
Middle PTO Lever (if Fitted)
124
Ground Speed PTO(GSP) Lever (if Fitted)
124
Clutch Engaging Speed Adjustment Knob (MPC Models Only)
125
Hydraulic System
126
Safety Precautions
126
Steering System
127
Hydraulic Lift Control (MHL) (Cabin Type)
127
Hydraulic Lift Control (MHL) (Roll-Bar Type)
129
Remote Control Lever and Quick Coupler (Optional)
132
Joystick Lever (if Fitted)
134
Hydraulic System Diagram
135
Operation and Work
139
How to Handle New Tractor
139
Check Points
139
Notices in Handling New Tractor (Engine Brake-In Procedure)
139
Engine Start and Stop
140
Engine Start
140
Start in Cold Weather
142
Engine Stop
143
How to Drive and Stop
144
Transmission Warm-Up in Cold Weather
144
How to Drive
145
Changing Speed
147
Emergency Stop
148
Stopping Tractor
149
Parking
150
Handling Turbocharger (if Fitted)
150
Transport on Public Roads
151
Safety Rules When Driving Tractor on the Roads
151
Light Operation
152
7-Pole Connector (Optional)
154
Notices When Towing the Tractor
155
Notices When Transporting the Tractor
157
Field Operations
158
Rear 3-Point Linkage
158
Power Take-Off (PTO) Operation
162
Hitch and Drawbar (Optional)
165
Technically Maximum Permissible Mass
166
Tires and Load Capacity
167
Adjusting Wheel Tracks and Tire Replacement
168
Using Front-End Loader (if Fitted)
169
Adjusting Steering Angle
172
Recommended Maximum Specification of Implements
173
Ballasting Weights (Optional)
174
Working in Hazardous Area
177
Driving Speed
178
Lubrication and Maintenance
181
General Information
181
Tightening Torque for Normal Assembly
182
Standard Torque Data for Hydraulics
184
General Specification - Diesel Fuel
187
Biodiesel Fuel
188
Refueling the Tractor
190
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
191
Access for Maintenance
192
Maintenance Chart
193
Lubricants and Capacity
197
First 50 Hour Check
198
When the Warning Indicator Lights
199
Check before Starting (Daily Check)
201
Engine Oil
201
Fuel Tank
202
Instrument Panel & Indicators
202
Turn Signal Lights, Lights and Horn
203
Engine Coolant
204
Air Cleaner (Dry Type)
204
Cleaning of Radiator and Radiator Screen
205
Tire Air Pressure & Damage
205
Tightening State of Bolts and Nuts of each Part
206
Adjustment of Clutch Pedal Play (Mechanical Type)
207
Adjustment of Brake Pedal Play
209
Adjusting HST Control Linkage (HST Type)
210
Every 50 Hour Check
212
Lubricating Grease Nipple
212
Cleaning of Radiator and Radiator Screen
212
Checking Transmission Oil
213
Checking Front Axle Oil
213
Battery Check
213
Air Cleaner (Dry Type)
213
Hydraulic Hoses and Leakage
214
Cleaning Cabin Air Filters
214
Every 100 Hour Check
215
Checking and Adding Engine Oil
215
Every 300 Hour Check
216
Replacing Engine Oil and Filter
216
Replacing Hydraulic Oil Filter
217
Tension Adjustment of Engine Belt
218
Toe-In
218
Cleaning Fuel Tank
219
Every 500 Hour Check
220
Replacing Fuel Filter Element
220
Replacing Air Cleaner Element (Dry Type)
221
Replacing Cabin Air Filters
221
Every 600 Hour Check
222
Changing Front Axle Oil
222
Changing Transmission Oil
222
Every 1000Hr or 1-Year Check
223
Adjusting Engine Valve Clearance
223
Checking Nozzle Injection Pressure
223
Every 1500Hr or 2-Year Check
224
Replacement of Engine Coolant
224
Cleaning Emission Related Parts
227
Every 3000Hr Check
228
Cleaning Emission Related Parts
228
General Maintenance (When Required)
229
Air-Bleeding from Fuel System
229
Fuse & Main Fuse
231
Battery Handling and Notices
233
Alternator and Drive Belt - Check
237
Tail/Brake Light Bulb and Turn Signal Light Bulb- Replace
238
Headlight Bulb - Replace
240
Touch-Up Paint Color
241
Troubleshooting
242
Air Conditioning System (Cabin Type)
249
The Name of each Part of Cooling and Heating System
249
How to Use Air Conditioner and Heater
250
How to Operate Air Conditioner and Heater
250
Air Direction Control
250
Every 6 Month Check
251
Checking Refrigerant Amount
251
Cleaning Condenser and Radiator Screen
251
Checking Leakage
251
Belt Tension Adjustment
252
Cleaning and Replacing Cabin Air Filters
252
Every Year Check
253
Compressor Check
253
Control Switch Check
253
Troubleshooting
254
System Diagram
