(5) Tail/brake light bulb and turn signal light bulb- Replace

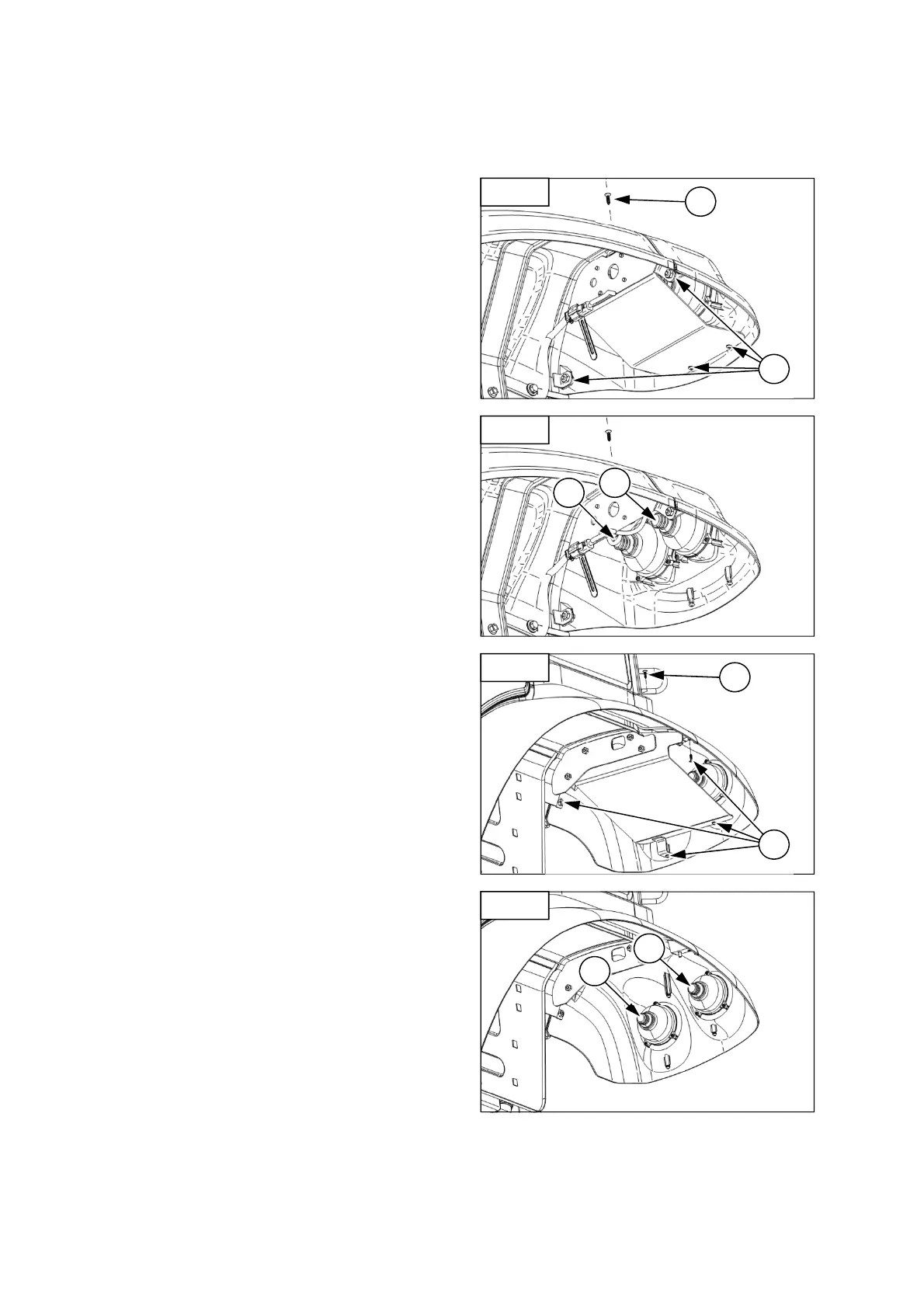

① Tail/brake light bulb and rear turn
signal light bulb replacement
1. Remove the harness connector.
2. Unscrew the locking screws①, ② with retaining
the rear lamp assembly.
3. Turn the socket of the brake light③ or turn
signal light④ counter-clockwise to remove the
socket from the housing.
4. Push in on the tail/brake light bulb or turn signal
light bulb and rotate counter-clockwise in the
socket to remove the old bulb.
5. Insert a new bulb into the socket and turn the
bulb in a clockwise direction until tightened.
6. Install the socket and rear lamp assembly.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
2
1
Roll-bar
3
4
2
1
Cabin
Roll-bar
3
4
Cabin
To Next Page
