M3 Mobile OX10 User Manual

Basic usage
18
2.2 Keypad
2.2.1 Buttons
M3 ORANGE has two different keypad options: Alpha-Numeric and QWERTY.

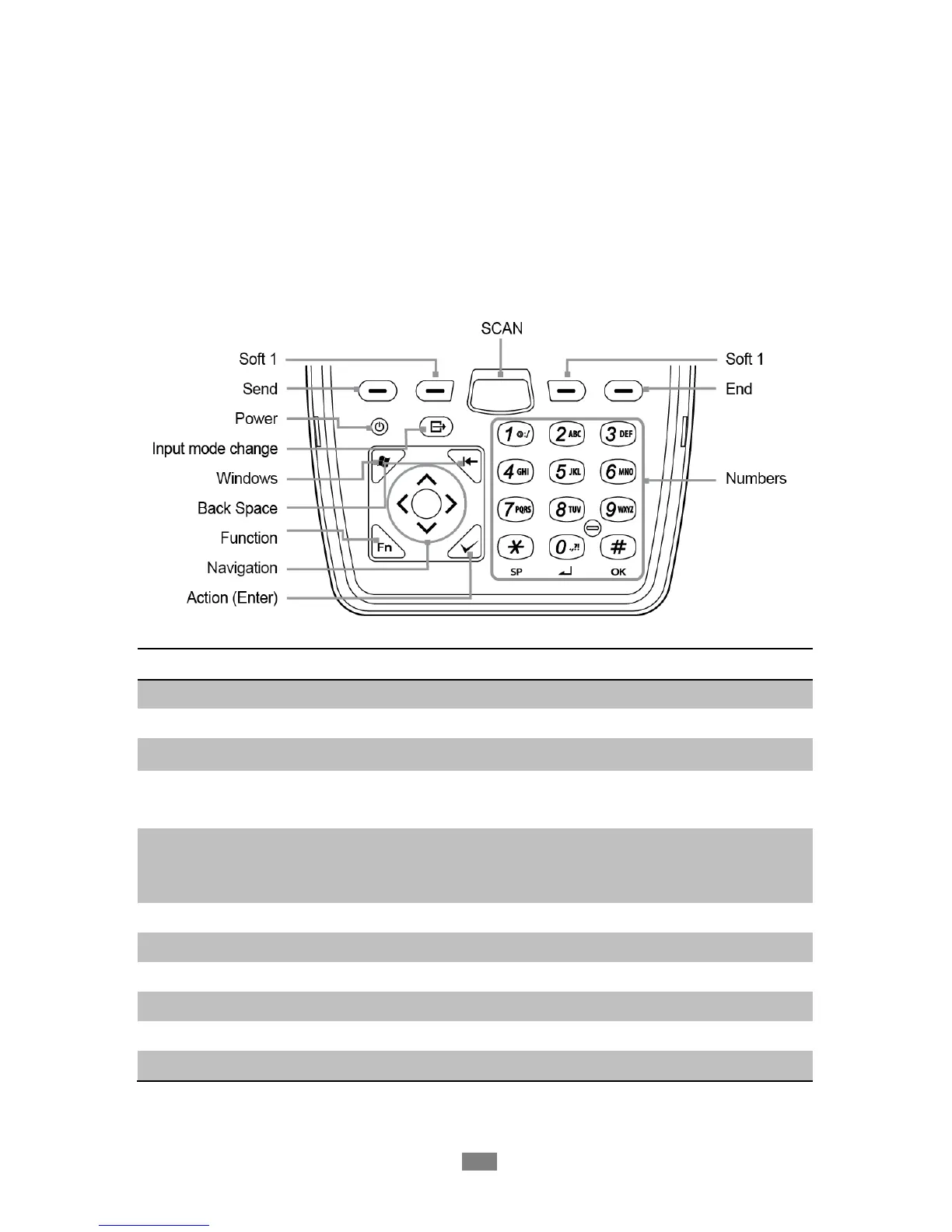

Alpha-Numeric keypad layout
Button
Description
SCAN
Used to scan while scanner program is running.
Soft1 / Soft2
Use specific command or menu.
Send / End
Used to make / end a call.
Power
Long press: Turns on/off the device.
Short press: Enters Sleep/Wake up Mode.
Input mode
change
Changes the input mode of the keypad.
□
1 (number) 
□
a (lowercase letter) 
□
A (uppercase letter)
Windows
Open ‘Start’ menu of windows.
Backspace
Deletes previous input data.
Function
Activate specific function.
Navigation
Move to up/right/down/left.
Action (Enter)
Performs chosen contents and/or function.
Number
Used to input numbers / characters or to execute functions.

M3 Mobile OX10 Specifications

General

Display diagonal	3.5 \
Display resolution	480 x 640 pixels
ROM capacity	1000 MB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	-
Processor frequency	0.833 GHz
Data network	EDGE, GPRS, GSM, HSPA+, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, CCX v4, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, TKIP, WEP, WPA, WPA2
WCDMA bands supported	800, 850, 1900, 2100 MHz
Rear camera resolution (numeric)	3.2 MP
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-30 - 70 °C
Battery capacity	3300 mAh
Product color	Black, Orange
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65
Operating system installed	Windows CE 6.0

Weight and Dimensions

Depth	24.9 mm
Width	78.6 mm
Height	165.5 mm
Weight	332 g
