- FINAL DRIVE CASE AND HOUSING - STEERING CYLINDER

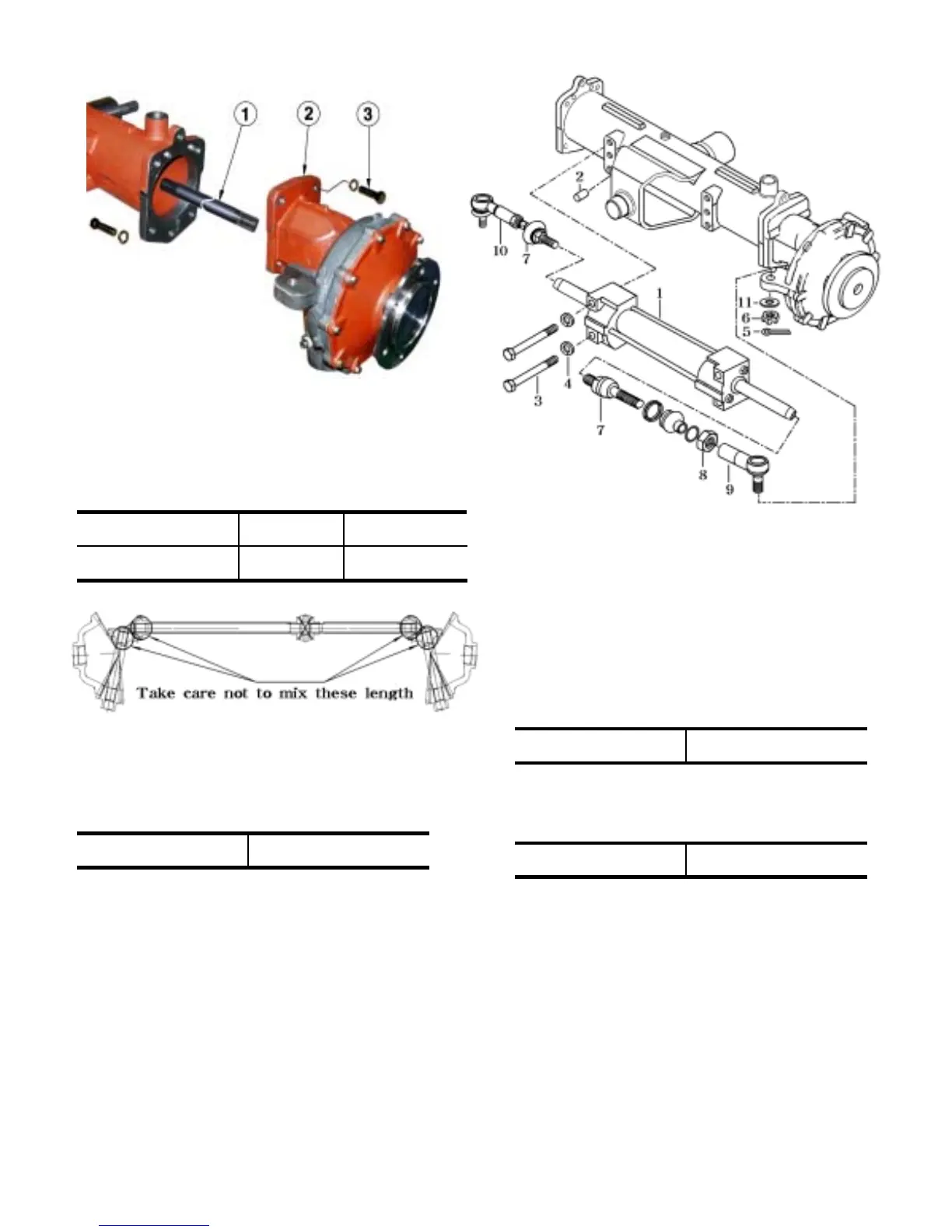

Fig.6-28
6-14
1) When installing the shaft,Be sure that the
gears are not damaged.
2) Be sure the differences between the LH and
RH shaft.
479mm
LH
295mmSpecified length
RH
Fig.6-30
1) When installing the steering cylinder,Be sure
that the rods are not damaged.
2) Install the pin(2) before assembling the
cylinder.
3) Apply an adhesive Locktite and tighten
the bolts to specified torque
3) Tighten the bolts to specified torque.
1300-1500 Kgf.cmTightening torque
Fig.6-29
900-1100 Kgf.cmTightening torque
4) Apply an adhesive locktite to the ball joint (7)
and tighten the ball joint to specified torque
1600-1800 Kgf.cmTightening torque
5) Be sure to bend the split pin (5) after installing
the ball joint
