5.GEAR PUMP
1) GENERAL DESCRIPTION
This pump induces fluid from one side and delivers it from the other side,by rotating two gears
meshed with each other. The actual delivery is as mentioned below,considering the consequences of
fluid temperature and volume efficiency in accordance with revolution speed. That is dual pump
system.
2) Gear pump

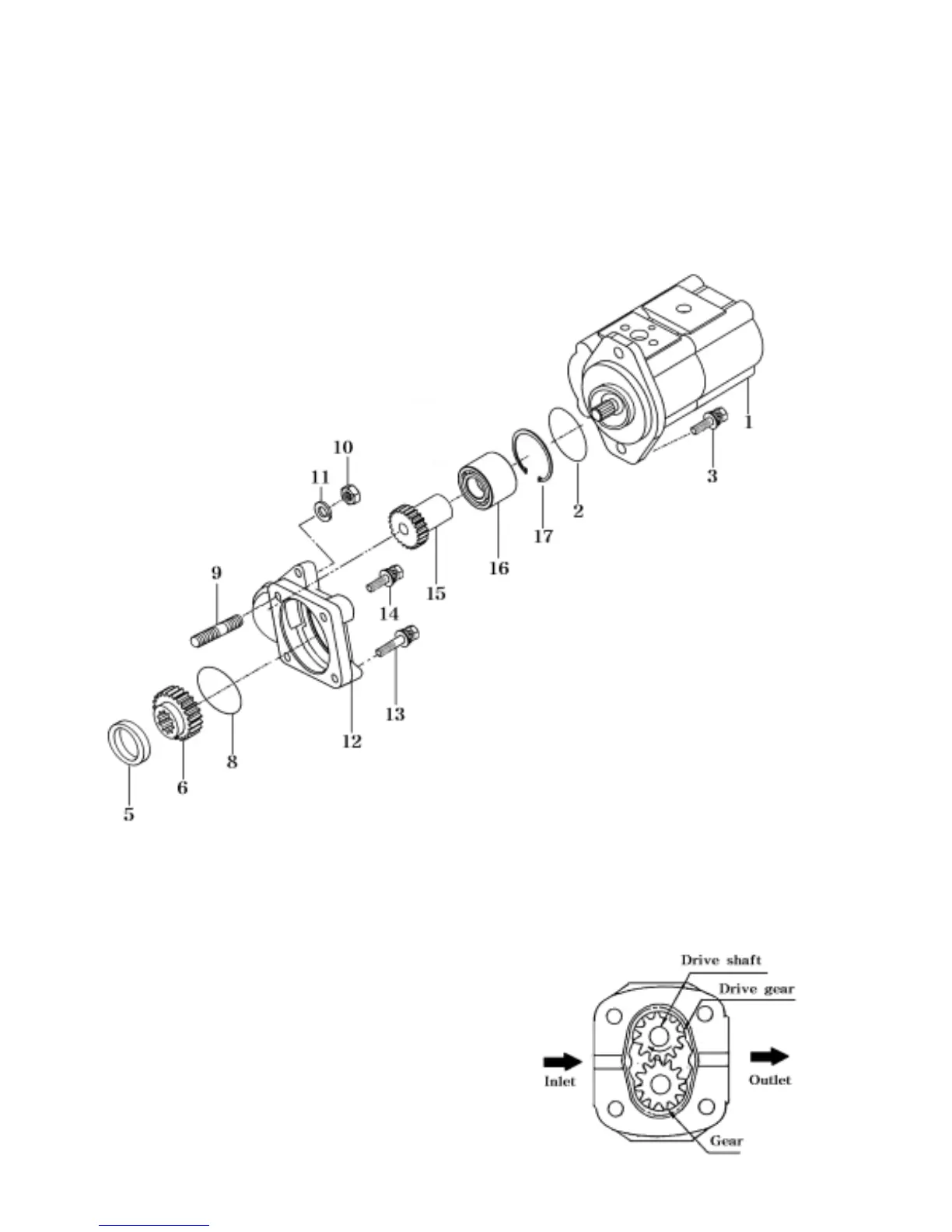

Fig. 9-12 Gear pump
1.Flange 2.Housing 3.Drive gear 4.Gear 5.Bushing 6.Bushing seal
7.Bushing 8.0-ring 9.Cover 10.Cap ring 11.0-ring 12.Housing
13.Drive gear 14.Gear 15.Oil seal 16.Socket bolt 17.Washer 18.Key
19.Snap ring 20.Ball
3) OPERATIONS.
This pump induces fluid from one side and
delivers it from the other side,by rotating
two gears meshed with each other. The
actual delivery is as mentioned Fig.9-13,
Considering the consequences of fluid
Temperature and volume efficiency in
accordance with revolution speed.
Fig. 9-13 Gear pump
