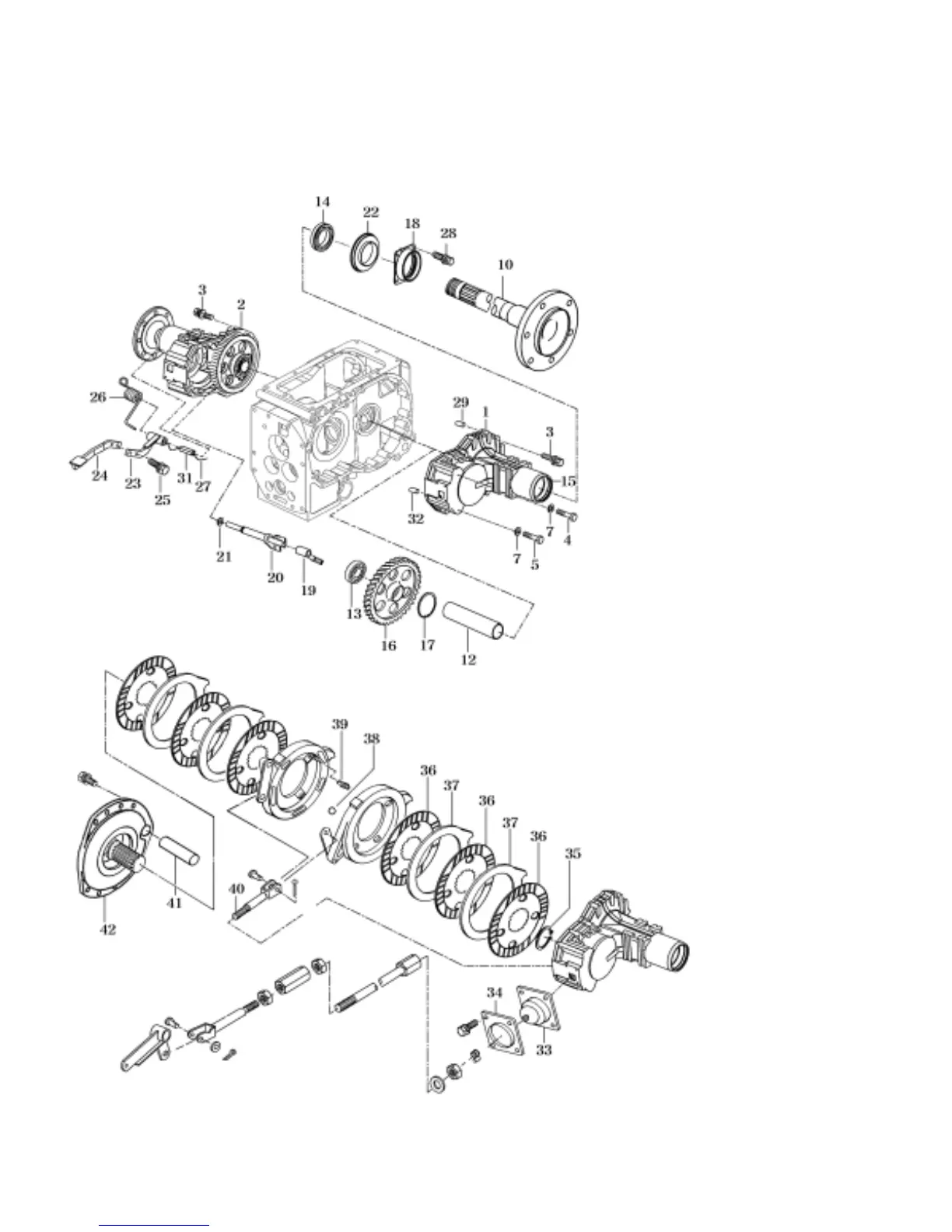

Fig.7-2
1.Rear axle Housing(L)
2.Rear axle housing (R)
3.Bolt(S)
4.Bolt(S)
5.Bolt(S)
7.Washer spring
10.Wheel shaft
12.Collar(56X65X240)
13.Ball bearing(HL1)
14.Ball bearing(HL1N)
15.packing wheel shaft metal
16.Wheel gear(Helical/54T)
17.Stop ring
18.Metal wheel shaft seal
19.Dif-Lock shifter
20.Dif-Lock cam
21.O-ring
22.Seal shaft
23.Diff Lock Hub
24.Metal (Dif-Lock)
25.Bolt(S)
26.Spring
27.Iron wire
28.Bolt
29.Pin
31.Pin spring
32.Pin(A)
SECTION 3.DISASSEMBLY,INSPECTION,AND REASSEMBLY
Separate the rear axle housing from the rear transmission referring to paragraph 6.(1) of SECTION 4.
SEPARATION OF MAJOR BLOCKS in Chapter 2
1) REAR AXLE HOUSING AND BRAKE SYSTEM
7-3
