Mahindra 2810 Service Manual

(2) Inspection
a.The main switch circuit,switching positions,
and terminals are as shown in the figures.
Check the continuity across respective
terminals referring to the switch circuit
diagram. Replace a defective switch as an
assembly

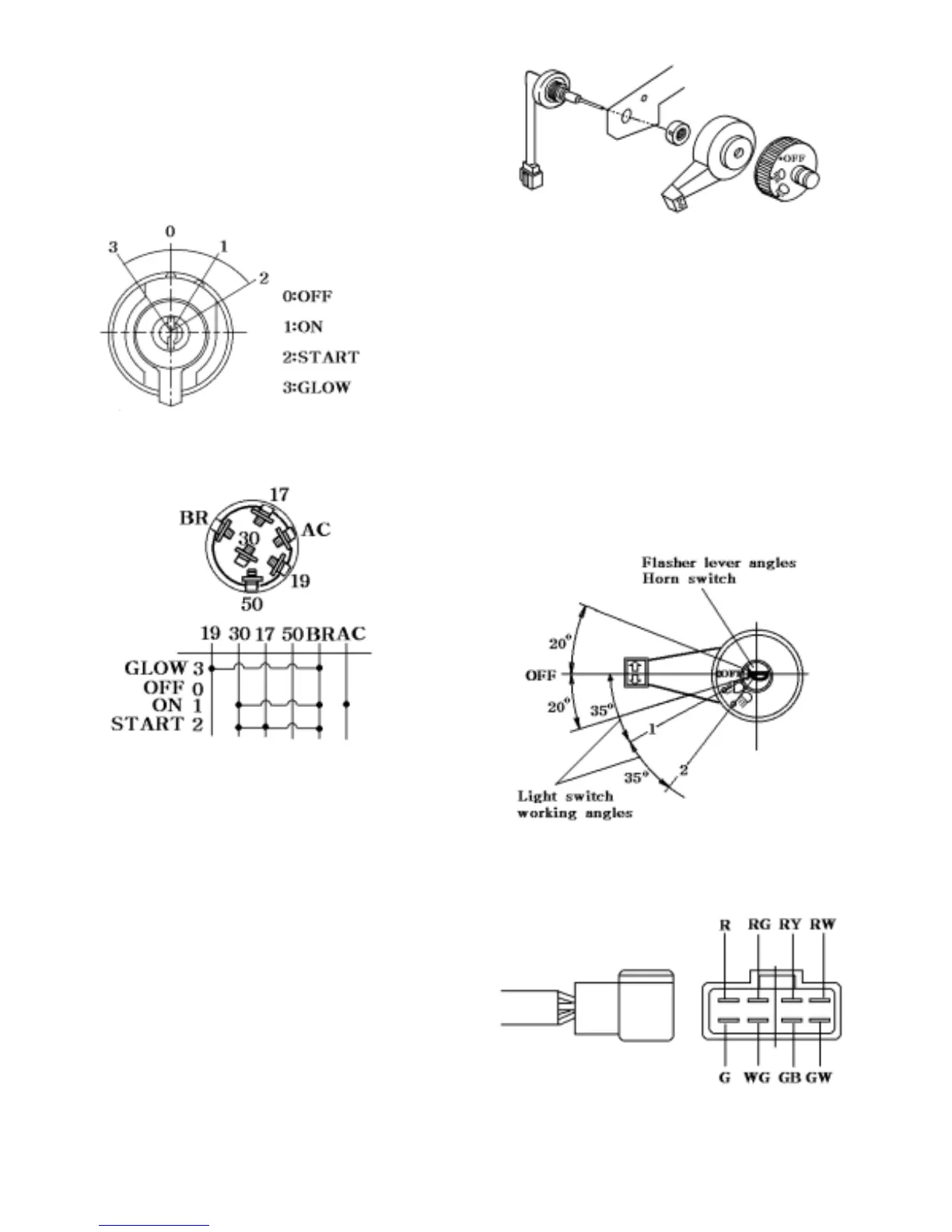

Fig.10-12
(3) Release the ring nut with a conventional
screw drive(-) and remove the combination
switch.
2) Inspection
Each switch circuit is as shown,so check each
switch for a continuity across respective
terminals with a tester.Replace a defective
switch as an assembly.
Fig.10-9
Fig.10-10
Fig.10-13 combination switch
3. COMBINATION SWITCH
1) Removal
(1) Remove the meter panel
(2) Remove the light switch knob and turn
signal switch lever.
Fig.10-14 Harness socket
10-7
