3.FINAL ADJUSTMENT OF THE CLUTCH PEDAL
Clutch pedal play
1) Loosen the lock nuts on the clutch rod and adjust the
clutch rod length to achieve 20～30㎜ (0.79～1.18 in.)
pedal play.Retighten the lock nut securely.
Note:
One lock nut has a right hand thread and the other has
left-hand threads,so take care not to interchange them.
2) Adjust the clearance between the safety
switch and the bolt head to 38 ±1㎜(1.496
in.) so that the switch will turn on only
when the clutch is disengaged to allow the
engine to start.
3) Inspect the clutch action.
-Inspection of clutch action and slippage.
While the engine is running,the
transmission gears must be shifted
smoothly with the brakes applied.
-Inspection of clutch slippage
While accelerating the engine gradually,
the engine must stop when the clutch is
engaged gradually with the parking brakes
applied and the speed shift levers to 4X4.

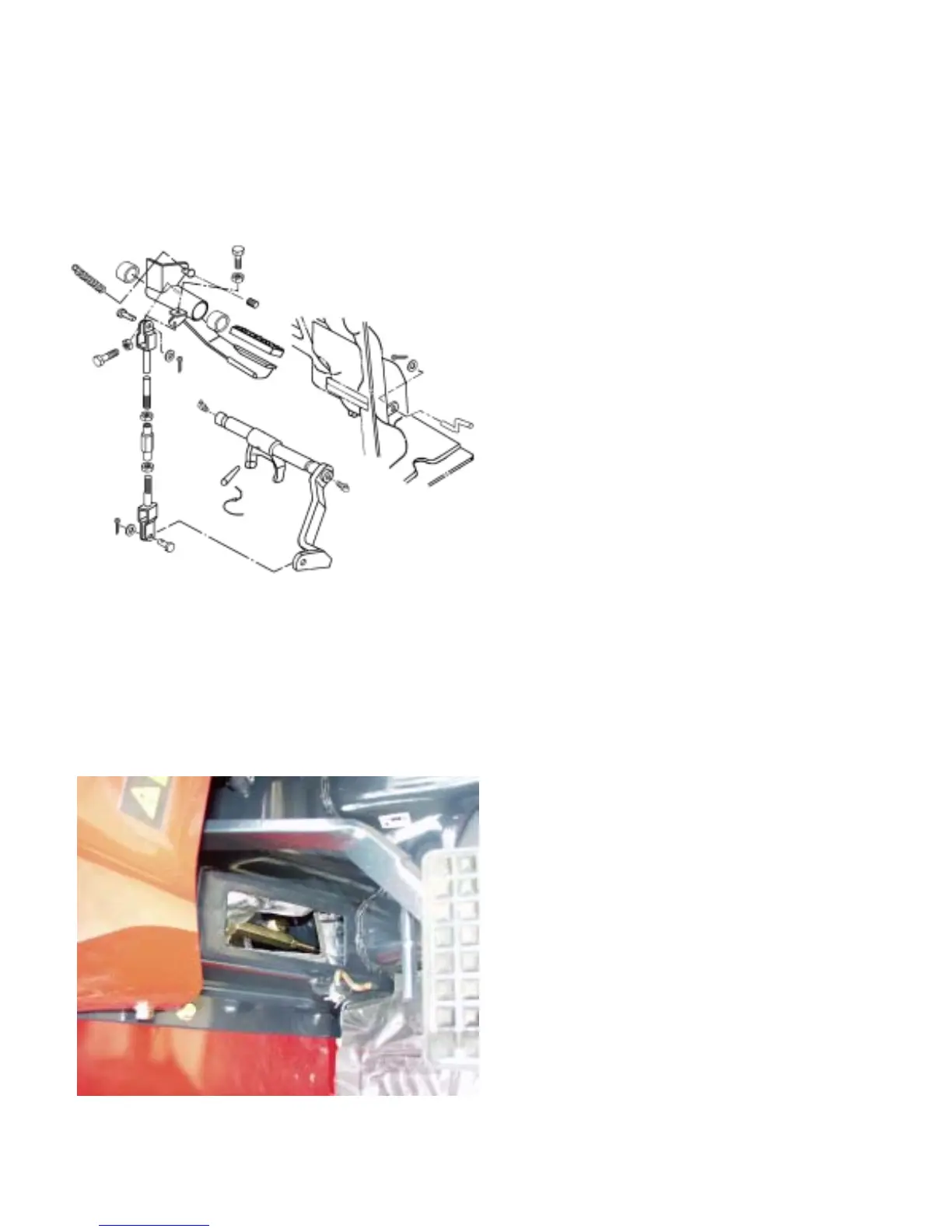

Fig 4-10 Main clutch
Note:
Adjust the turnbuckle through the opening in
the panel with the rubber cap removed.
Fig 4-11 Dash cover
4-6
