2. Radiator
The radiator consists of radiator cores, a tank
to Flow coolant,side plates to install the radiator,
and a fan guide.
Fin-tube type cores are used and the cores and
tank is made of anti corrosive copper and
Copper alloy.

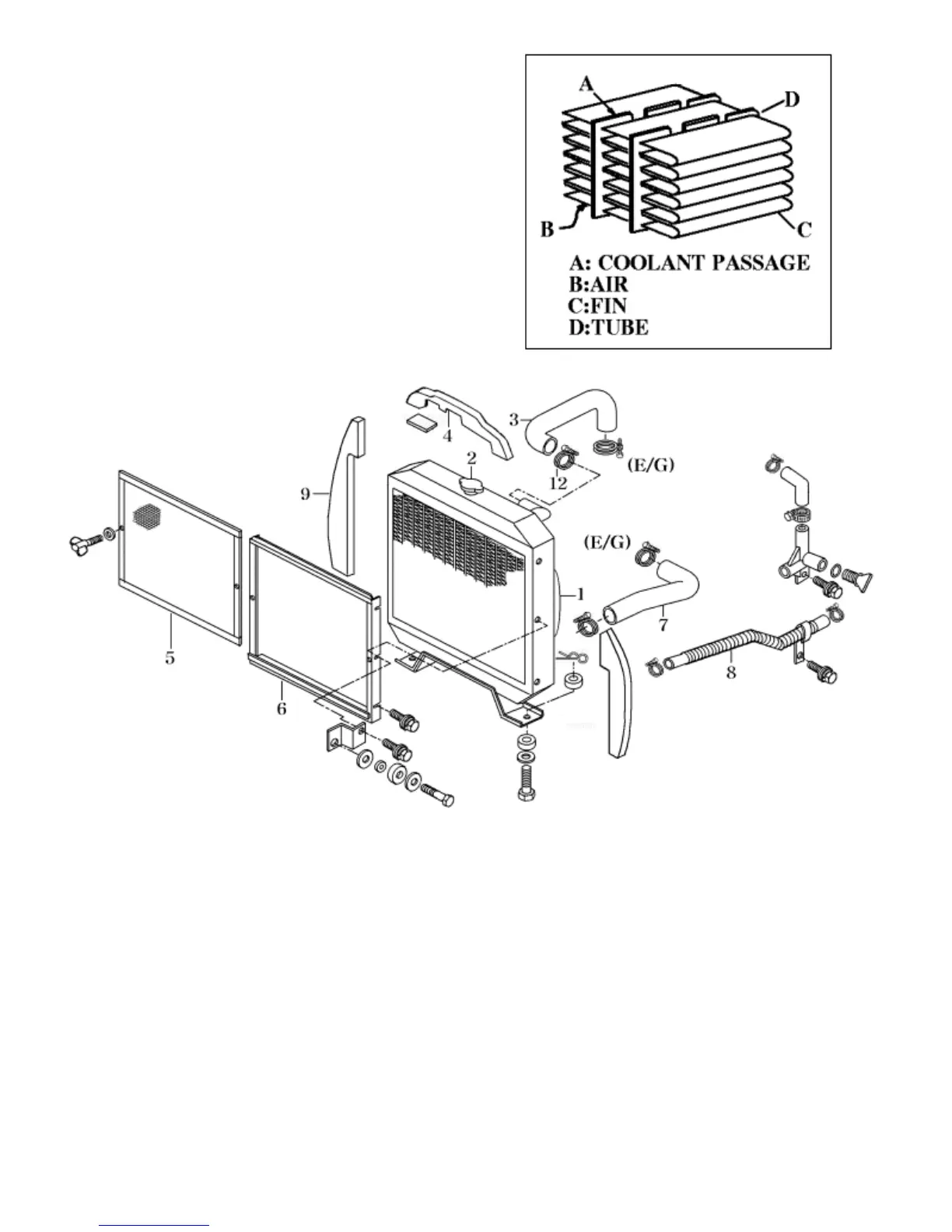

FIG.3-3
① Radiator assy ② Radiator cap ③Hose,Radiator ④Insulator
⑤Net comp ⑥Net bracket ⑦Hose radiator ⑧Hose
⑨Insulator ⑫Clamp
