1.4 INSTRUMENT CLUSTER INDICATOR LIGHTS
10

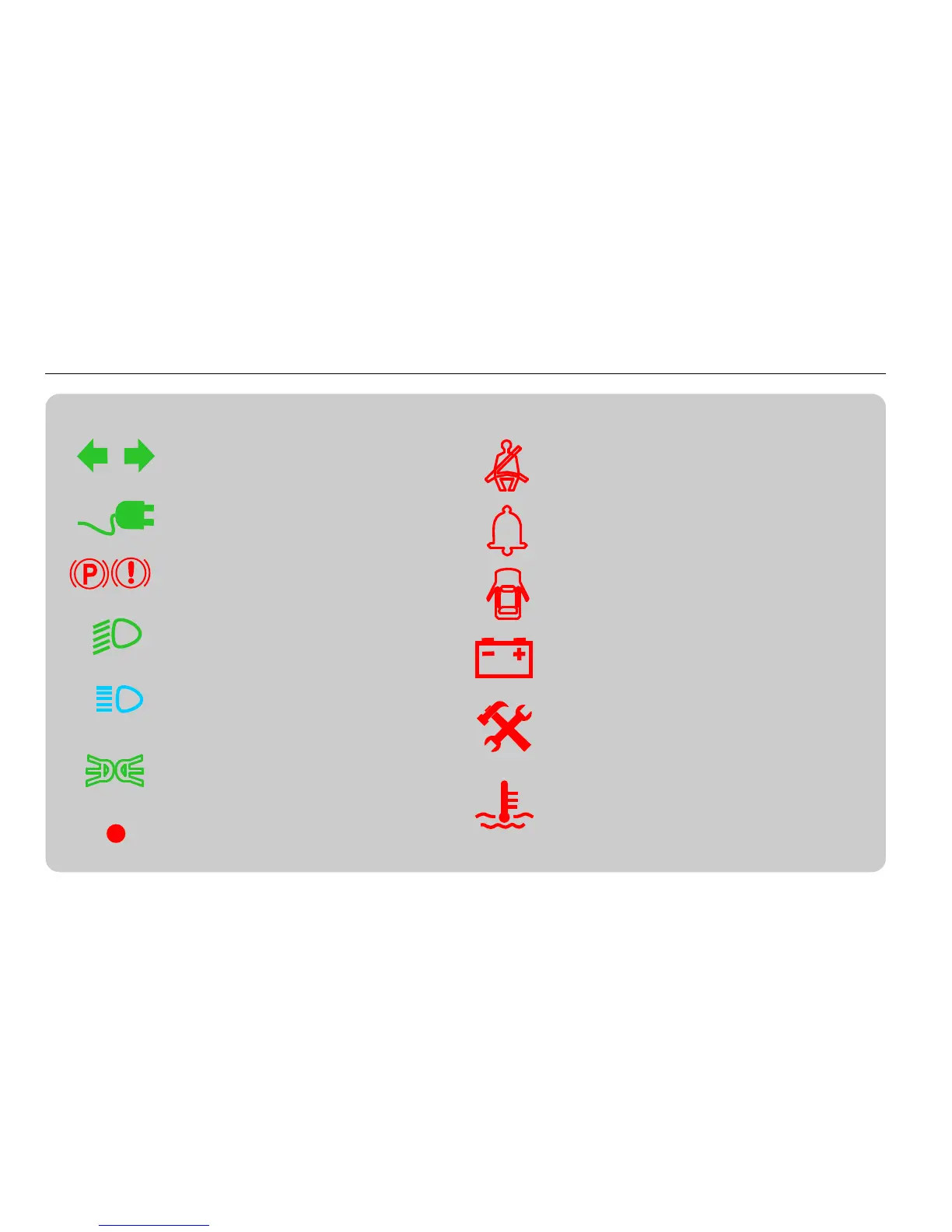

Overview
!
: Anti theft indicator lights
: Seat belt (driver side) indicator light
: EV warning indicator light
: Door open indicator light
: Low auxiliary battery indicator light
: Service light
a) Charge or Drive fault - Solid
b) Service Due - Blinking
: Temperature indicator light
: Turn signal / Hazard indicator lights
: Charge indicator light
: Parking brake / Low brake fluid light
: Low beam indicator light
: High beam indicator light
: Park position indicator light
11
1.5 INSTRUMENT CLUSTER MESSAGE DISPLAY
Overview
Message display
In ‘Charge’
1. INSERT PLUG FULL : Check and insert charge port handle completely.
2. CHARGING : Car is charging.
3. CHARGE COMPLETE : Charging process is completed.
4. CHARGE TERMINATE : Charging process is stopped by using mobile app.
5. CHARGE FAULT : Charging process will slow / stop due to fault in charge system.
Cluster message center displays below messages to user with information and guide to
monitor and perform actions to get best performance.
‘Idle’ / ‘Key ON’
1. UNPLUG CAR : Charge port handle to be removed before turning ‘START’ button ON.
2. AUTHENTICATE KEY : Place remote key fob near ‘START’ button for authentication.
3. SHIFT GEAR TO ‘N’ : Push gear lever to ‘N’ position after successful authentication, if already not in ‘N’ position.
4. WELCOME : Car is ready for drive.
5. RESTART : In case of authentication failure, restart again.
6. POWER SAVE MODE : When charge level drops below 10%, car enters ‘Limp home’ & HVAC will turn OFF.
7. ACTIVATE REVIVE : If charge level drops to 0% SOC, activate ‘REVive’ via ‘Infotainment’ or ‘Mobile App’.
8. GO SLOW : Slow down car if temperature light comes on in cluster with this message.
9. STOP CAR : Stop car for a while if temperature light comes on in cluster with this message.
10. CHARGE CAR : If charge level drops to 0% SOC & all REVives are used, plug-in car for charge.
11. SERVICE DUE : If scheduled service is due, this message will appear for 20 sec’s at every key on after charge.
12. CHECK BRAKES : Press brake pedal once & message will go OFF.
13. TOPUP BRAKEFLUID : If brake fluid is less than minimum level in reservoir, top-up brake fluid.
14. SAFE MODE : In case of any fault in ‘EV drive system’, car will continue to drive with low performance.
15. DRIVE FAULT : In case of any fault in ‘EV drive system’, car will not move from start.
16. ENGAGE HANDBRAKE : If any of door is opened during drive, this message will appear. Always engage parking brake.
17. REVIVE : During ‘REVive’ activation process, this message will appear on cluster.
18. WARMUP BATTERY : If battery temperature is below sub zero, this message will appear & driving range might be low.
19. CHANGE KEY BATT : If remote key fob battery is low, this message will appear, replace key fob battery.
/ ‘Drive’
