5.4 INDICATOR LIGHTS
Instrument Cluster and Controls
40

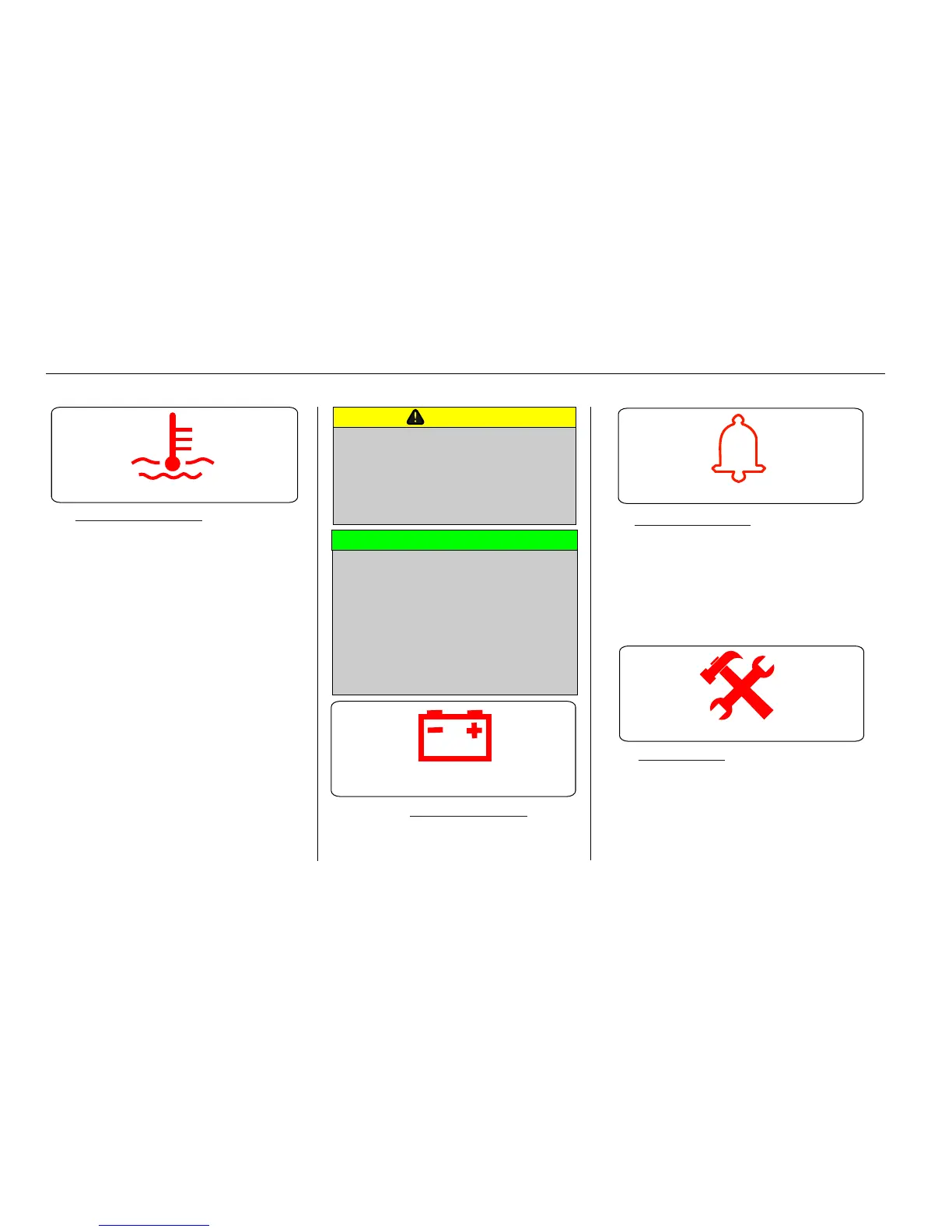

IV. LOW AUX 12V BATTERY LIGHT
Light turns on solid once this battery
voltage goes very low.
LOW AUX 12V BATTERY LIGHT
III. TEMPERATURE LIGHT
This indication comes on blinking or solid in
driving/charging, indicating any of below
components having reached their maximum
operating temperature.
1. Battery 2. Charger
3. Motor 4. Motor controller
a) Flashing temperature light indicates EV
system temperature either too low or high
for normal usage.
b) Solid temperature light indicates EV
system temperature reaching its max
normal operating temperature.
c) During drive -
Solid light with message SLOW CAR, avoid
harsh driving with high acceleration.
Flashing light with message STOP CAR-
stop the car for few minutes untill light
goes OFF.
On charge, if light is solid, indicate
increase in charging time due to high
charging system temperature. If light is
flashing, then charging process will be
suspended due to very high charging
system temperature. If battery
temperature is less than -5°C, it will not
charge.
NOTE
TEMPERATURE LIGHT
In drive with light glowing red, will notice
that vehicle performance is reduced. Still
continuing to drive, temperature light will
flash and vehicle will soon stop to protect
its drive system.
CAUTION
VI. SERVICE LIGHT
This indicates
a) Service due- Flashing light for 20 sec’s
in every drive after charge.
b) Charge / Drive system faults- Solid
light.
SERVICE LIGHT
!
EV WARNING LIGHT
V. EV WARNING LIGHT
EV warning light indicates system faults with
fault message on cluster. It also indicates
messages to user which can be read by
pressing & holding SET button for 5 sec’s to
view messages. Press SET button again to view
more messages.
5.4 INDICATOR LIGHTS / 5.5 SPEEDOMETER & ODOMETER
Instrument Cluster and Controls
41
DOOR OPEN LIGHT
SEAT BELT LIGHT
VIII. SEAT BELT LIGHT
It indicates seat belt light ON when driver
side seat belt is not worn in drive.
VII. DOOR OPEN LIGHT
It indicates driver or passenger side door
or hood or hatch is open. It will be off once
they are closed properly.
ANTI THEFT LIGHT
IX. ANTI THEFT LIGHT
After successful locking, car will enter into
immobilized state & this LED will blinking in
cluster.
5.5 SPEEDOMETER & ODOMETER
Digital speedometer will display vehicle
speed either in kilometers or miles based
on prior selection.
I. ODOMETER
Odometer records & displays total distance
in Kilometers or miles covered by vehicle.
AB
TRIP
ODO
km
mile
II. TRIP METER
Trip A displays kilometers covered in
current drive and gets reset once car is put
on charge.
Trip B can be used to measure distance
traveled on short trips between stops.
Display Length
Total - 0 to 99999 Kms
Trip A- 0.0 to 6553.5 Kms (resets to zero when
put on charge every time after drive)
Trip B- 0.0 to 6553.5 Kms
Odometer will be displayed by default at every
key ON.

Keep track of your odometer reading and
check maintenance schedule regularly for
required services. Increased wear or
damage to certain parts can result from
failure to perform required services at
proper mileage intervals and your
warranty rights may be affected.
CAUTION
In drive, on cluster message center it
displays either cabin or ambient
temperature for a minute and will keep
toggling between them.
NOTE
