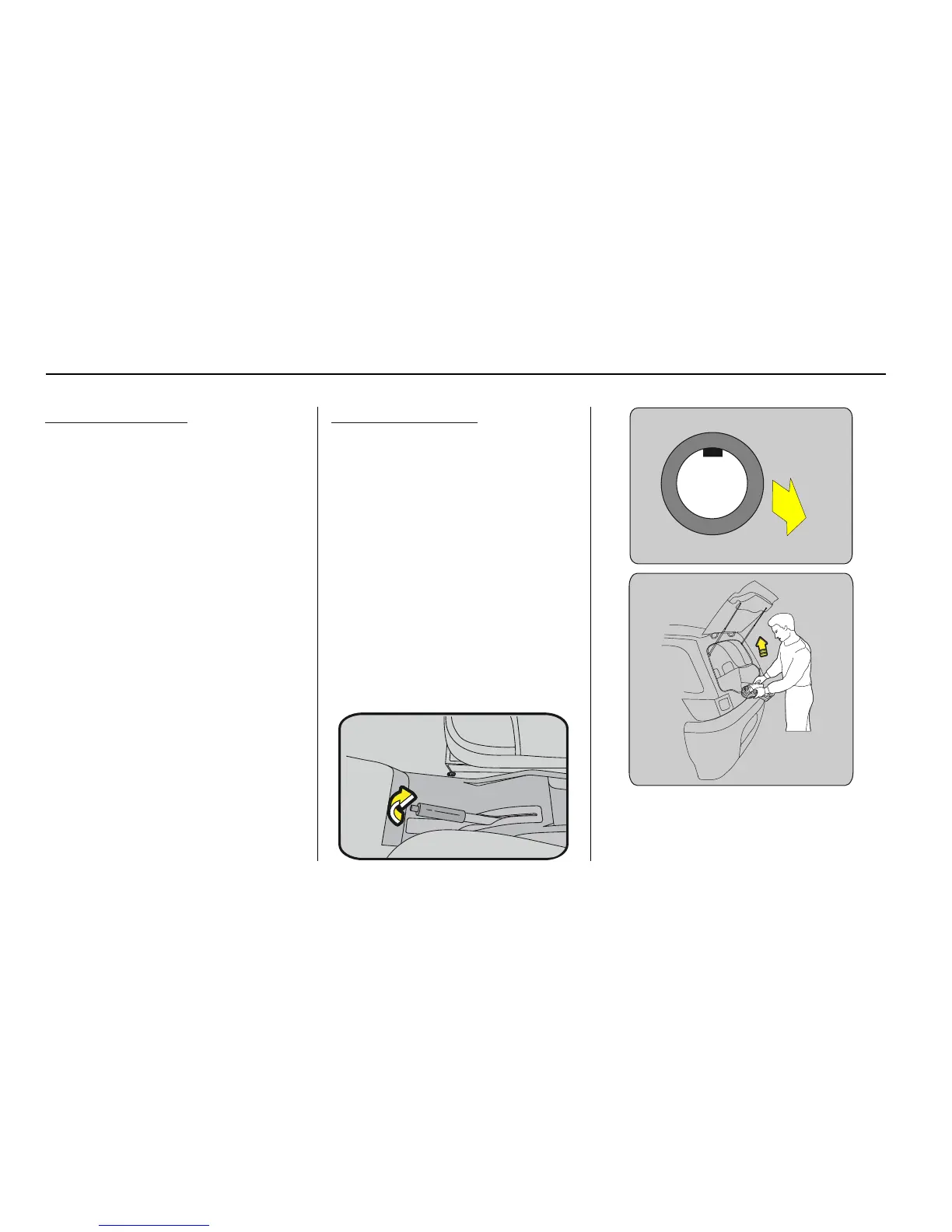

3.2 TYPES OF CHARGING / 3.3 NORMAL CHARGING
3.3 NORMAL CHARGING:
Charging your car is safe and simple in Just
4 steps:
Step 1: Ensure parking brake is applied
STOP button is in OFF position.
Step 2: Open rear hatch and take charge
cable from vehicle, located
behind rear seat.
Step 3: Plug in one side of charge cable to
vehicle charge port, ensure cable
is pushed completely and close
rear hatch.
Step 4: Plug in other end into charge point
on wall socket and turn on power
supply switch.
&
Charging
22
3.2 TYPES OF CHARGING
Car can be charged using house charging unit
installed at home or at office or with charge
cable provided with car.
Normal charging:
Always charge your car using charge cable
supplied with vehicle. It normally takes
approximately 5 hours to full charge from
completely discharged battery.
Fast charging (if equipped)*:
A separate fast charge port is provided in rear
bumper to charge battery power pack quickly
in 60 minutes time. Fast charging cannot be
done at home, this charging can be availed at
places where ‘Fast charge’ stations are
available exclusively for Mahindra Reva
vehicles. It is recommended to use Fast
charging only in emergency needs and not
always.
Refer ‘Fast charging’ in section 3.7
Vehicle is now on charge. Charge Light
(green) indicator will flash & turns solid
once charging is completed.
OFF
START
STOP
3.3 NORMAL CHARGING
Charging
23
Test Button:
Press to evaluate healthy condition of
electric power supply once in a while if
cable is being used sparingly that also
shows cable is working OK or faulty.
push it in fully
Always ensure that rear hatch is closed
during charging process. If not water can
enter from rear and damage electronics
during raining.
CAUTION
Reset Button
Fault LED
Test Button
OK LED
CHARGE PLUG
Charge Light
(Green)
OK LED :
Green LED light indicates normal charging
and healthy earth in charging circuit.
Fault LED :
Red LED light indicates fault in charging
circuit for under or over voltages and
residual current trip fault.
Reset Button:
In event of earth leakage or any other
faults it will trip. Press to reset after
rectifying the issue.
Once charging is completed, first switch
off power supply, then remove charging
cable from plug point and on-board
charge port.
Roll and keep charge cable in its
compartment behind rear seat.
