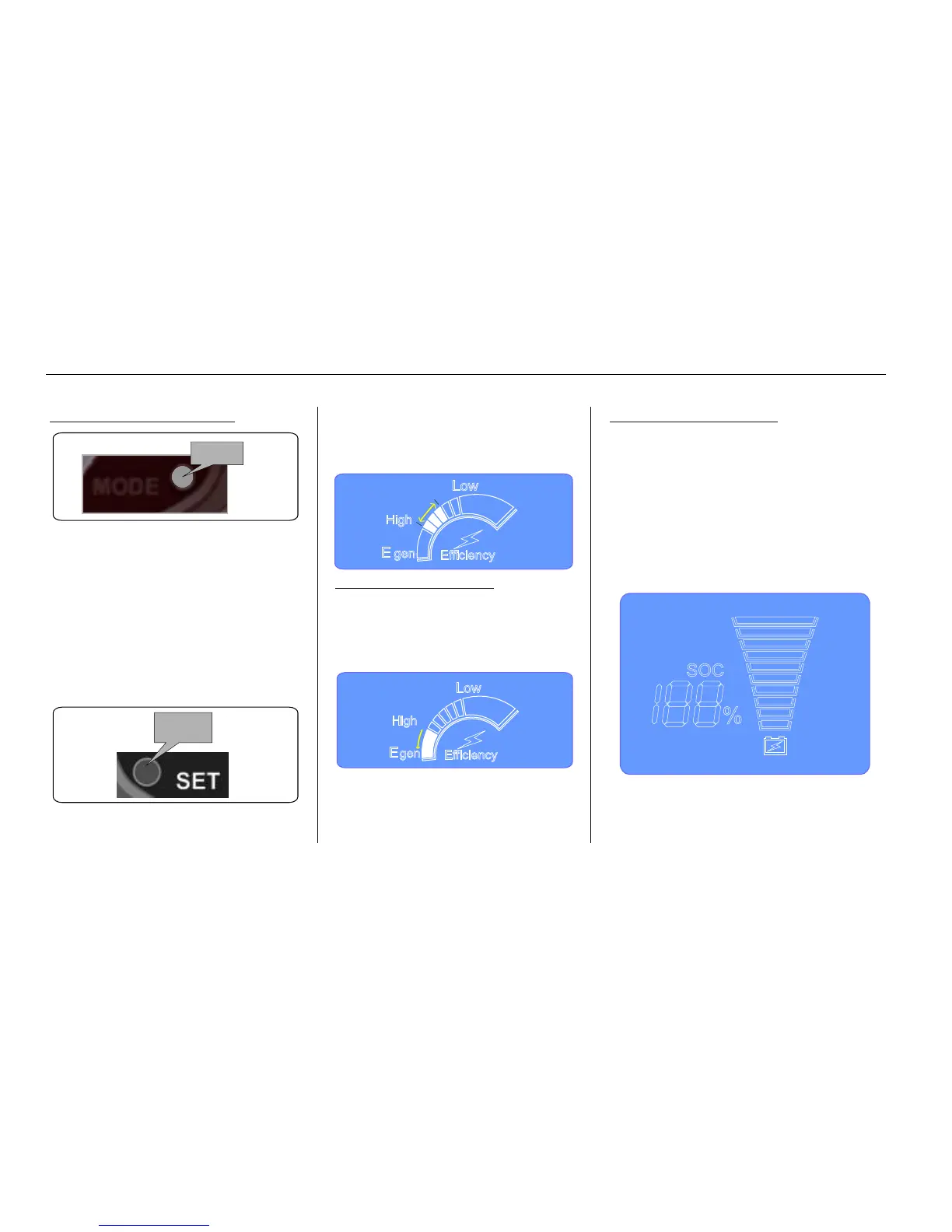

5.6 MODE & SET BUTTON / 5.7 EFFICIENCY / 5.8 SOC & BAR GAUGE
Instrument Cluster and Controls
5.7 EFFICIENCY INDICATOR
Efficiency gauge indicates energy
consumption level during drive. Above
figure indicates good drive efficiency.
42
Above figure indicates regeneration of
energy during drive. By anticipating &
applying gradual braking will ensure
battery will be recharged for extra range.
5.8 DIGITAL SOC & SOC BAR
! Indicates ‘State of charge’ in digital & bar
display.
! Displays all bars if SOC >95%
! Lowest bar will start flashing if SOC drops
below 5% charge.
(Refer chapter 9.0 on “ Starting & Driving” for
more information).
u Press mode button to toggle between
ODO, TRIP A or TRIP B.
u In ODO selection, press & hold for 2
seconds to toggle between kilometers &
miles.
u TRIP B selection, Press & hold for 2 seconds
to reset present value to zero.
uTRIP A, displays present drive cycle mileage
& resets to zero when put on charge.
MODE
Button
Button
u Press SET or MODE button to turn on
cluster illumination.
SOC INDICATOR
5.6 MODE & SET BUTTON
u Press & hold SET button for 5 seconds
to read messages, if EV warning light is
on. press again to read more messages.
5.9 DTE / TTC INDICATOR
DTE- Distance To Empty :
Indicates approximate number of kilometers
that can be driven with available charge.
TTC- Time To Charge:
Indicates approximate time to full charge.
Instrument Cluster and Controls
43
5.9 / 5.10 WIND SCREEN WIPER & NOZZLEDTE & TTC INDICATOR
5.10 WINDSCREEN WIPER
To operate windscreen wiper, turn lever
from OFF position to any of below
operating positions in drive.
Position 1: Intermittent wiping speed
Position 2: Low wiping speed
Position 3: High wiping speed
!
!
Pull lever downward for intermittent
operation.
Push lever upward for low & high
wiping speeds.
WINDSCREEN WASHER NOZZLE
To spray windscreen washer fluid, press
button 1 on the lever, fluid will get sprayed
through nozzles on wiper blades and
wipes off screen for three wipes and then
after 3 seconds with a single wipe.
To increase wiper wiping speed rotate
knob 2 on wiper lever forward and to
reduce rotate back.
1
2
WIPER OPERATION
Position 1
Position 2
Position 3
In sub zero ambient conditions, use anti
freeze liquid in wind shield washer tank.
NOTE
DTE is linear in normal drive speed of 50-
60 km/hr. In event of drive with higher
power consumption / harsh drive, actual
initial DTE shown and kilometer driven
will vary, however last 10% charge will
show the exact DTE that can be travelled.
NOTE
