Mahindra E2O User Manual

12.9 FUSE BOX
Appearance & care
94

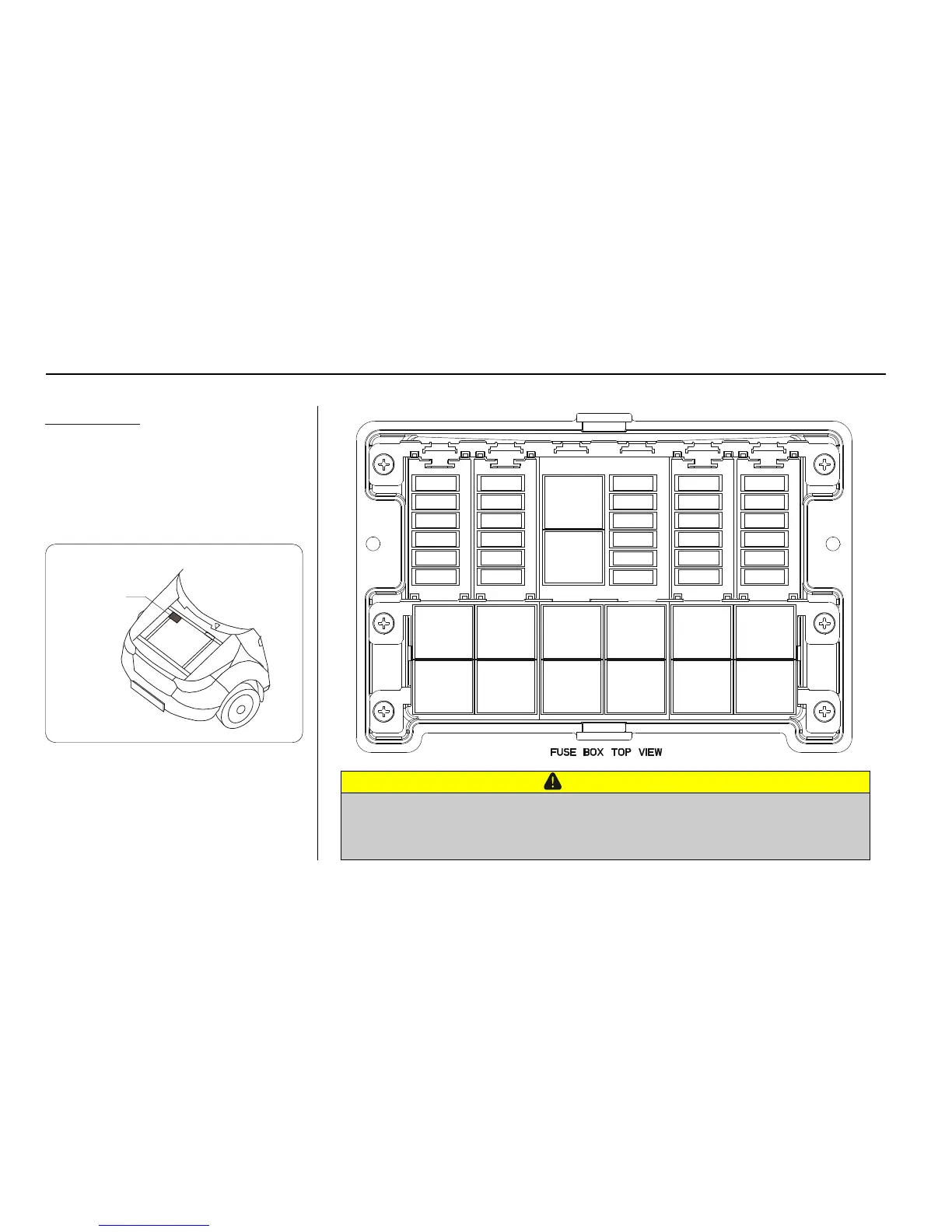

12.9 FUSE BOX
Components in car are protected from short
circuits by fuses. Fuse box containing various
fuses with their ratings for different
operations is located below hood. It also has
relays for other functions.
FUSE BOX
If any of car functions are not working
satisfactorily or has stopped working, it
could be due to a blown fuse or short circuit.
Replace fuse & get short circuit rectified at
authorised service center.
Always use fuses of correct rating. Do not use wire or aluminum for a fused circuit.
Remember to replenish fuse box with spare fuses that can be purchased from Authorised
Service Centre.
CAUTION
RELAY CN 192
IGN- LATCH
RELAY CN 185
PARK LAMP
RELAY CN 186
BLOWER
RELAY CN 184
CABIN
HEATER
RELAY CN 182
HI BEAM
RELAY CN 187
CONDENSOR
RELAY CN 166
KEY RELAY
DRIVER
DUMMY
RELAY CN 183
LOW BEAM
RELAY CN 188
FOG LAMP
RELAY CN 199
WIPER
DUMMY
RELAY CN 169
IGNITION-2
RELAY CN 168
IGNITION-1
F1 F7
F8
F9
F10
F11
F12F6
F5
F4
F3
F2
F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
12.9 FUSE BOX
Appearance & care
95
FUSE REPLACEMENT:
Open fuse box, identify amperage and
location by referring fuse list on fuse cover.
Check fuse, if blown use fuse puller to replace
with spare fuse provided on inside of fuse
box cover after rectification of problem.
Replenish fuse & refit fuse box cover.
F1 15 Head lamp low beam LH & RH
F2 3A Relay H/L low & high beam, position lamp
F3 3A Brake lamp & high mount stop lamp
F4 7.5A Horn
F5 15A LH & RH door lock, Rear hatch-release
F6 15A Front wiper
F7 15A Head lamp high beam LH & RH
F8 5A Position, roof, License lamps & back illumination
F9 3A Remote relay blower, remote & heater relay
F10 ---------- Empty
F11 10A Remote & Condenser fan, BLDC controller fan
F12 15A Blower & speed regulator module
F13 30A Power window motor LH & RH
F14 20A Electric vacuum pump (EVP)
F15 15A Rear hatch defroster
F16 7.5A Front fog lamp
F17 3A Relay -key ON/OFF (Ignition)
F18 3A OVRM, H/L adjuster LH & RH, switch
F19 15A Side indicators & Hazard
F20 7.5A Infotainment system
F21 3A HVAC control module & IP cluster
F22,F23 & F24 --- Empty
F25 3A Ignition I/P to BCM & IEMS
F26 7.5A Aux 12V socket
F27 3A Ignition I/P to KSI SSR
F28 3A Wiper & washer
F29 3A IGN I/P to HVAC, infotainment & OBD
F30 10A Switch supply to PRNDL, reverse lamp,camera & Motor fan
FUSE NO RATING (A) CIRCUIT PROTECTED
RELAY NO RELAY NAME
Cn166 Key relay driver
CN168 Key relay 1
CN169 Key relay 2
CN182 Head light low beam
CN183 Head light High beam
CN184 Air condition-Heater
CN185 Park lamp
CN186 Blower remote operation
CN187 Condenser Fan
CN188 Front fog lamp
CN192 Key switch
CN199 Wiper
OK
BLOWN
FUSE PULLER
SPARE FUSES
