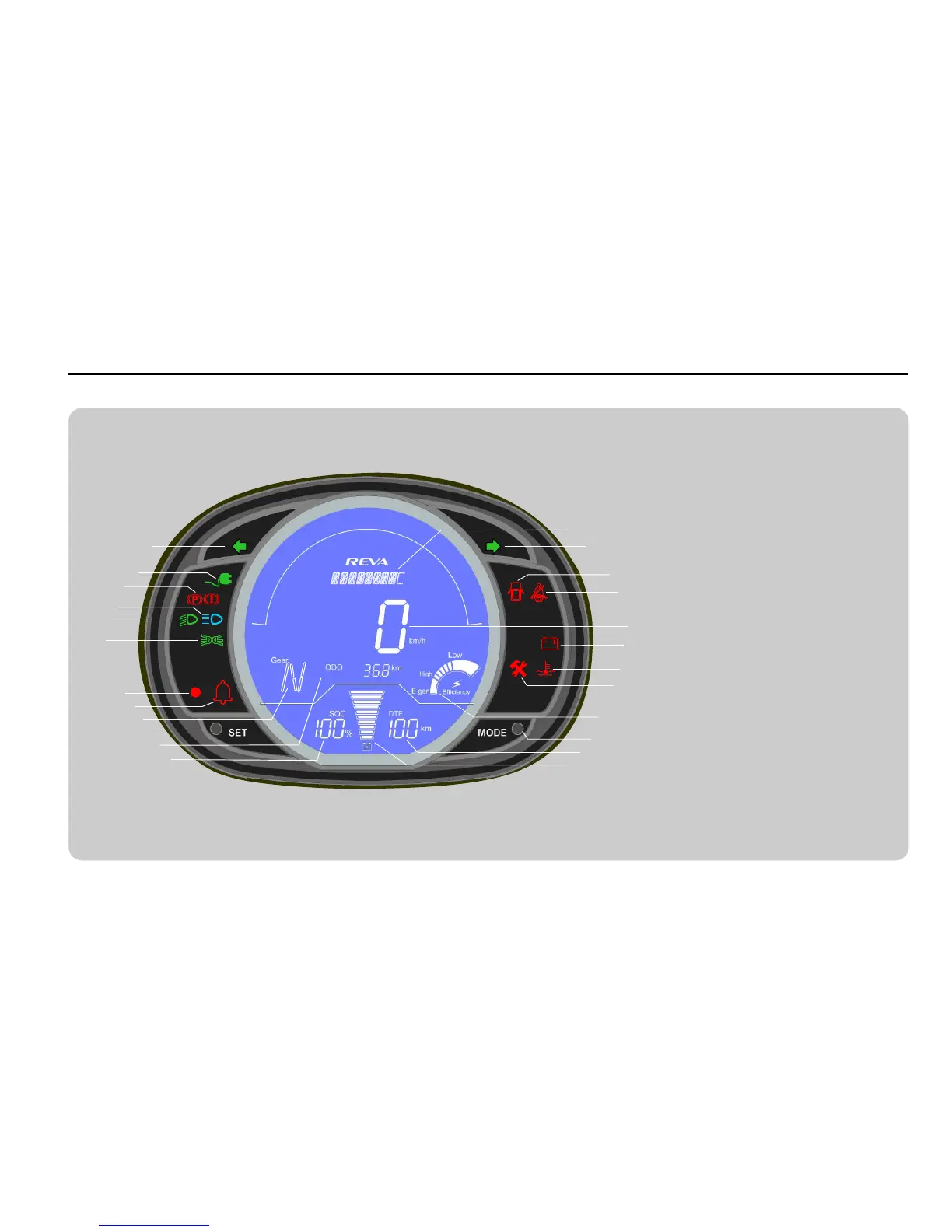

5.1 INSTRUMENT CLUSTER
1. LH turn indication light
2. Charge indicator light
3. Parking & low brake fluid light
4. High beam light
5. Low beam light
6. Parking light
7. Anti theft
8. EV warning light
9. Gear
10. Set button
11. Trip & ODO meter
12. Digital SOC
13. SOC bar
14. Time to charge / Distance to empty
15. Mode button
16. Drive efficiency
17. Service light
18. Temperature light
19. Low auxiliary battery light
20. Speedo meter
21. Seat belt (Driver side)
22. Door open
23. RH turn indication light
24. Message display
!
1
2
3
5
4
6
7
8
9
12
13
18
11
14
16
15
17
20
21
22
23
10
19
24
