1.10 Beverage Holder
A beverage-holder is provided for rear seat
passenger to place a cup or a bottle.
1.9 PARKING BRAKE
To Engage-
1. Pull brake lever (1) upwards.
To Disengage-
1. Press & hold button (2) on lever.
2. Release handle (3) with a slight downward
push.
3. Ensure handle is fully released before
driving car.

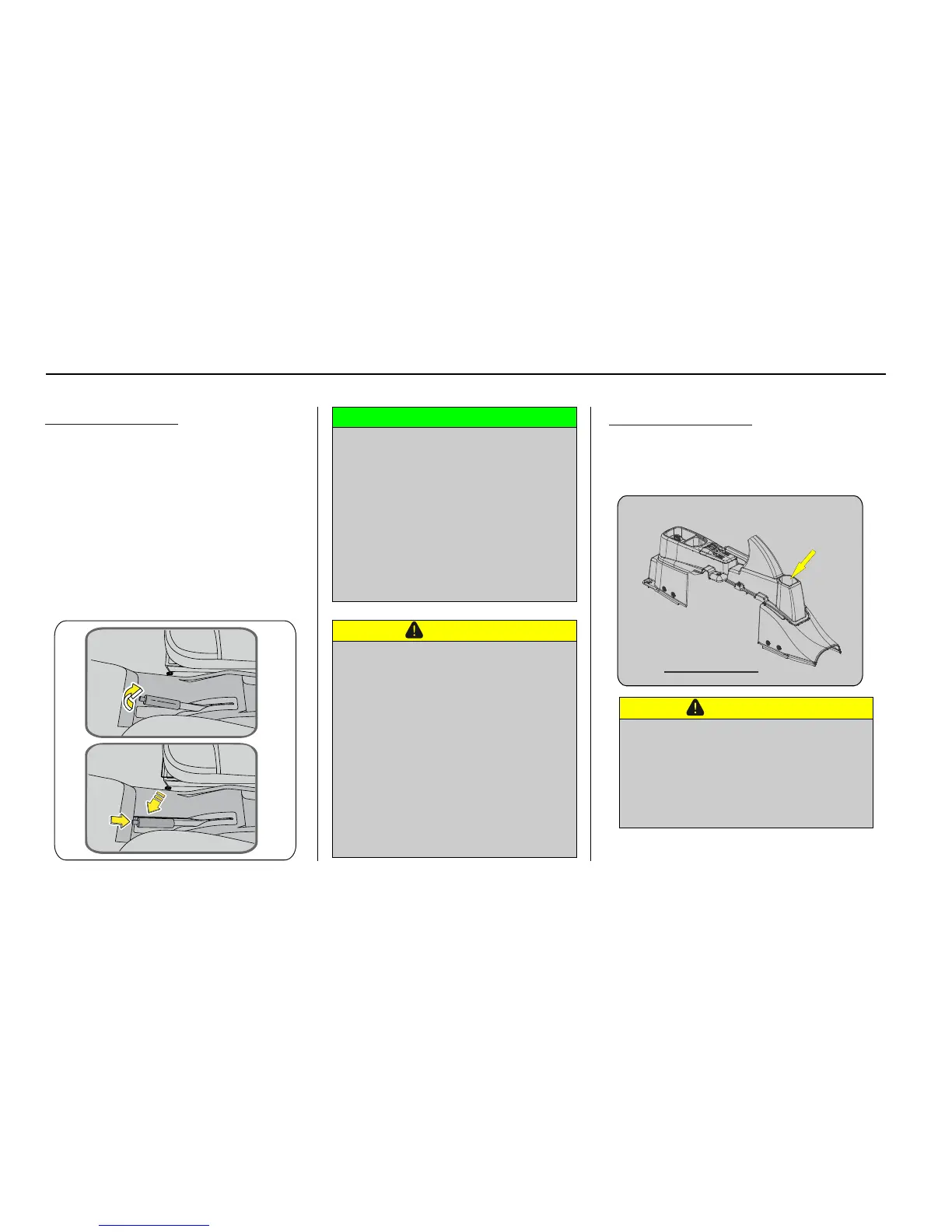

1.9 PARKING BRAKE / 1.10 BEVERAGE HOLDER
Overview
NOTE
a) In event of parking brake not
released during drive, beep sound
will be heard indicating user to
release parking brake.
b) In the event of parking brake not
engaged & door opened, beep
sound will be heard indicating user
to pull parking brake before exiting
from car.
!
!
Do not leave children or adults
requiring special attention in car
when parked in gradients with hand
brakes on, as car does not have gear
lock system and unknowing release
of parking brake can result in rolling
of car and cause accident resulting in
injury / death.
Never drive your car with parking
brake engaged. Doing so, your drive
range will reduce.
CAUTION
14
1
Use ‘Beverage holder’ carefully as
spilled liquid if very hot can scald you
or other passenger. Spilled liquids can
also damage upholstery, carpeting
and electrical components.
CAUTION
Cup Holder
Center console
2
3
1
Overview
15
1.11 VOLTAGE LINES & MAIN COMPONENTS LOCATION
Over view:
1. Charge port
2. Charge port harness
3. Fast charge port
4. Fast charge port contactor
5. Charger input - 220V AC
6. Charger
7. Charger - 48V output
8. Drive Motor controller
9. Shunt
10. Contactor
11. Battery pack
12. Air conditioner motor
13. Air conditioner controller
14. Pack sense harness
15. Data port
16. Telematic unit
17. Wake up relay contactor
18. IEMS
19. Auxiliary 12V battery
1
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
2
19
11
12V DC
48V DC
230V AC
