Makita DTD152 Technical Information

July 2015

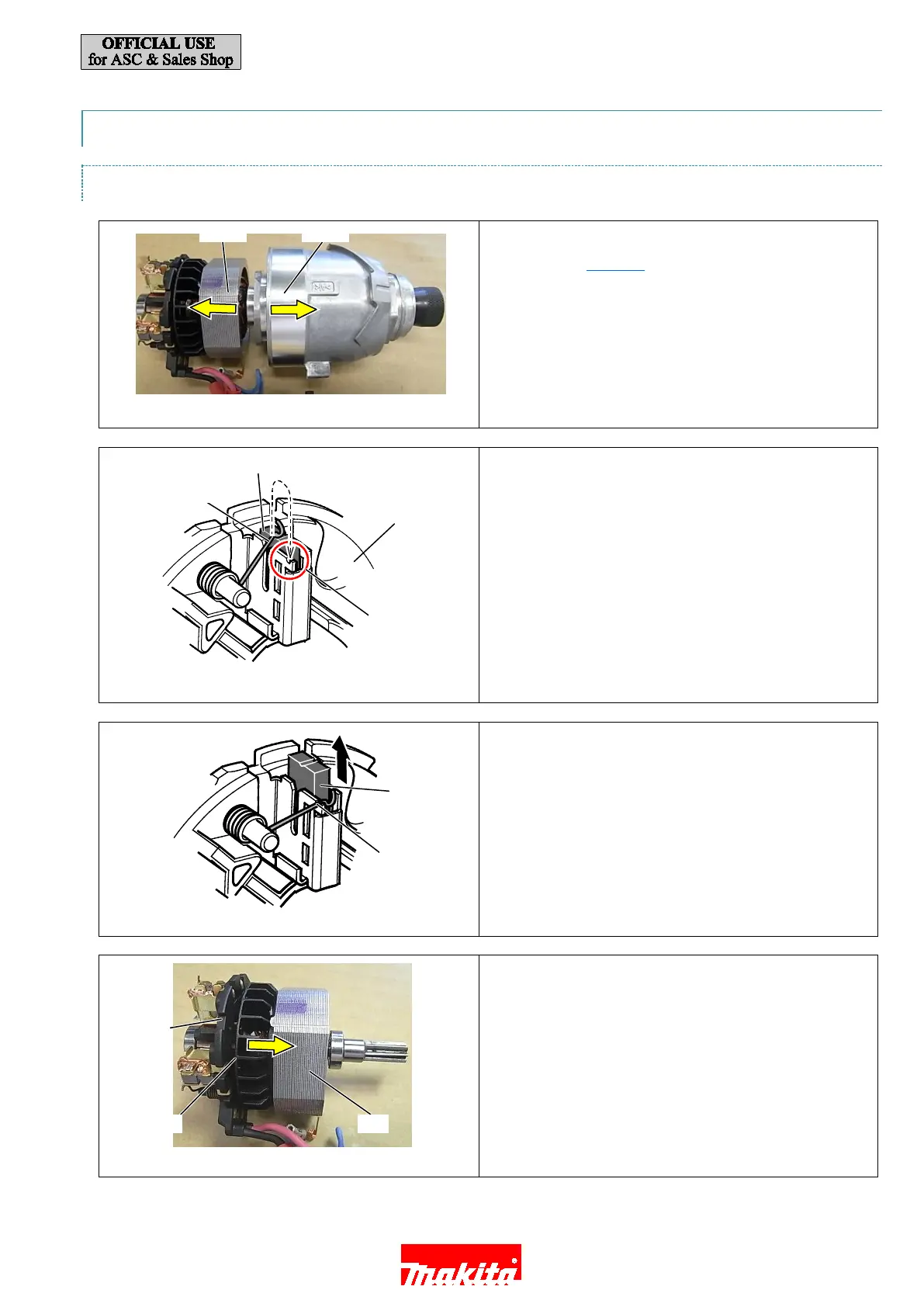

3.3.2. ARMATURE
3.3.2.1. DISASSEMBLING
1. Remove Hammer case section (8-28) from Motor section
(29-33). (See Figure 15
)
Figure 15
2. Shift the tail of Torsion spring from the top of Carbon
brush (31) to the Notch of Brush holder complete (32).
Carbon brush (31) gets free from the pressure of Torsion
spring.
Note: When shifting Torsion spring’s tail, hold Torsion
spring not to fall off from Brush holder complete
(32).
Figure 16
3. Disconnect Carbon brush (31) from the commutator of
Armature (30) by pulling it up.
Figure 17
4. Disassemble Armature (30) and Yoke unit (29) from Brush
holder complete (32).
Figure 18
(31)
(32)
(30)
(29)
(8-28)
(29-33)
Tail of Torsion
spring
Notch of Brush
holder (32)
(32)
(31)
Tail of Torsion
spring
11 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
