Makita DTD152 Technical Information

July 2015

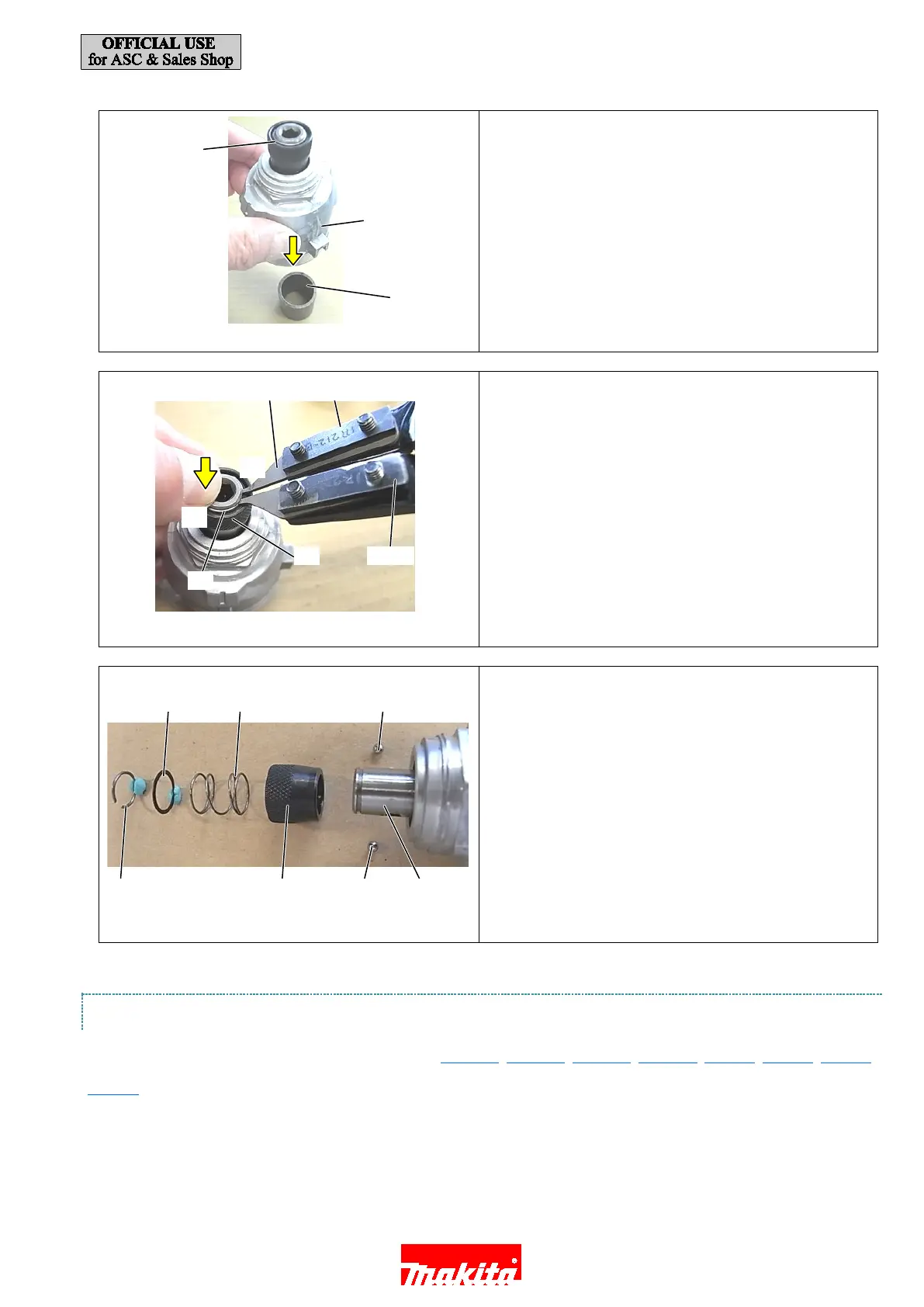

3. Use 1R232 for holding Anvil (16) inside of Hammer case
complete (13) firmly for easy removal of Ring spring 11
(8).
Figure 29
4. Remove Ring spring 11 (8) while checking the following
points.
(A) Press the top of Bit sleeve (11) with a thumb so as not to
pop out Compression spring 13 (10).
(B) Expand the end gap of Ring spring 11 (8) with 1R003,
1R212-B and 1R212-A.
Figure 30
5. Bit holder section can be disassembled as shown in the
figure on the left:
- Ring spring 11 (8)
- Flat washer 12 (9)
- Compression spring 13 (10)
- Bit sleeve (11)
- Steel ball 3.5 (15) x 2
- Anvil (16)
Figure 31
3.3.3.2. ASSEMBLING
Assemble by reversing the disassembly procedure. (See Figure 31, Figure 30, Figure 29, Figure 28, Figure 9, Figure 8, Figure 7,
Figure 6)
1R232
1R003
1R212-A
1R212-B
(A)
(8)
(13)
(11)
(8)
(8)
(11)
(16)
(9)
(10)
(15)
(15)
(B)
16 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
