Makita DTD152 Technical Information

July 2015

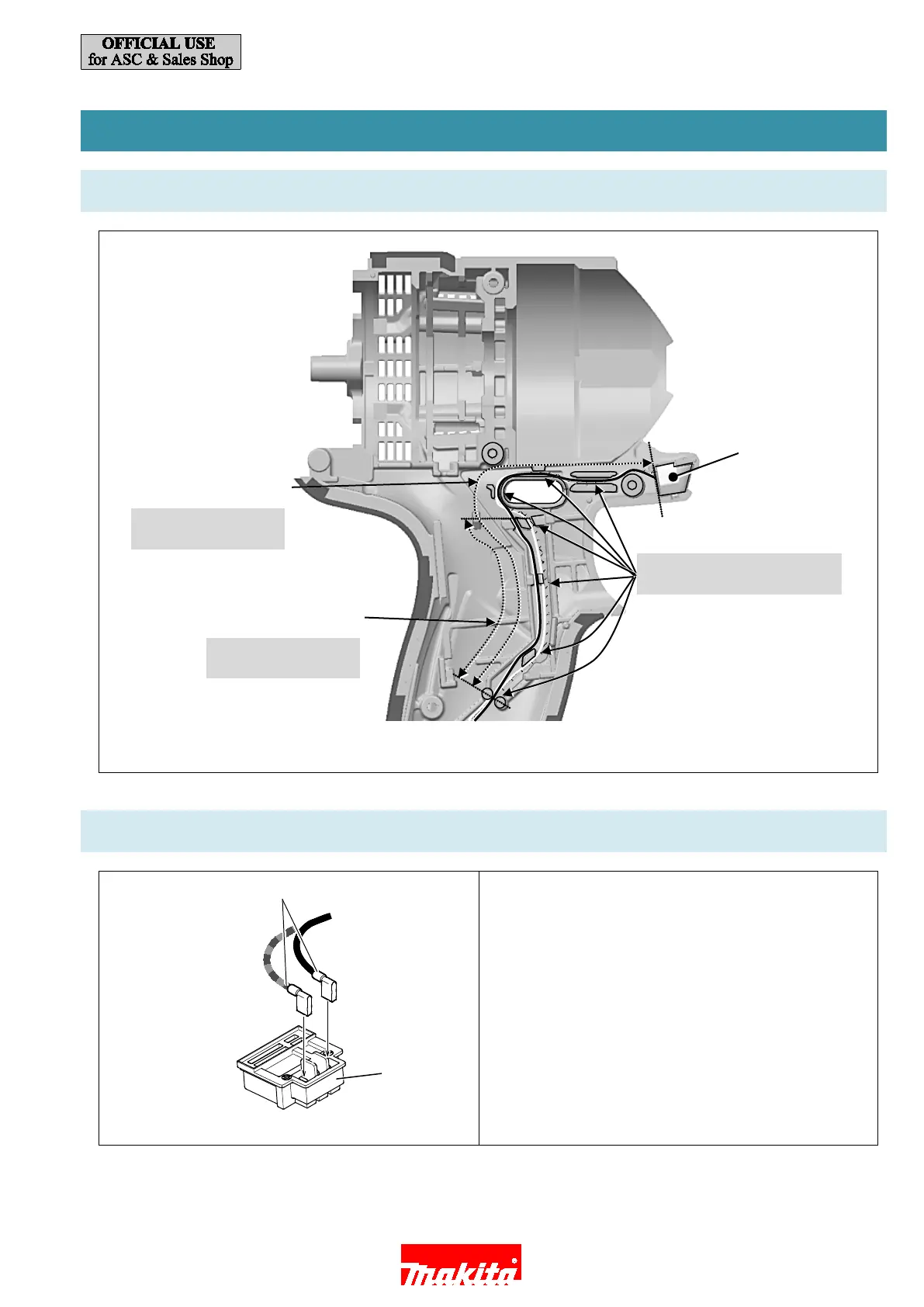

5. WIRING DIAGRAM
5.1. LED SECTION
Figure 41
5.2. TERMINAL SECTION
Connect Flag terminal so that the wire connecting portions
face the center of Terminal (7).
Figure 42
Wire connecting portions
LED Lead wires must be
tight in Area A.
LED
Area A
Area B
LED Lead wires must not
be crossed in Area B.
Put these Lead wires into any of
these Lead wire holders.
(7)
21 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
