Makita DTD152 Technical Information

July 2015
3.3.1.2. ASSEMBLING
1. Put O ring 40 (27) into the groove of Bearing box
complete (28).
2. Put the small diameter portion of Internal gear 51 (26)
on O ring 40 (27) in Bearing box complete (28).

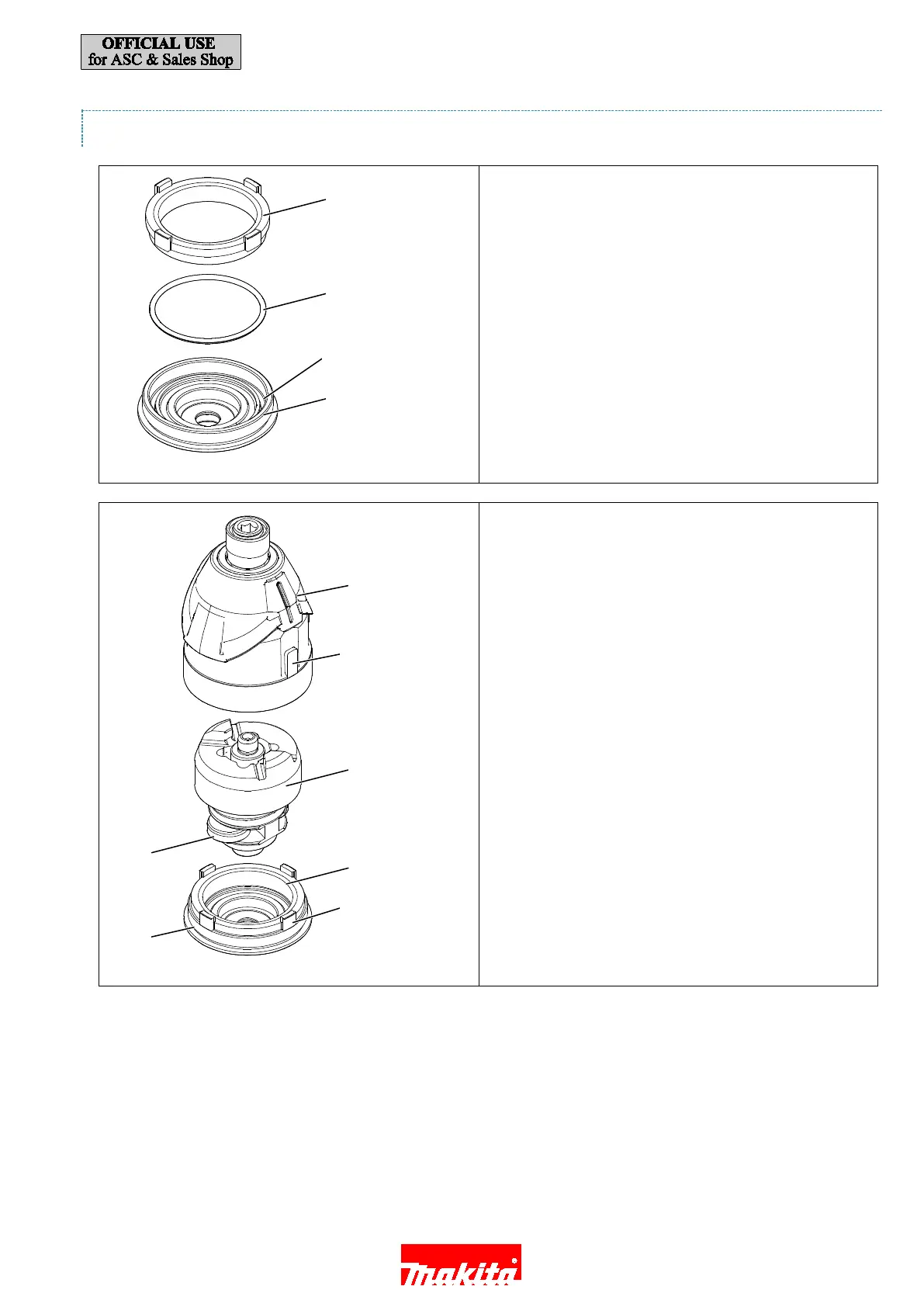

Figure 10
3. While engaging Spur gear 22 (22) with Internal gear 51
(26), set Hammer section (17-25) in place.
4. Align the stopper portion of Hammer case complete
section (8-16) with either one of the 4 projections of
Internal Gear 51 (26), then put Hammer case complete
section (8-16) on Bearing box complete (28).
Figure 11
Groove of Bearing box
complete (28)
Stopper portion
Projection of Internal
gear 51 (26)
(26)
(27)
(28)
(8-16)
(17-25)
(26)
(22)
(28)
9 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
