6. ASSEMBLY OF BRUSH HOLDER COMPLETE TO ARMATURE
6.1. OVERVIEW

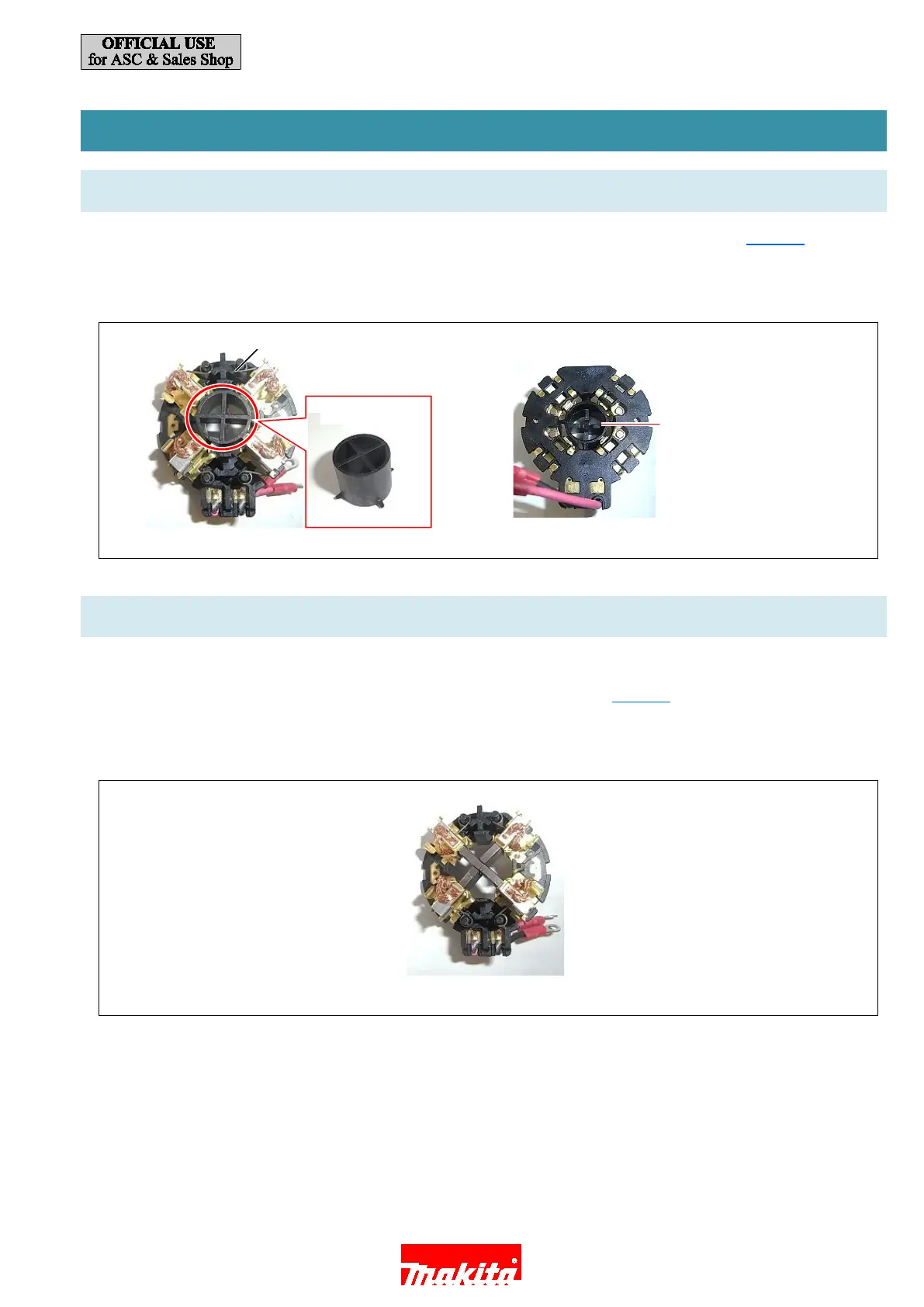

This model’s Brush holder complete (32) for repair has Spacer in its center part for easier repairing. (See Figure 49)
Follow the instructions below for assembling.
Figure 49
6.2. CAUTION
(1) If you remove Spacer before assembling Brush holder complete (32) to Armature (30), Carbon brush (31) comes out from
Brush holder complete (32). This makes it difficult to assemble Armature (30). (See Figure 50
)
(2) Carbon brushes may have breakage if they touch each other.
Figure 50
(32)
Concave shape fitted to the
outer circumference of the
bearing of Armature (30)
Rear view
裏
Spacer
25 / 27

Makita DTD152 Specifications

General

Power source	Battery
Battery voltage	18 V
Battery level indicator	Yes
Product color	Black, Blue
Idle speed (max)	3500 RPM
Screw diameter (max)	16 mm
Maximum torque (hard applications)	165 N⋅m
Vibration emission	10.5 m/s²

Weight and Dimensions

Depth	137 mm
Width	79 mm
Height	238 mm
Weight	1500 g
