Maintenance work on the carrier
7.3 Engine
09.03.2018
Maintenance manual 3 302 746 en 7 - 13
GMK5200-1
7.3.2 Topping up the oil
Data on the prescribed oil specification; à Engine manufacturer's documenta-
tion
.
Oil
Prerequisites – The truck crane must be level.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.

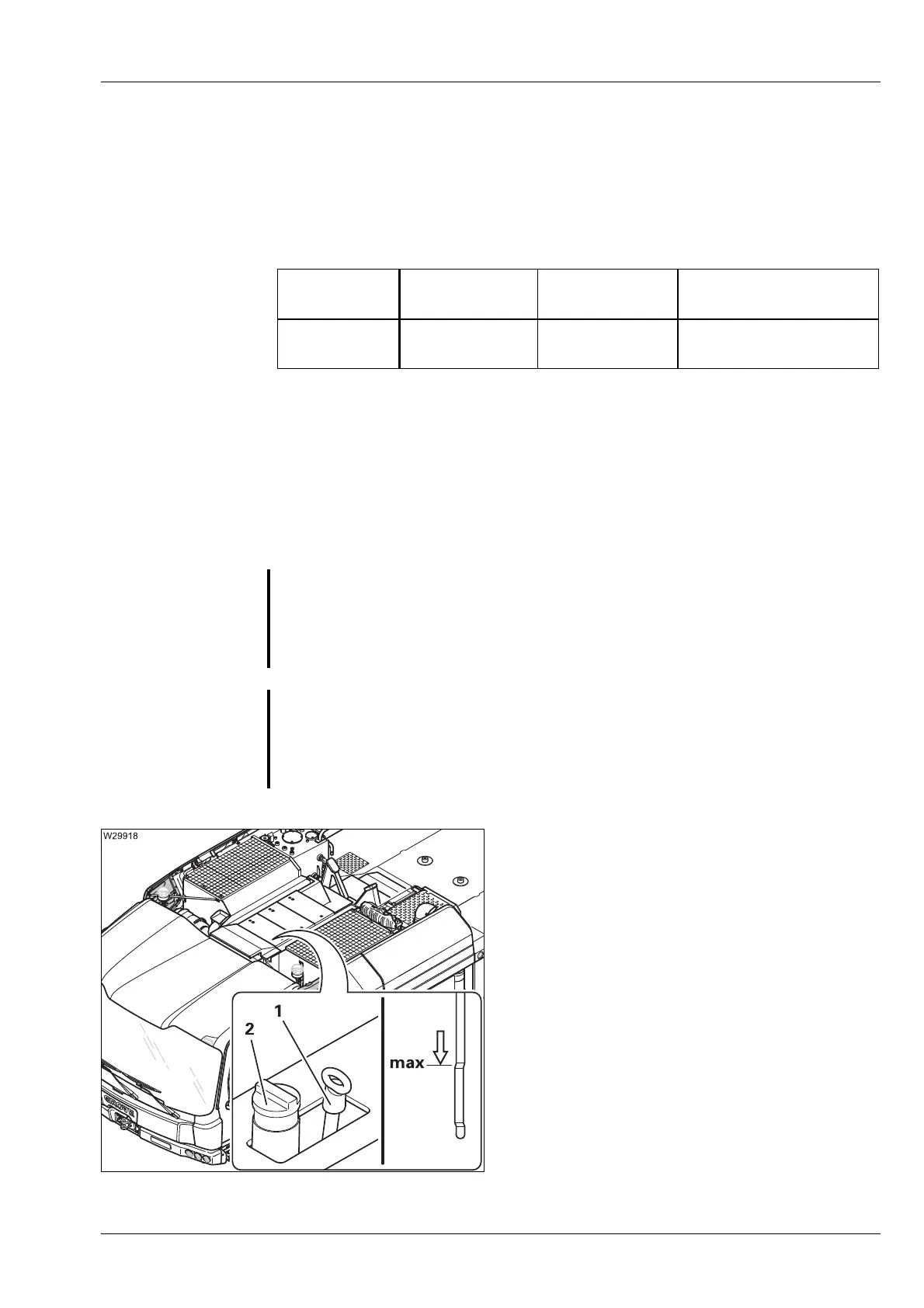

Topping up the oil
• Add oil through the filler neck (2) up to the
max. mark.
• Close the filler neck with the cap.
• Put the dipstick (1) into the dipstick tube
after checking the oil level.
Engine oil in
litres (gal)
Designation to
DIN 51502
Specification
Classification
GROVE part no.
39 (10.3) HD - CD MIL-L 2104 C
DB 228.5
SAE 5 W-30
03329588
S
Risk of damage to the engine if the oil level is too high.
Do not overfill; the oil level must not be higher than the max. mark (arrow
marking). Drain off oil if necessary;
à Engine manufacturer's documentation.
G
Risk of burns when the engine is hot.
During operation, the engine and add-on parts reach temperatures up to
400 °C (750 °F). Wear appropriate protective gloves and be careful not to
come into contact with hot parts.
