Part Number STH025 11/16 283

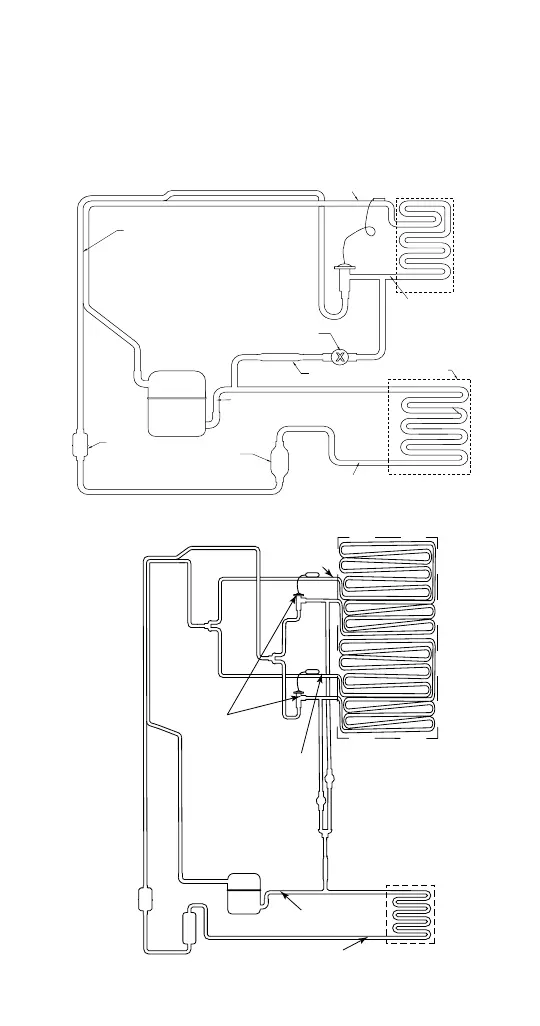

Refrigeration Tubing Schematics
SELFCONTAINED AIR OR WATERCOOLED
I0300/I0320/I0520/I0450/I0500/I0600/I606/I0850/
I0906/I1000/I1200
X
RECEIVER
(WATER COOLED ONLY )
DRIER
COMPRESSOR
STRAINER
CONDENSER
AIR OR WATER
HOT GAS SOLENOID VALVE
EXPANSION
VALV E
EVAPORATOR
HEAT
EXCHANGER
T1 Thermistor
T4 Thermistor
T3 Thermistor
T2 Thermistor
I1106
CONDENSER
COMPRESSOR
HEAT
EXCHANGER
RECEIVER
DRIER
EVAPORATOR
STRAINER
HARVEST
SOLENOID VALVES
EXPANSION
VALV ES
T2 Thermistor
T4 Thermistor
T1 Thermistor
T3 Thermistor
x
x
