MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
REMOTE CONTROL

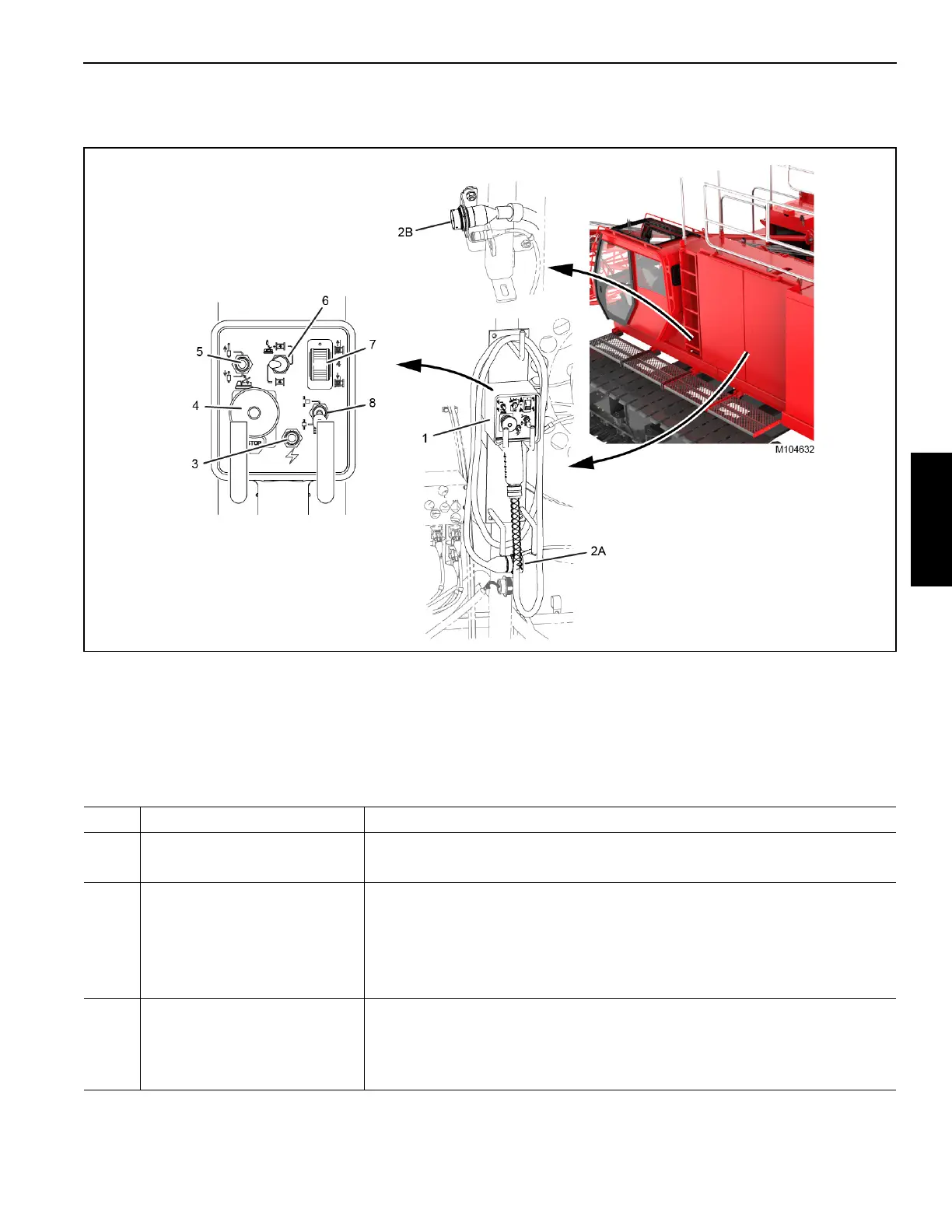

Table 3-11. Identification and Operation of Remote Controls
To operate the remote control (1):
• The electric cable (2A) must be connected to the receptacle (2B) in the left enclosure.
• The Boom Butt Configuration must be selected in the RCL/RCI Display.
• The remote control must be turned on in the Main Display.
See Section 4 of this manual for Assembly and Disassembly procedures using the remote control (1).
Item Name Description
3 Power Toggle
• Push UP and hold to turn ON power to the hand-held remote control.
• RELEASE to turn OFF power to the hand-held remote control.
4 Emergency Stop Button
• Press to stop the engine and all remote control functions.
• Pull up to restart the engine.
Only use this button in an emergency because the engine will stop and
any function being used will come to an abrupt stop.
In normal situations, use the ignition switch to stop the engine.
5 Gantry Cylinders Switch
• Push UP and hold to EXTEND the gantry cylinders (raise gantry).
• RELEASE to STOP the cylinders. The valves on the cylinders will lock them
in position.
• Push DOWN and hold to RETRACT the gantry cylinders (lower gantry).
