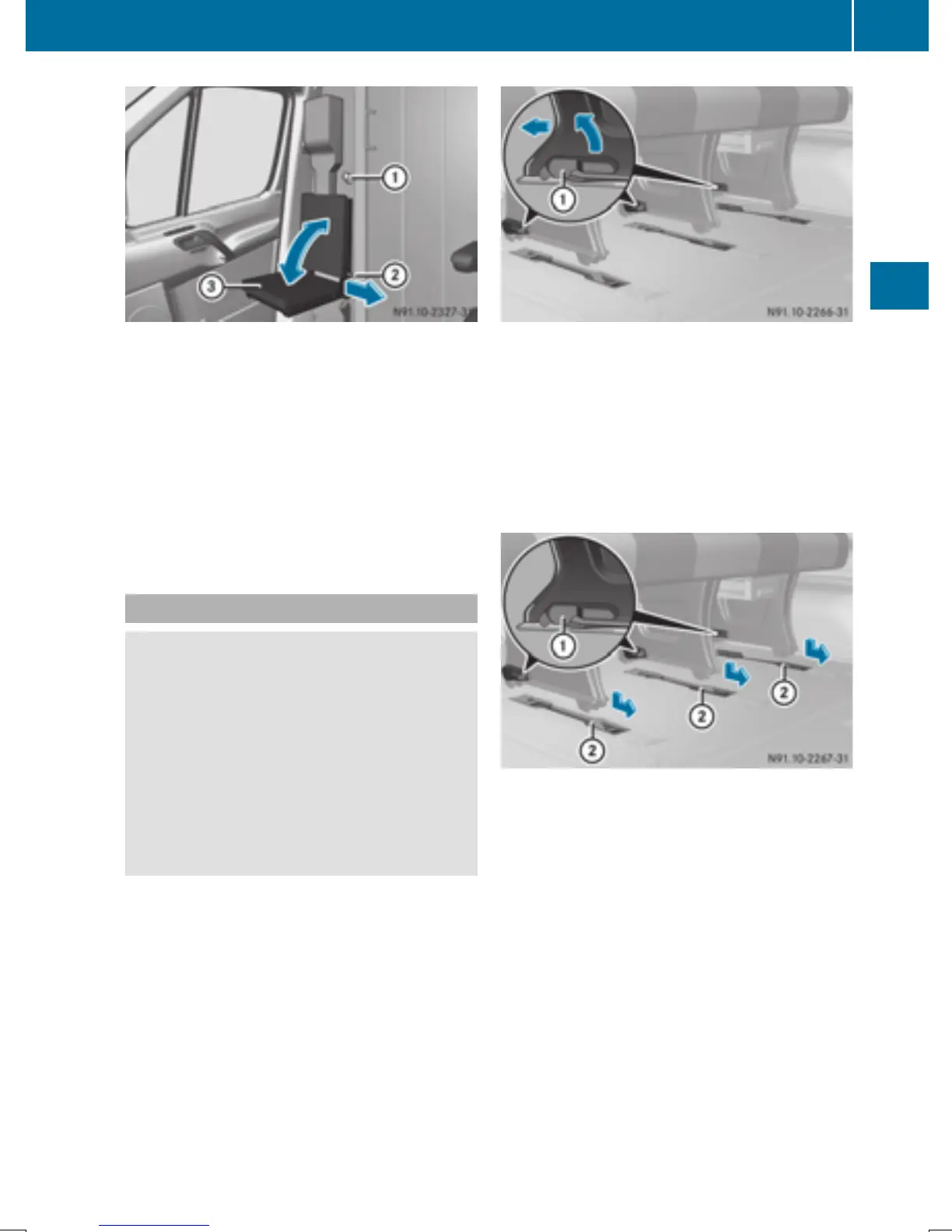

Folding seat (example with partition sliding door)
X
Remove key : from the partition sliding
door.
X
Pull grip ; of the catch in the direction of the
arrow and fold seat cushion = up or down.
X
Release grip ; of seat cushion = in the cor-
responding end position.
X
Move the seat cushion = until it engages.
Grip ; of the catch must lie completely on
the seat frame.
Rear bench seat (Passenger Van)
G
WARNING
If the rear bench seat is not installed as descri-
bed or an unsuitable rear bench seat is instal-
led, the seat belts may not provide protection
as intended. There is an increased risk of
injury.
Install the rear bench seat as described. Only
use rear bench seats that are approved for
your vehicle by the distributor named on the
inside cover page.
!
For safety reasons, the four-seat rear bench
must only be removed or installed at a quali-
fied specialist workshop.
Keep the seat bench mounting recesses in the
vehicle floor free from dirt and foreign objects.
Locking mechanism lever on the feet of the bench
seat
X
To remove the rear bench seat: swing all
levers : of the bench seat completely
upwards.
The bench seat moves back into the seat
mounting recesses on the vehicle floor.
X
Lift the bench seat upwards out of the seat
mounting recesses.
i
Do not exceed the maximum permissible
number of seats for models registered as
passenger vehicles.
X
To install the rear bench seat: observe the
prescribed installation position of the bench
seat.
Install the two-seat bench seat only on the
driver's side.
X
Check mounting shells ; on the vehicle
floor.
X
Position the bench seat in the direction of
travel in corresponding mounting shells ;.
X
Slide the bench seat forwards until you hear
the locking mechanisms engage.
X
Check levers : on the anchorages of the
bench seat.
All levers : must be flush to the vehicle floor.
Seats
75
Seats, steering wheel and mirrors
