Release retaining lugs ; and take the bulb
holder out of the tail lamp.
X
Applying light pressure to the bulb, turn it
counter-clockwise and remove it from the
bulb holder.
X
Press the new bulb into the bulb holder and
screw it in clockwise.
X
Press the connector into the bulb holder.
X
Insert the lamp lens.
To do this, clip the bulb holder into the three
holes provided at the side and tighten
screws :.
License plate lamp
X
Switch off the lighting system.
X
Insert a screwdriver or similar implement into
recess ; and carefully pry off lamp lens :.
X
Pull the bulb out of the bulb holder.
X
Insert a new bulb.
X
Align lamp lens : and clip it in so that it
engages.

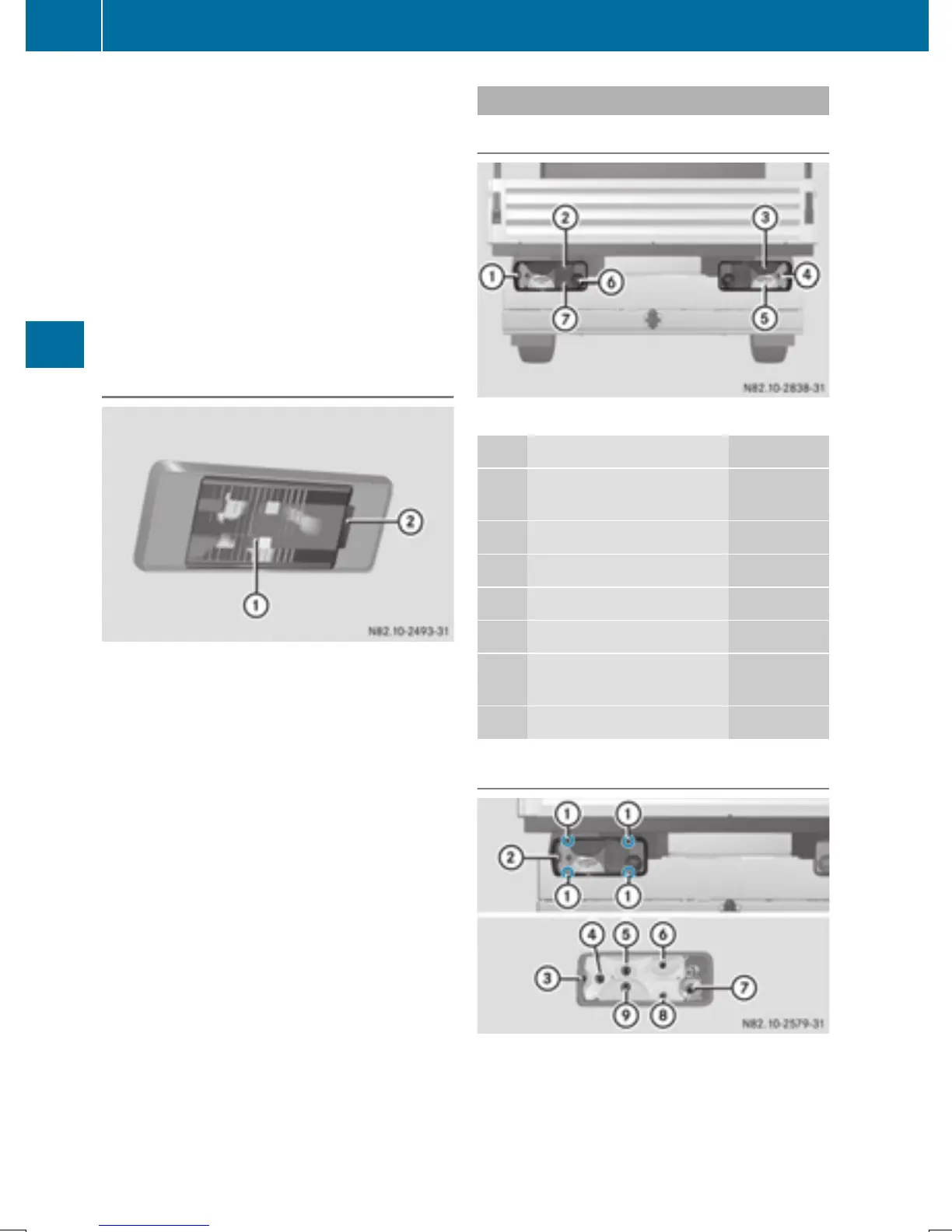

Rear bulbs (Cab Chassis)
Overview of bulb types
Chassis (example: Cab Chassis)
Lights Bulb type
:
Perimeter lamp/stand-
ing lamp
R 5 W
;
Tail lamps R 5 W
=
Brake lamps P 21 W
?
Turn signal lamps PY 21 W
A
Backup lamps P 21 W
B
Rear fog lamps (driver's
side)
P 21 W
C
License plate lamp R 5 W
Tail lamps
:
Screws
;
Lamp lens
=
Perimeter lamp/standing lamp
?
Turn signal lamps
A
Brake lamps
B
Tail lamps
90
Changing bulbs
Lights and windshield wipers
