Fuel system
Description and roadside assistance
53
Guidelines for Breakdown Services (S
ubject to technical modifications)
i

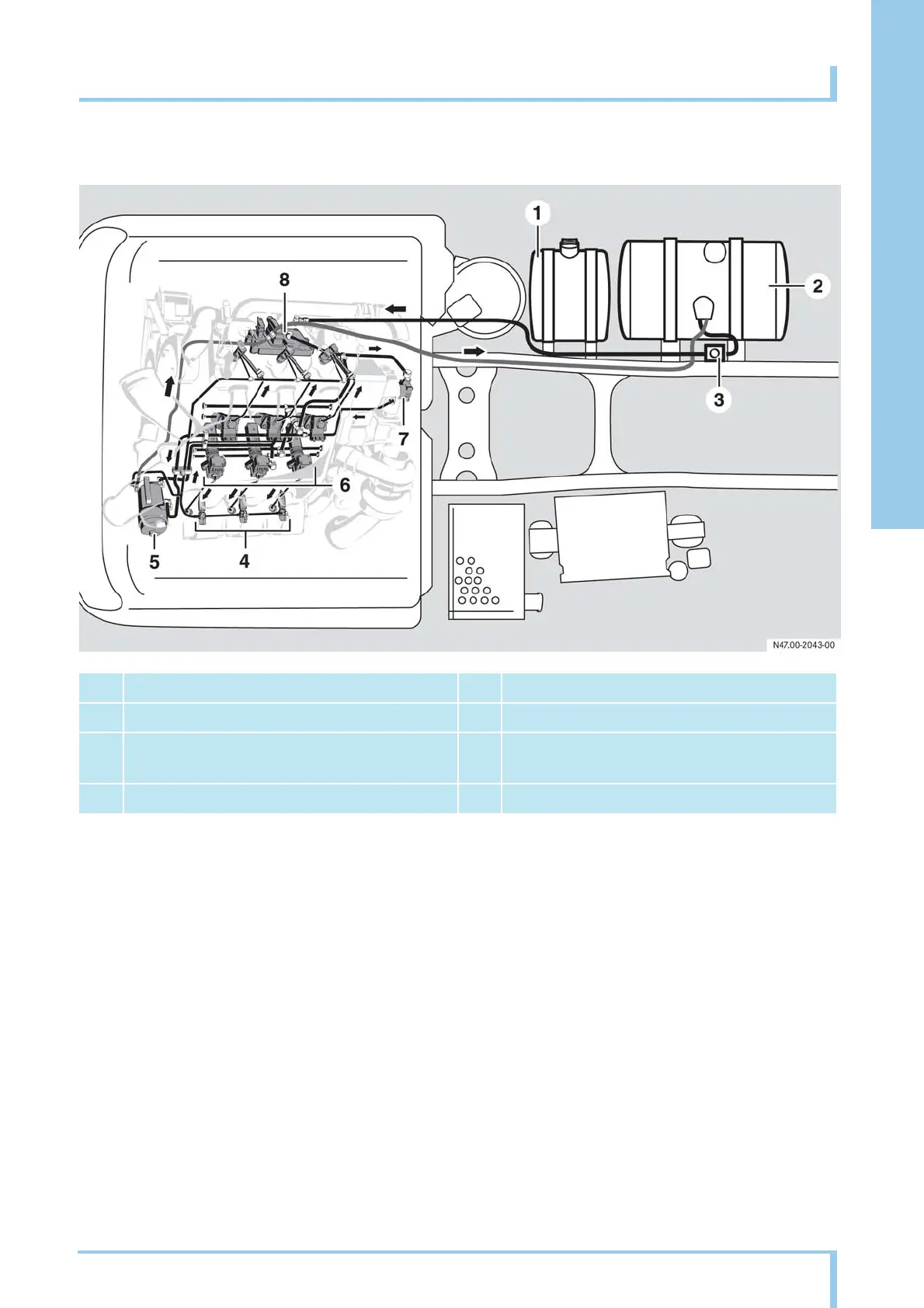

Fuel system overview (example)
1
AdBlue
®
tank
5
Fuel filter
2
Fuel tank with fuel pump unit
6
High pressure pumps
3
Hand pump (example)
Location of hand pump,
(see
page
56)
.
7
Fuel pump
4
Injection nozzles
8
Engine control unit
54
56
Table of Contents
Table of Contents
5
Safety and Liability Information
8
Conventions
8
Vehicle Identification
9
Section 1
11
Quick Guide
11
Instrument Panel
13
Overview
13
Reservoir Pressure Gauge for Brake Circuit 1 or 2
14
Gear Indicator
15
Fuel/Adblue ® Level Gauge
16
Standard Onboard Computer
18
Plus Onboard Computer
22
Display Messages
29
STOP Lamp
31
Symbol and Text Messages
32
Display Messages with Yellow Status Indicator
32
Display Messages with Red Status Indicator
38
System Abbreviations
44
Indicator Lamps
45
Warning Buzzer
48
Oil Level in Engine
50
Calling up the Engine Oil Level on the Display
50
Topping up the Engine Oil
51
Oil Level in Automatic Transmission
52
Checking the Transmission Oil Level
52
Fuel System
55
Overview of Fuel System
55
Fuel System/Adblue
56
Fuel Tank
56
Hand Pump (Location)
58
Hand Pump
58
Checking the Fuel System
59
Bleeding/Dewatering the Fuel System
59
Electrical System
61
Overview of Electrical System
61
EMERGENCY off Switch
62
Jump Starting
63
Batteries
64
Fuses
66
Transmission
70
Overview of Transmissions
70
Manual Gearshift System
71
Automatic Transmission
73
Telligent ® Automatic Gearshift System
75
Teach-In Process (Vehicles with Telligent ® Automatic Gearshift System)
77
Teach-In Process for Telligent ® Automatic Gearshift System
77
Teach-In Errors
79
Emergency Shift (Live PTO)
80
Brake System
80
General
80
Emergency Shift of Power Take-Off (Live PTO)
80
Frequent-Stop Brake
81
Hill Holder
82
Overview of Compressed Air Reservoirs
83
Filling the Compressed Air System from an External Source
83
Releasing the Spring-Loaded Parking Brake
84
Releasing Pneumatically
84
Releasing Mechanically
85
Telligent® Level Control
88
Diagram of Telligent Level Control
88
General
89
Level Control Operating Unit
89
Raising/Lowering the Chassis Frame
90
Filling the Air Suspension System from an External Source
92
Tilting the Cab
93
Before Tilting
93
Mechanical
93
Mechanical/Hydraulic
95
Engine
97
Starting/Stopping the Engine with the Cab Tilted
97
Starting and Stopping the Engine with the Cab Tilted
97
Tow-Starting
99
General
99
Preparations for Tow-Starting
99
Tow-Starting Vehicles with Manual Gearshift System
100
Vehicles with Telligent ® Automatic Gearshift System
101
Section 2
102
Quick Guide
102
Towing
103
General
103
Hazard Information
103
General Rules for Towing
104
Propeller Shaft Removal
104
Electrical Circuits
105
Deactivating Acceleration Skid Control (ASR)
105
Switching Transfer Case to Road Position
105
Air Brake System
106
Maintenance Flap/Cover
106
Connecting an External Compressed Air Source
107
Stopped Engine, Transmission And/Or Axle Damage
109
Notes on Stopped Engine, Transmission And/Or Axle Damage
109
Front Axle Damage
109
Rear Axle Damage
109
Stopped Engine
109
Transmission/Transfer Case Damage
109
Ascertaining the Damage Location on a Blocked Drive Train
110
Drive Shafts
110
Removing the Rear Axle Drive Shafts
111
Preparations for Towing
113
Tow Bar
113
Towing in Raised Position
113
Overview of Towing Options
114
Raising by the Wheels
115
Raising by the Front Axle
116
Raising by the Leaf Springs (Construction Site Vehicles Only)
117
Raising at the Rear
118
Raising the Vehicle at the Rear Crossmember
119
